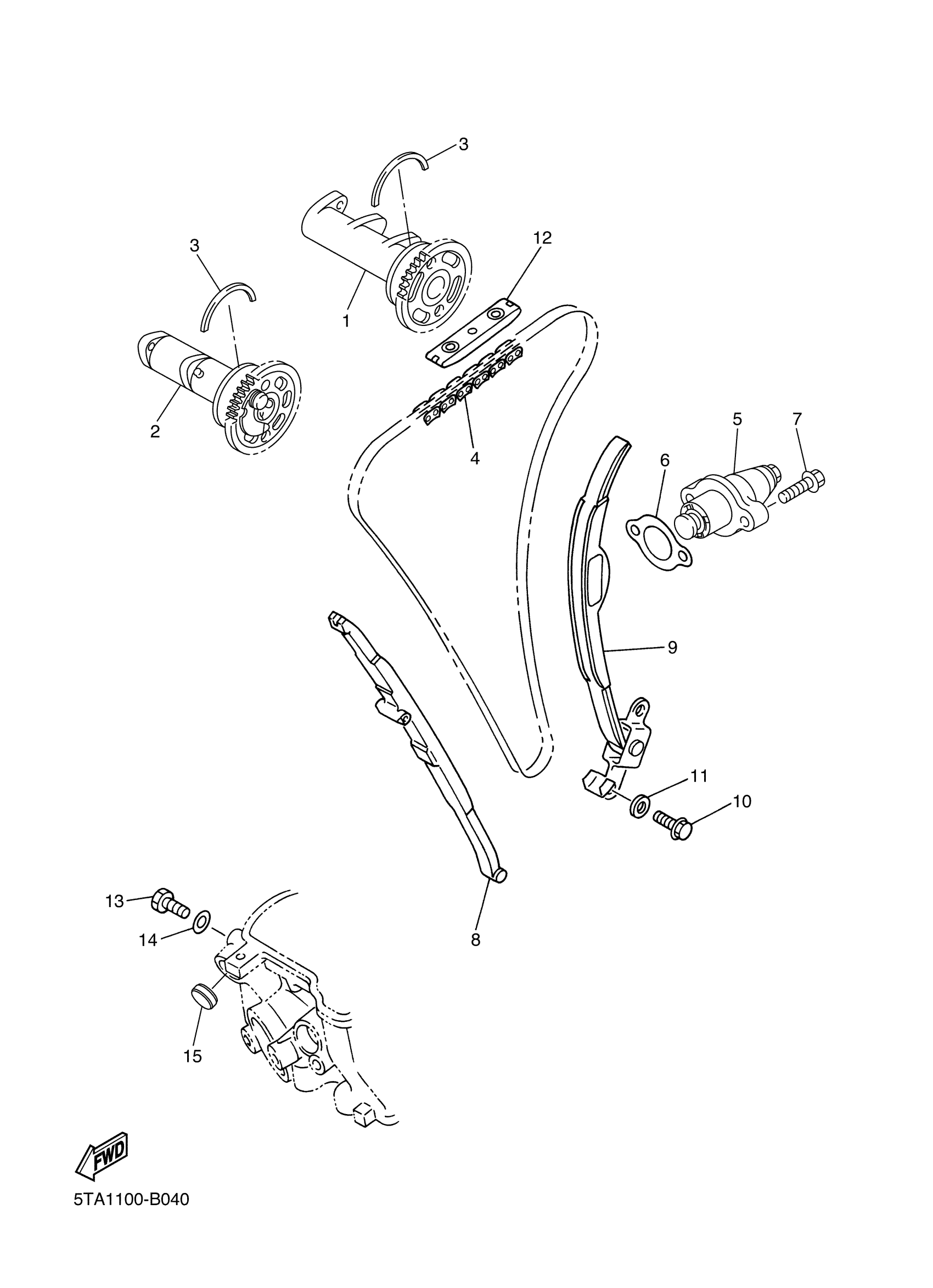

Yamaha WR450FR (WR450F) 5TJ1 2003 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5TA-12170-10-00

$304.99

2

CAMSHAFT ASSY 2

5TJ-12180-20-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

CHAIN

94591-57118-00

$35.99

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$135.99

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

7

BOLT, SMALL FLANGE

95027-06025-00

$4.16

8

DAMPER, CHAIN 1

5TA-12251-02-00

$53.99

9

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

10

BOLT, HEXAGON

97017-06016-00

$8.49

11

WASHER(6TA)

92907-06600-00

$2.72

12

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

13

BOLT (583 TACHOMETER)

90109-06418-00

$9.49

14

GASKET 256113960000

90430-06014-00

Unavailable

15

PLUG (517)

90338-18064-00

$8.49
