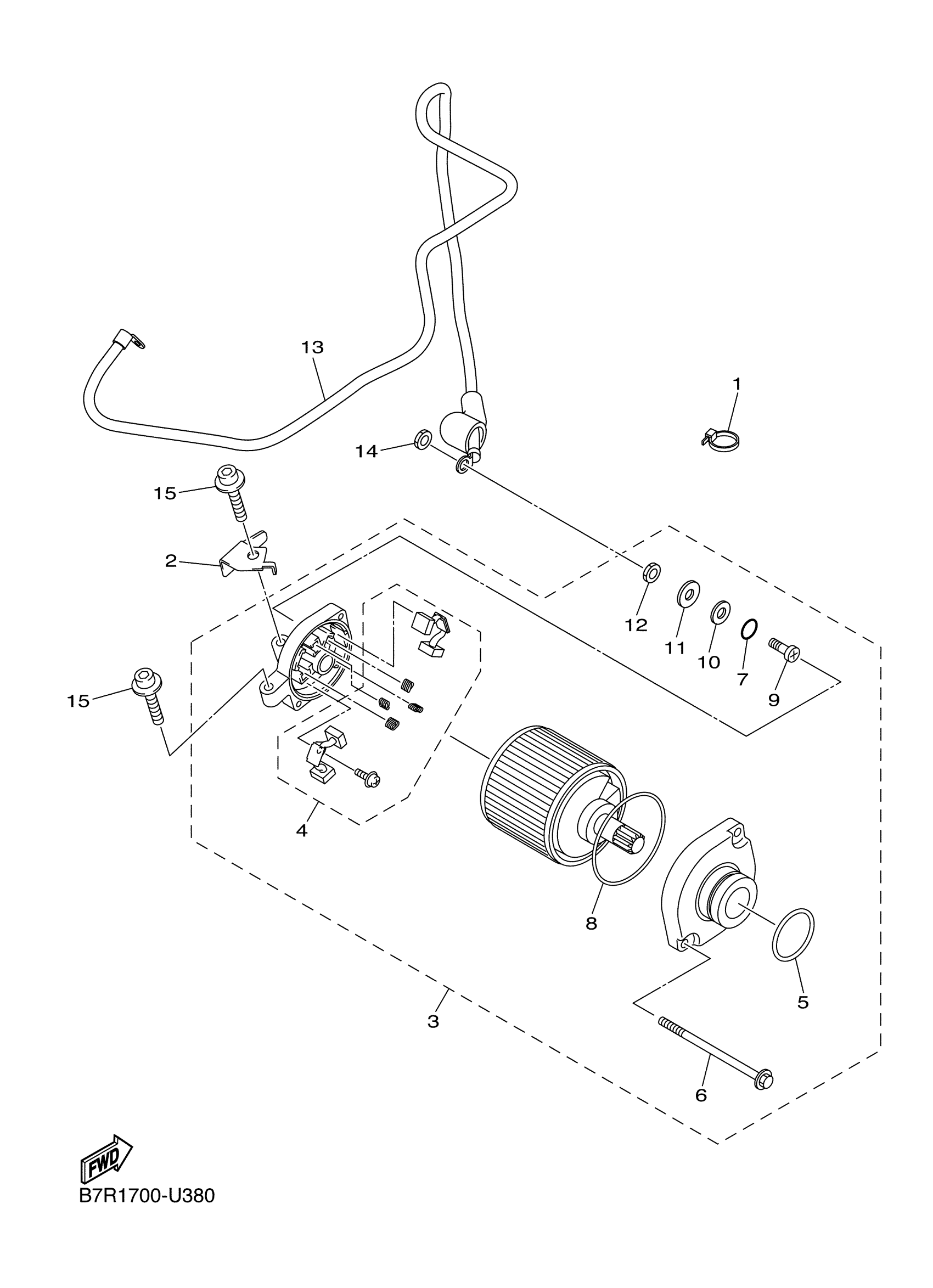

Yamaha WR450FL (WR450F) B7R7 2020 STARTING MOTOR Diagram

#

Description
Price

1

CLAMP

90465-10098-00

Unavailable

2

COVER

B3J-15413-00-00

Unavailable

3

MOTOR ASSY

B3J-81890-00-00

$364.99

4

BRUSH SET

2CR-81801-10-00

Unavailable

5

O-RING(1RL)

93210-25711-00

$7.49

6

SCREW

BR9-81846-00-00

Unavailable

7

O-RING 1

BR9-8182L-00-00

Unavailable

8

GASKET

BR9-81861-00-00

Unavailable

9

SCREW 2

2CR-81828-10-00

$6.99

10

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

11

WASHER

1D7-81835-00-00

$2.29

12

NUT(650)

95380-06700-00

$8.49

13

CORD COMP.

B7R-8183G-00-00

Unavailable

14

NUT(650)

95380-06700-00

$8.49

15

BOLT, HEXAGON SOCKET HEAD

90110-06349-00

$3.61
