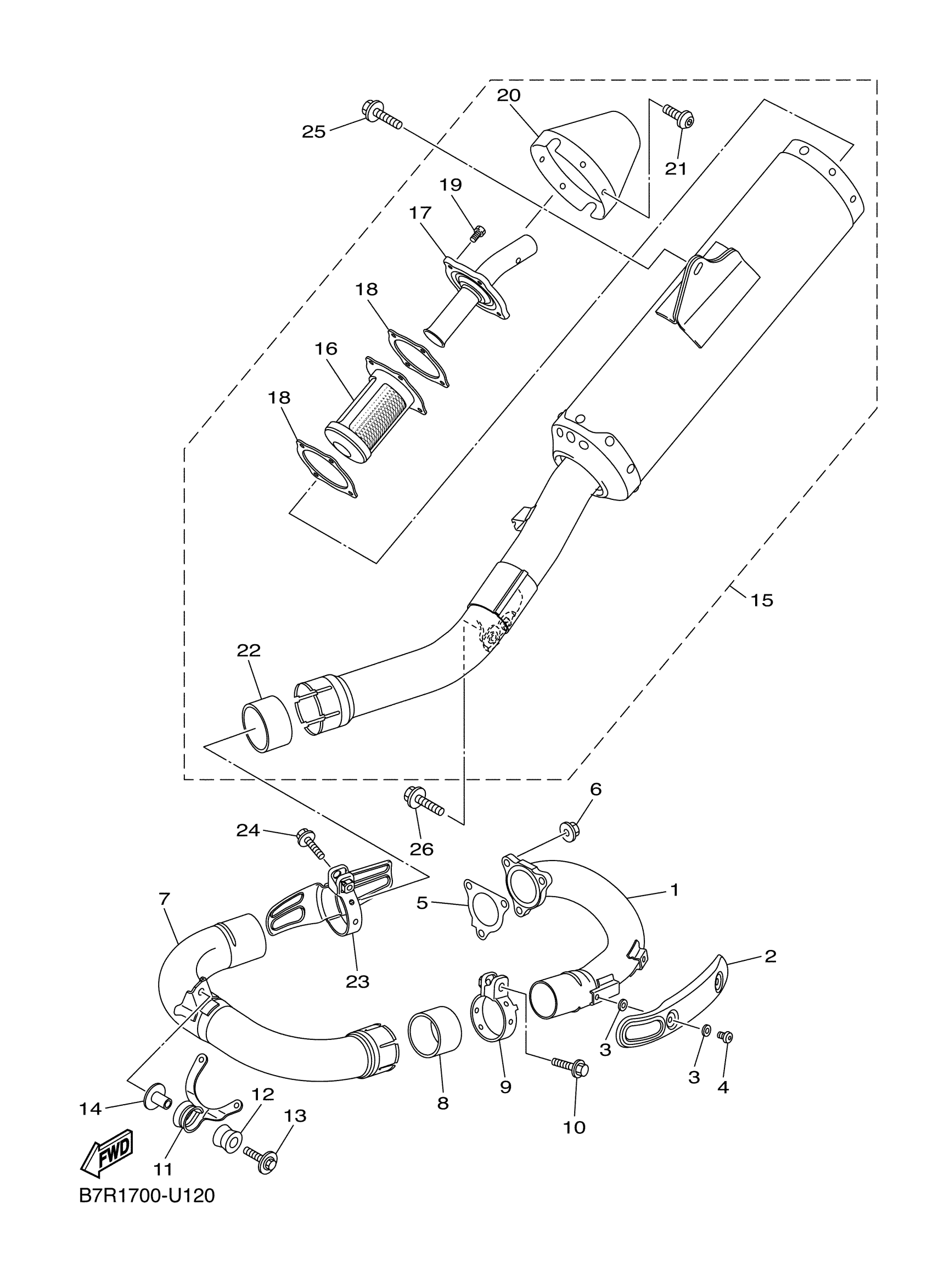

Yamaha WR450FL (WR450F) B7R7 2020 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BR9-14611-00-00

$201.99

2

PROTECTOR, EXHAUST PIPE

1SL-14628-00-00

$39.99

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(2TV)

98980-06008-00

$3.19

5

GASKET, EXHAUST PIPE

33D-14613-00-00

$7.99

6

NUT, FLANGE(7NB)

95780-06500-00

$2.60

7

PIPE, EXHAUST 2

BR9-14621-00-00

$237.99

8

GASKET, SILENCER

5PX-14755-00-00

$29.99

9

BAND, SILENCER

1SM-14788-00-00

$20.99

10

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

11

STAY, EXHAUST PIPE 1

BR9-14639-00-00

$21.99

12

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

13

BOLT, WITH WASHER

90119-08174-00

$5.60

14

COLLAR

90387-08081-00

$8.49

15

MUFFLER COMP.

B7R-14701-00-00

Unavailable

16

SPARK ARRESTER ASSY

5TJ-14780-00-00

Unavailable

17

PIPE, TAIL

5TJ-14784-00-00

Unavailable

18

GASKET, EXHAUST PIPE

5TJ-14623-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05041-00

Unavailable

20

CAP

5TJ-14799-00-00

Unavailable

21

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

22

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

23

BAND, MUFFLER

BR9-14715-00-00

Unavailable

24

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

25

BOLT, WITH WASHER

90119-08170-00

Unavailable

26

BOLT, WITH WASHER

90119-08178-00

Unavailable
