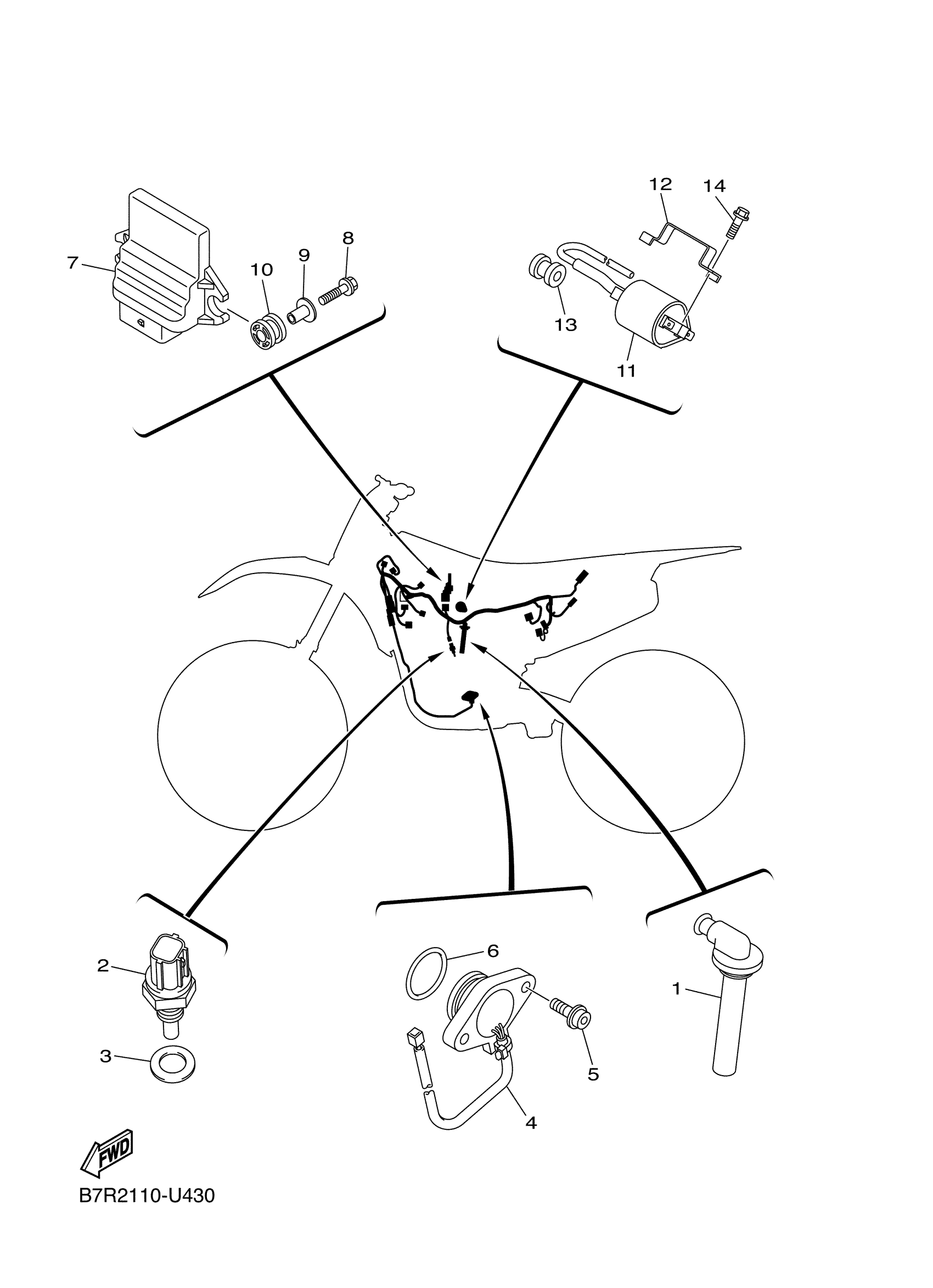

Yamaha WR450FL (WR450F) B7R7 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

33D-82370-00-00

$111.99

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

GASKET

90430-10004-00

$7.49

4

NEUTRAL SWITCH ASSY

B11-82540-01-00

$60.99

5

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

6

O-RING

93210-21001-00

$5.60

7

ENGINE CONTROL UNIT ASSY

B7R-8591A-50-00

Unavailable

8

BOLT, FLANGE

90105-05005-00

$1.20

9

COLLAR

90387-05048-00

$5.60

10

GROMMET

90480-13029-00

$5.60

11

IGNITION COIL ASSY

BR9-82310-03-00

$53.99

12

CORE, SIDE

BR9-8231U-00-00

$21.99

13

GROMMET

90480-11015-00

$3.66

14

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60
