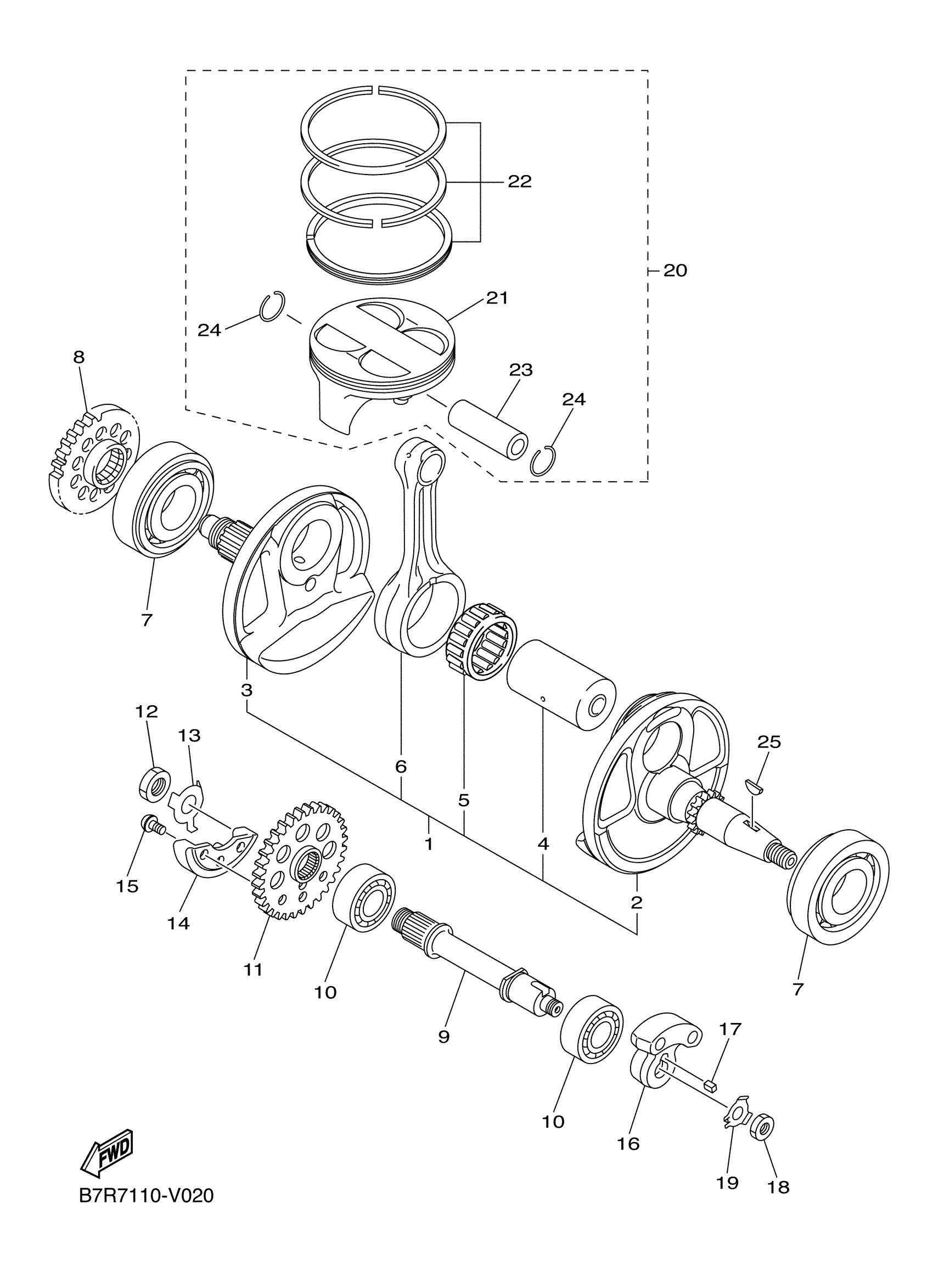

Yamaha WR450FL (WR450F) B7R7 2020 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

B3J-11400-00-00

Unavailable

2

CRANK 1

BR9-11412-10-00

Unavailable

3

CRANK 2

BR9-11422-00-00

Unavailable

4

PIN, CRANK 1

5TG-11681-01-00

$83.99

5

BEARING

93310-63499-00

$60.99

6

ROD, CONNECTING

33D-11651-03-00

$129.99

7

BEARING

93306-30633-00

$101.99

8

GEAR, DRIVE

2S2-11536-00-00

$85.99

9

SHAFT 1

BR9-11455-00-00

$179.99

10

BEARING(37F)

93306-20335-00

$35.99

11

GEAR, BALANCE WEIGHT

2S2-11531-10-00

$171.99

12

NUT, HEXAGON

90170-14171-00

$9.49

13

WASHER, LOCK(4GA)

90215-14287-00

$5.60

14

WEIGHT 1

33D-11454-00-00

Unavailable

15

SCREW

90149-06193-00

$2.17

16

WEIGHT 2

33D-11464-00-00

Unavailable

17

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

18

NUT

90170-10013-00

Unavailable

19

WASHER, LOCK

90215-10009-00

Unavailable

20

PISTON ASSY

BR9-116A0-00-00

Unavailable

21

PISTON (STD)

BR9-11631-00-00

Unavailable

22

PISTON RING SET (STD)

33D-11603-00-00

Unavailable

23

PIN, PISTON

BR9-11633-10-00

Unavailable

24

CIRCLIP (2F1)

93450-19052-00

Unavailable

25

KEY, WOODRUFF

90280-03006-00

Unavailable
