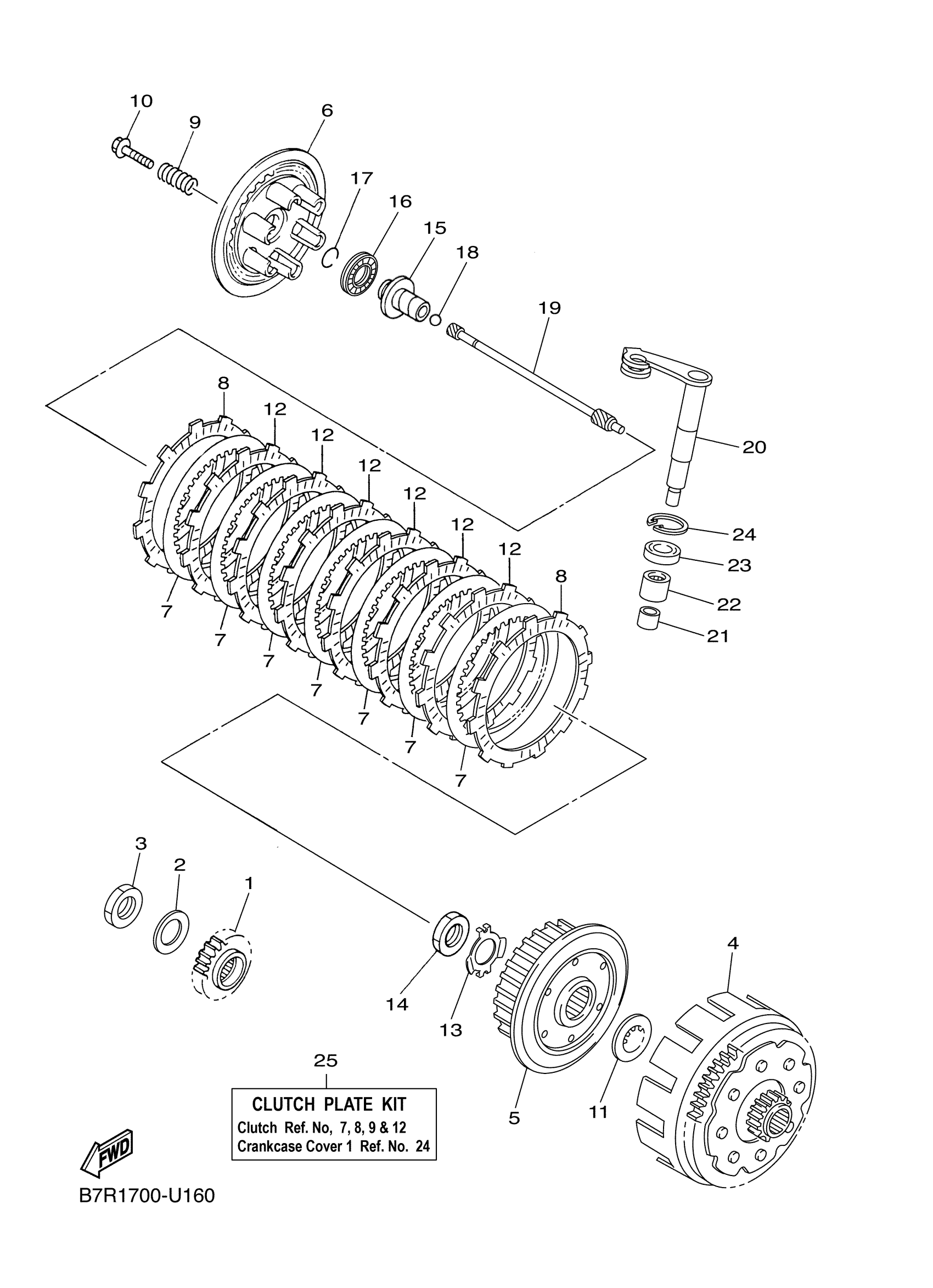

Yamaha WR450FL (WR450F) B7R7 2020 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER, CONICAL SPRING

90208-20007-00

$7.49

3

NUT, HEXAGON (8F3)

90170-20211-00

$4.72

4

PRIMARY DRIVEN GEAR COMP.

BR9-16150-00-00

$534.99

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

BR9-16351-00-00

$75.99

7

PLATE, CLUTCH 1

BR9-16324-10-00

$10.49

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION

90501-240A5-00

$8.49

10

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

11

PLATE, THRUST 1

5XD-16154-00-00

$15.49

12

PLATE, FRICTION

5VY-16321-00-00

$31.99

13

WASHER, LOCK

90215-20005-00

$8.49

14

NUT (34L)

90170-20327-00

$18.99

15

ROD, PUSH 1

BR9-16356-00-00

$74.99

16

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

17

CIRCLIP (4G0)

93440-10085-00

Unavailable

18

BALL (498)

93511-32027-00

Unavailable

19

ROD, PUSH 2

1SL-16357-10-00

Unavailable

20

PUSH LEVER COMP.

BR9-16381-00-00

Unavailable

21

BEARING

93317-106B4-00

Unavailable

22

BEARING

93317-11096-00

Unavailable

23

OIL SEAL

93102-10008-00

Unavailable

24

CIRCLIP

99009-18500-00

Unavailable

25

CLUTCH PLATE KIT

B3J-W001G-00-00

Unavailable
