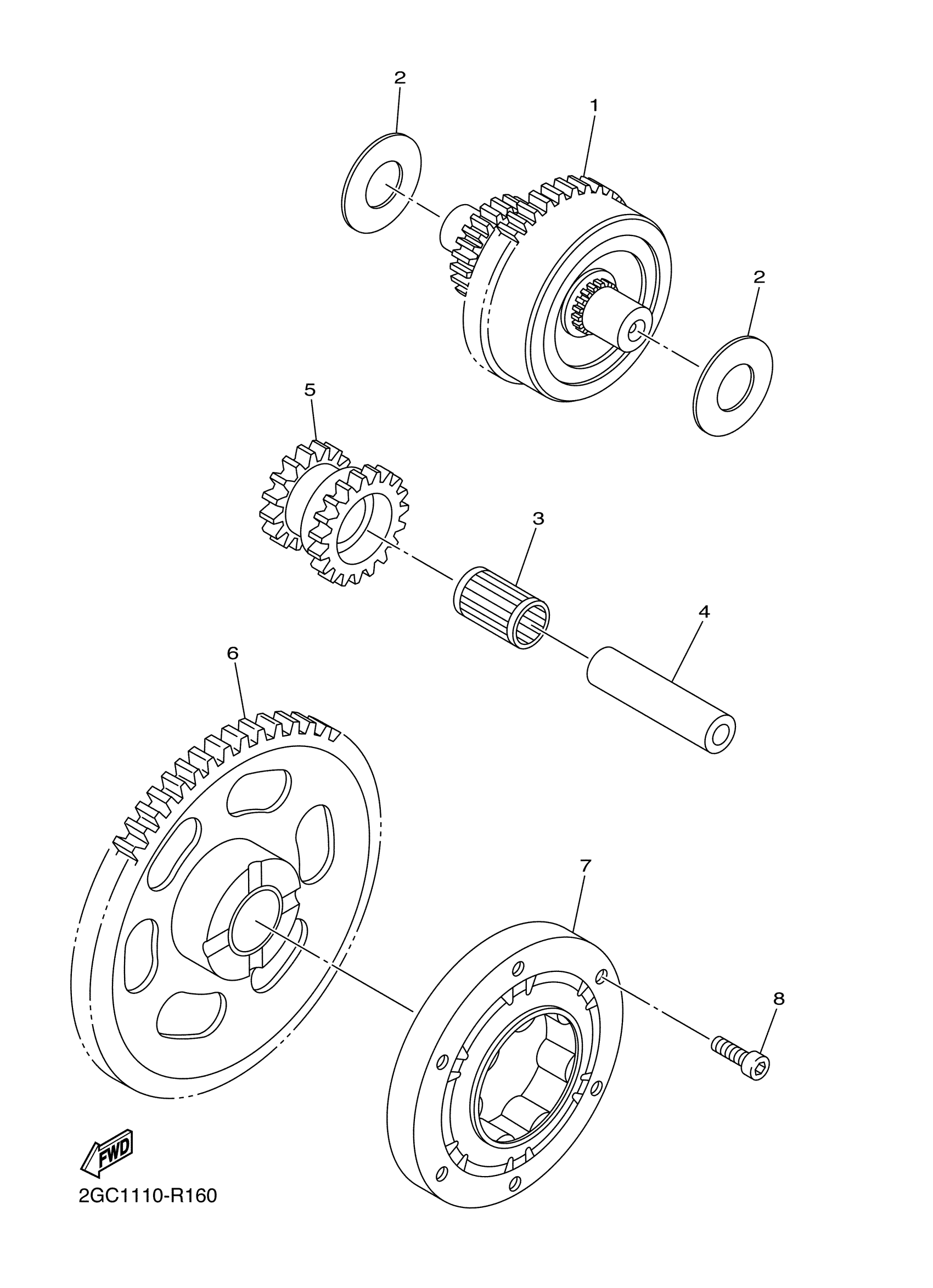

Yamaha WR450FG (WR450F) 2GC1 2016 STARTER CLUTCH Diagram

#

Description

Price

1

DAMPER ASSY

5TJ-15560-20-00

$362.18

2

WASHER, PLATE (8M6)

90201-105A8-00

$4.54

3

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$28.89

4

SHAFT 1

4GY-15521-00-00

$17.83

5

GEAR, IDLER 2

2GC-15517-00-00

Unavailable

6

GEAR 3

2GB-15515-00-00

Unavailable

7

STARTER ONE-WAY ASSY

5TJ-15590-00-00

$181.54

8

BOLT (33M)

91312-06014-00

$4.43
