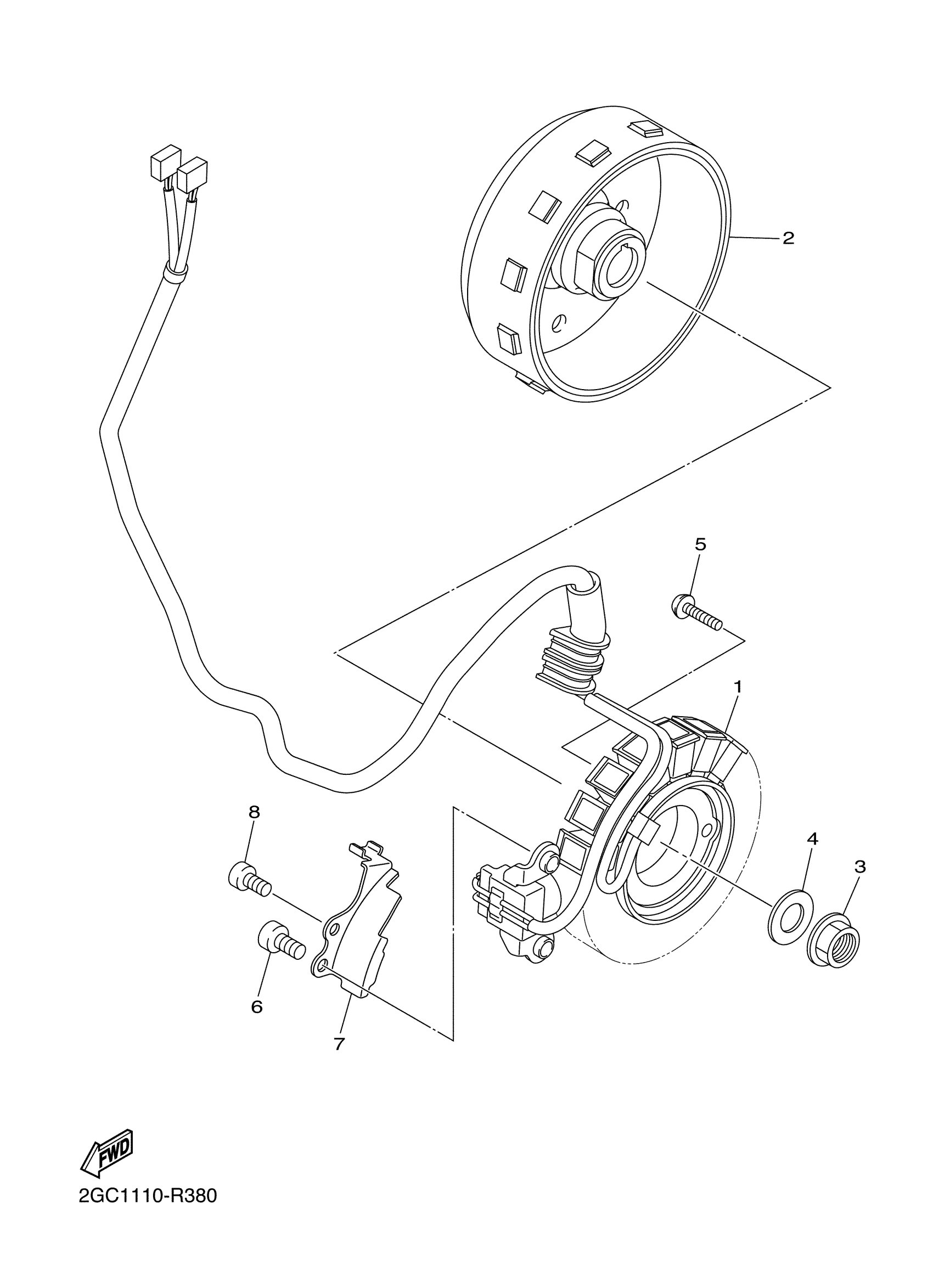

Yamaha WR450FG (WR450F) 2GC1 2016 GENERATOR Diagram

#

Description

Price

1

STATOR ASSY

2GB-81410-01-00

$278.25

2

ROTOR ASSY

2GC-81450-00-00

$357.78

3

NUT(3EF)

90179-12657-00

$4.96

4

WASHER, PLATE (5N6)

90201-127E1-00

$3.52

5

SCREW

90149-05024-00

$5.75

6

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

Unavailable

7

CLAMP 1

2GC-81528-00-00

Unavailable

8

BOLT(47X)

91312-05012-00

$2.39
