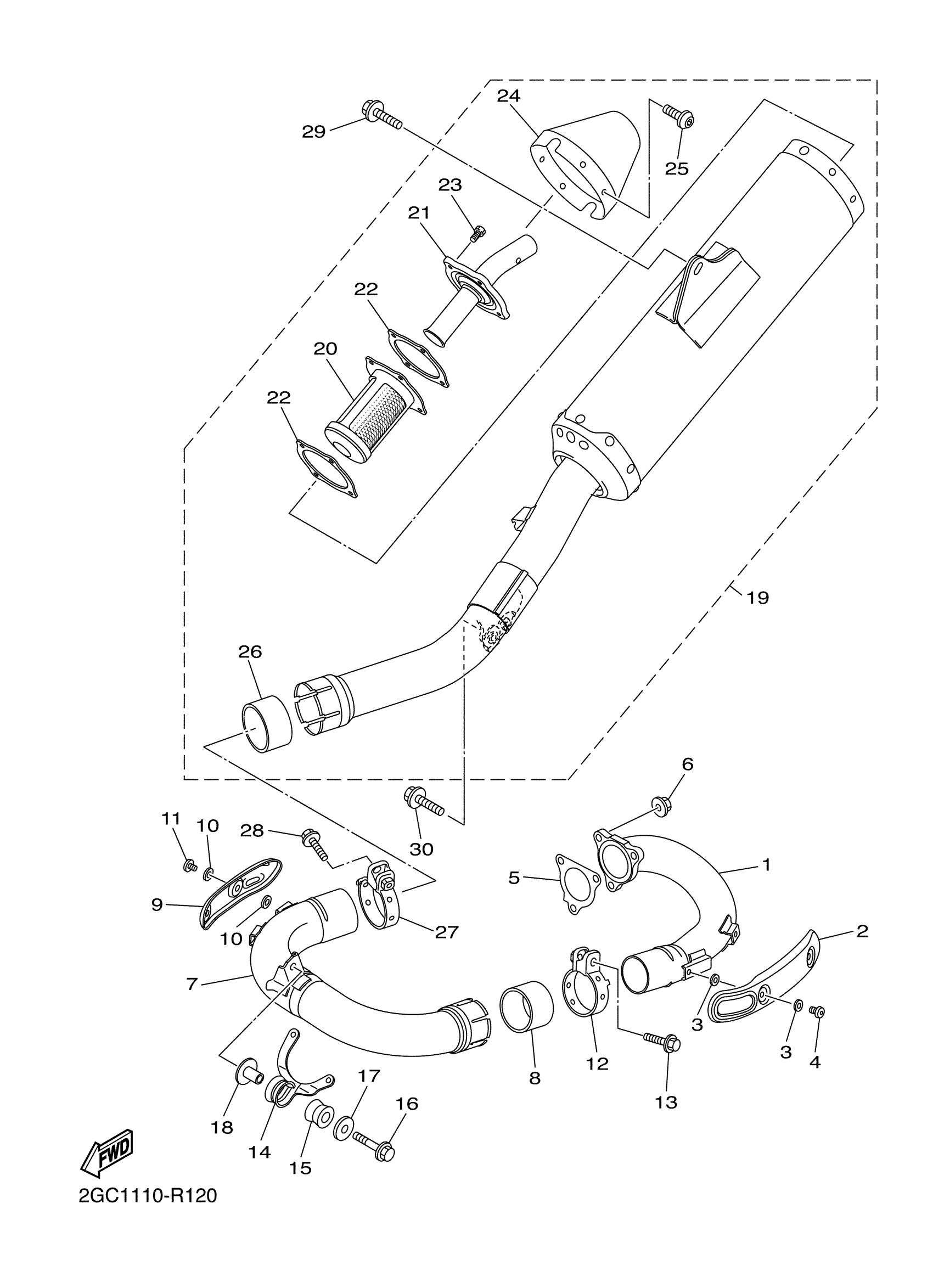

Yamaha WR450FG (WR450F) 2GC1 2016 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST 1
1SL-14611-00-00
Unavailable
16
BOLT, FLANGE
90105-08137-00
Unavailable
17
WASHER, PLATE
90201-08061-00
Unavailable
18
COLLAR
90387-08081-00
Unavailable
19
MUFFLER COMP.
2GC-14701-00-00
Unavailable
20
SPARK ARRESTER ASSY
5TJ-14780-00-00
Unavailable
21
PIPE, TAIL
5TJ-14784-00-00
Unavailable
22
GASKET, EXHAUST PIPE
5TJ-14623-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-05041-00
Unavailable
24
CAP
5TJ-14799-00-00
Unavailable
25
BOLT, BUTTON HEAD
92012-05008-00
Unavailable
26
GASKET, MUFFLER
1SL-14714-00-00
Unavailable
27
BAND, MUFFLER
1SL-14715-00-00
Unavailable
29
BOLT, FLANGE
90105-08230-00
Unavailable
30
BOLT, WITH WASHER
90119-08170-00
Unavailable
