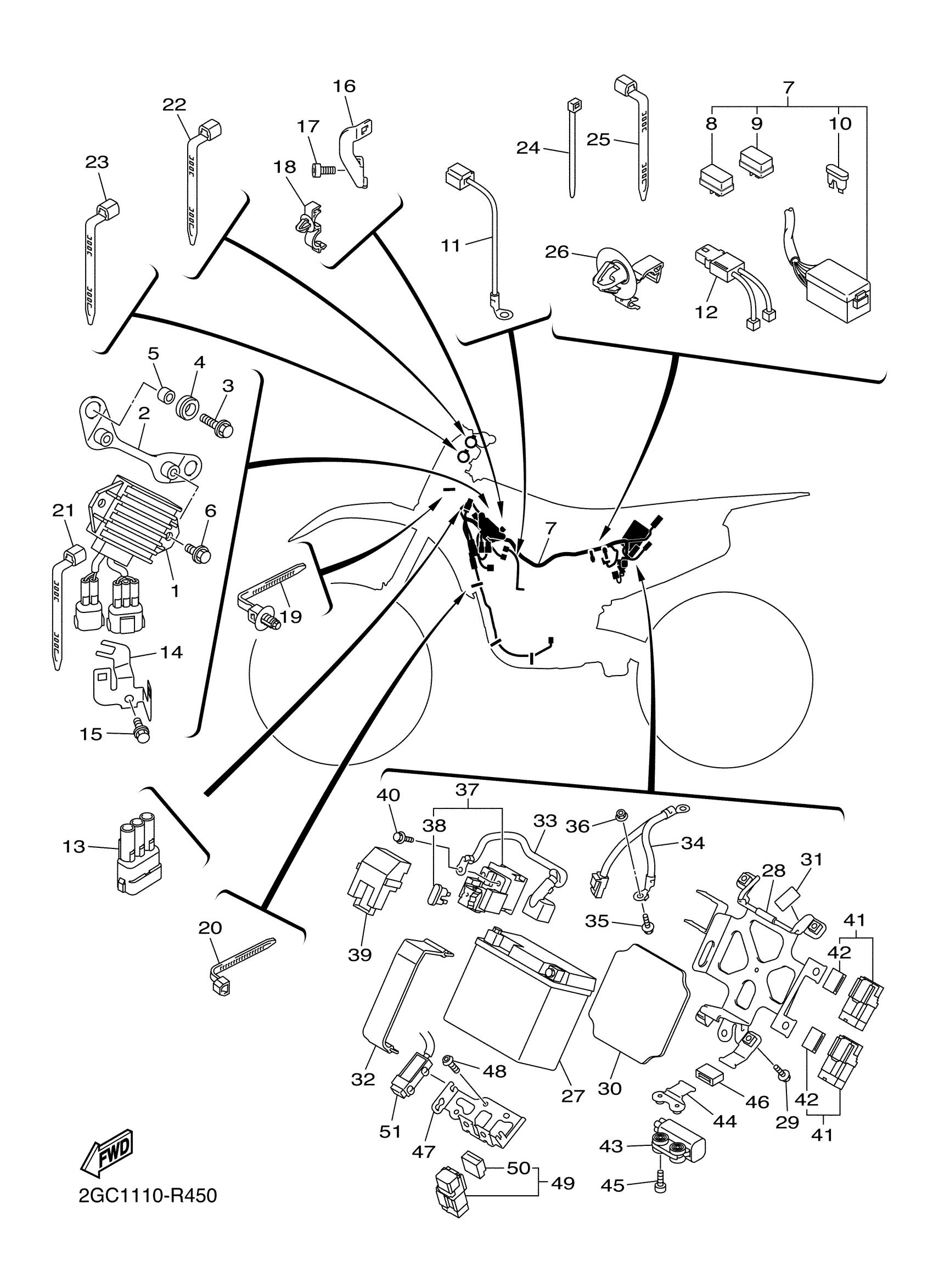

Yamaha WR450FG (WR450F) 2GC1 2016 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULA

2GB-81960-00-00

$161.99

2

BRACKET, REGULATOR

1SL-21287-00-00

Unavailable

3

BOLT, FLANGE

90105-06203-00

$2.17

4

GROMMET

90480-13025-00

$3.28

5

COLLAR (8H6)

90387-07573-00

$9.49

6

BOLT, FLANGE

90105-06064-00

Unavailable

7

WIRE HARNESS ASSY

2GC-82590-00-00

Unavailable

8

DIODE ASSY

3WP-81980-00-00

$22.99

9

DIODE ASSY

4WA-81980-00-00

$29.99

10

FUSE (5A)

67F-82151-20-00

Unavailable

11

WIRE, SUB LEAD

2GC-82583-00-00

Unavailable

12

WIRE, SUB LEAD

1SL-82309-00-00

$31.99

13

CONNECTOR

33D-82378-00-00

$17.49

14

PLATE

2GC-82388-00-00

Unavailable

15

BOLT, FLANGE

90105-06110-00

$8.49

16

PLATE 2

1SL-82389-00-00

Unavailable

17

BOLT

91380-06012-00

Unavailable

18

CLAMP

90464-17003-00

Unavailable

19

CLAMP

90464-30009-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

CLAMP(4FM)

90464-15195-00

Unavailable

22

CLAMP

90464-13077-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable

24

BAND

1UA-82591-00-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

CLAMP

90464-08010-00

Unavailable

27

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

28

BRACKET, BATTERY

2GB-82128-00-00

Unavailable

29

BOLT, WITH WASHER

90119-06133-00

Unavailable

30

DAMPER

2GB-82176-00-00

Unavailable

31

PROTECTOR

2GC-21652-00-00

Unavailable

32

BAND, BATTERY

8CY-82131-00-00

Unavailable

33

WIRE, PLUS LEAD

2GC-82115-00-00

Unavailable

34

WIRE, MINUS LEAD

2GC-82116-00-00

Unavailable

35

BOLT, FLANGE

90105-06064-00

Unavailable

36

NUT, FLANGE

95702-06500-00

Unavailable

37

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

38

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

39

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

40

BOLT, FLANGE

95022-06008-00

Unavailable

41

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

42

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

43

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

44

BRACKET

2GC-85542-00-00

Unavailable

45

BOLT

91312-04020-00

Unavailable

46

DAMPER

2GB-83513-00-00

Unavailable

47

PLATE, HOLDER

2GB-8252H-00-00

Unavailable

48

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

49

RELAY ASSY

1TP-81950-00-00

Unavailable

50

HOLDER,RELAY

5EA-81952-00-00

Unavailable

51

RESISTOR ASSY

2GB-82718-00-00

Unavailable
