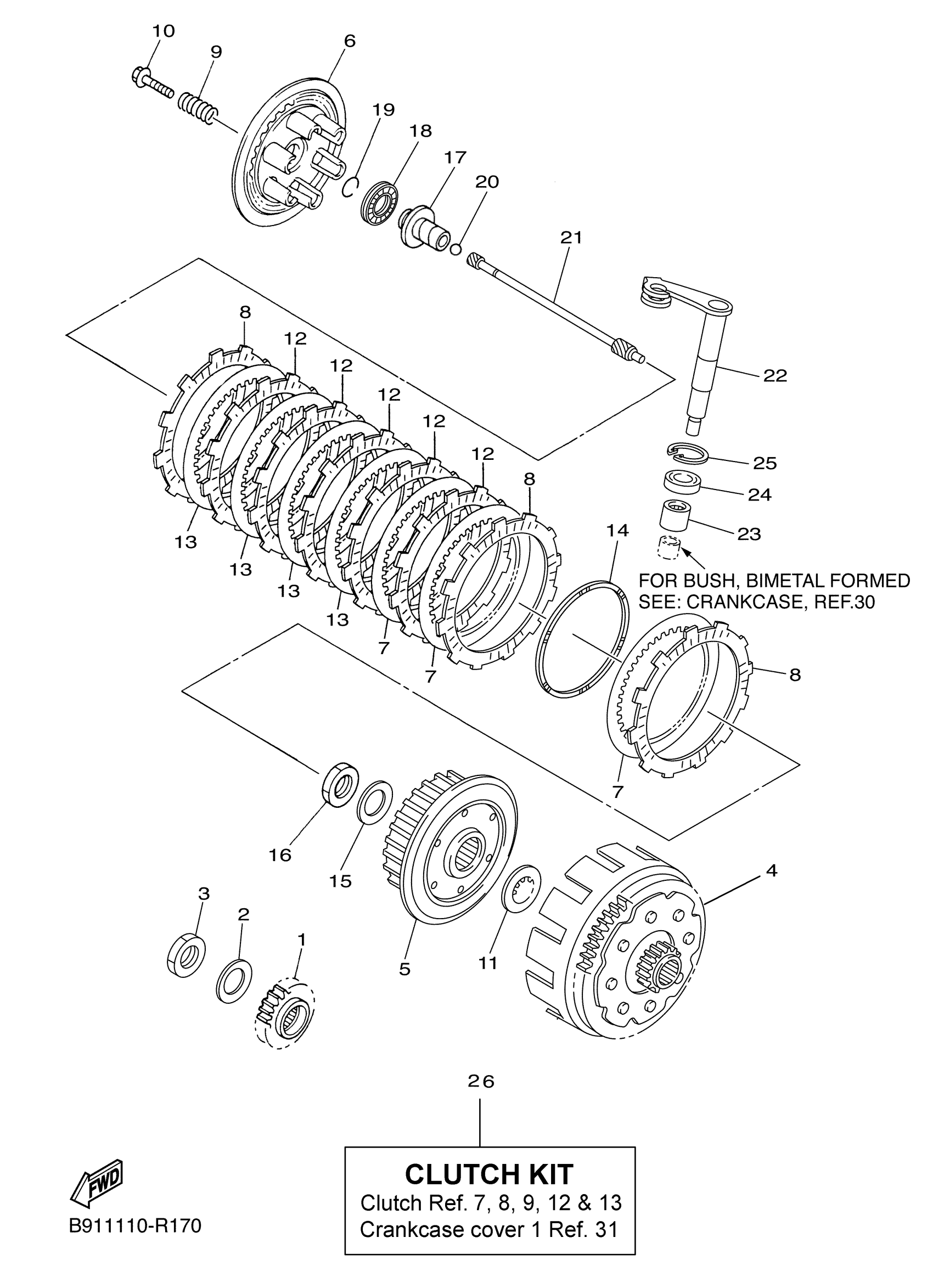

Yamaha WR450FG (WR450F) 2GC1 2016 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER (853)

90208-20008-00

$10.49

3

NUT (3R4)

90170-20255-00

$10.49

4

PRIMARY DRIVEN GEAR COMP.

B11-16150-00-00

Unavailable

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

5JG-16351-00-00

$90.99

7

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

SPRING, COMPRESSION(3GM)

90501-230E4-00

$9.49

10

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

11

PLATE, THRUST 1

5XD-16154-00-00

$15.49

12

PLATE, FRICTION

5VY-16321-00-00

$31.99

13

PLATE, CLUTCH 2

1TA-16325-10-00

$10.99

14

SPRING.,CUSHION

2GC-16383-00-00

$15.49

15

WASHER (853)

90208-20008-00

$10.49

16

NUT (3R4)

90170-20255-00

$10.49

17

ROD, PUSH 1

33D-16356-00-00

Unavailable

18

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

19

CIRCLIP (4G0)

93440-10085-00

Unavailable

20

BALL (498)

93511-32027-00

Unavailable

21

ROD, PUSH 2

1SL-16357-10-00

Unavailable

22

PUSH LEVER COMP.

2GC-16381-10-00

Unavailable

23

BEARING

93317-11096-00

Unavailable

24

OIL SEAL

93102-10008-00

Unavailable

25

CIRCLIP

99009-18500-00

Unavailable

26

CLUTCH PLATE KIT

2GC-W001G-00-00

Unavailable
