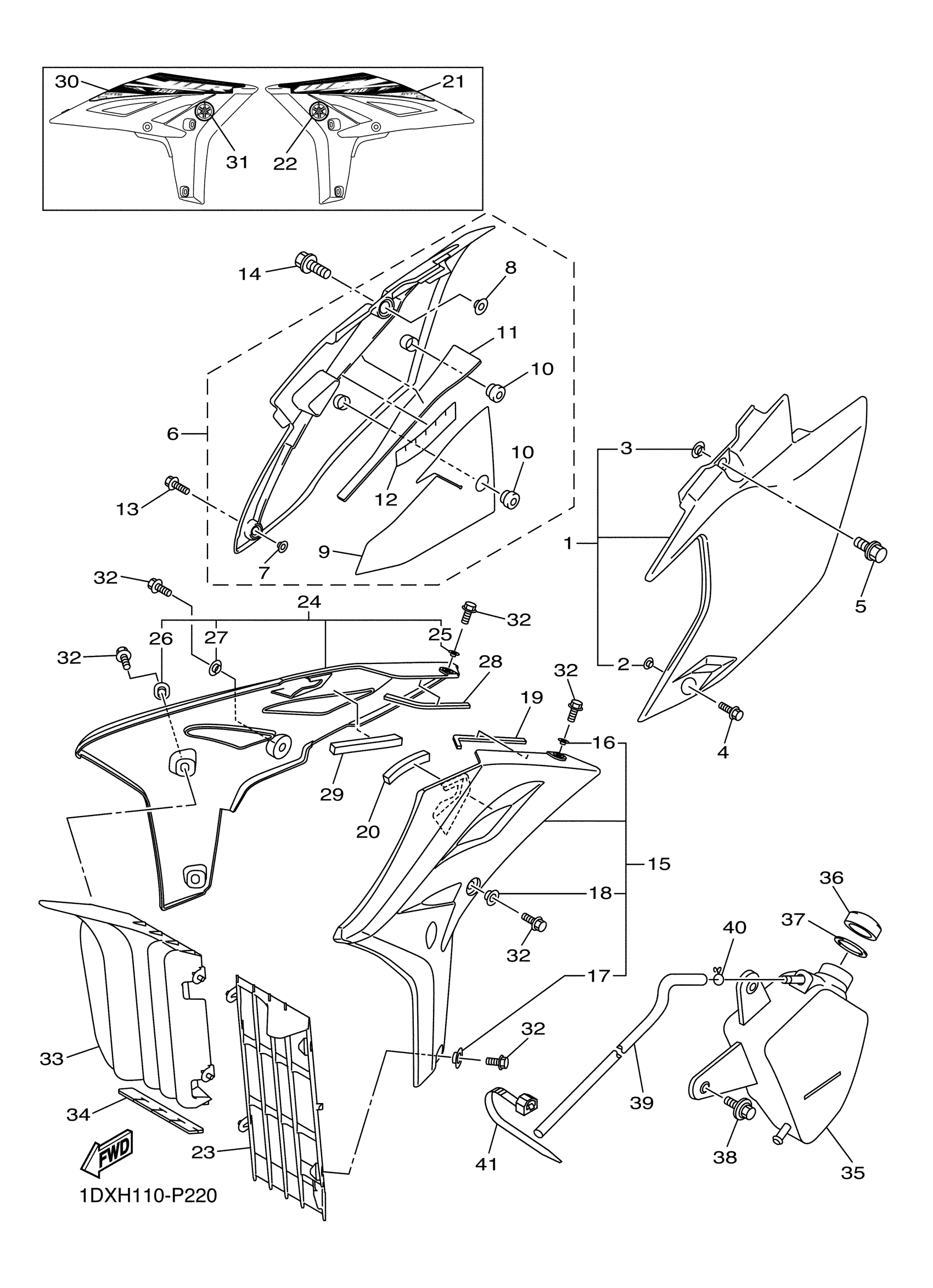

Yamaha WR450FF (WR450F) 1DXH 2015 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

1DX-21710-00-00

Unavailable

2

COLLAR

90387-06009-00

$10.49

3

COLLAR

5BE-21749-00-00

$6.99

4

BOLT, FLANGE

90105-06103-00

$4.88

5

BOLT, WITH WASHER

90119-08095-00

$8.49

6

SIDE COVER ASSY 2

1DX-21720-10-00

$73.99

7

COLLAR

90387-06009-00

$10.49

8

COLLAR

5BE-21749-00-00

$6.99

9

INSULATOR, SIDE COVER

1DX-2174A-00-00

Unavailable

10

GROMMET

1DX-21719-00-00

$18.49

11

INSULATOR 3

1DX-2172S-00-00

Unavailable

12

INSULATOR 4

5UM-2173S-E0-00

$8.99

13

BOLT, FLANGE

90105-06103-00

$4.88

14

BOLT, WITH WASHER

90119-08095-00

$8.49

15

SIDE COVER ASSY 3

17D-21730-D0-00

Unavailable

16

COLLAR

90387-06009-00

$10.49

17

COLLAR

17D-21749-00-00

Unavailable

18

COLLAR

5BE-21749-00-00

$6.99

19

SEAL 3

5RU-28238-00-00

Unavailable

20

DAMPER

32D-84553-00-00

Unavailable

21

GRAPHIC 3

1DX-2174G-20-00

Unavailable

22

TUNING FORK MARK

5FK-2175C-01-00

Unavailable

23

PANEL 1

1DX-2172A-00-00

Unavailable

24

SIDE COVER ASSY 4

17D-21740-D0-00

Unavailable

25

COLLAR

90387-06009-00

$10.49

26

COLLAR

17D-21749-00-00

Unavailable

27

COLLAR

5BE-21749-00-00

$6.99

28

SEAL 3

5RU-28238-00-00

Unavailable

29

DAMPER

32D-84553-00-00

Unavailable

30

GRAPHIC 4

1DX-2174H-20-00

Unavailable

31

TUNING FORK MARK

5FK-2175C-01-00

Unavailable

32

BOLT, FLANGE

90105-06064-00

Unavailable

33

PANEL 1

1DX-2172A-10-00

Unavailable

34

INSULATOR 5

1DX-2174S-00-00

Unavailable

35

TANK ASSY

5UM-21860-E0-00

Unavailable

36

CAP

26H-21875-00-00

Unavailable

37

GASKET

26H-21874-00-00

Unavailable

38

BOLT, WITH WASHER

90119-06146-00

Unavailable

39

HOSE 6

1DX-1244J-00-00

Unavailable

40

CLIP

90467-090A2-00

Unavailable

41

CLAMP(4FM)

90464-15195-00

Unavailable
