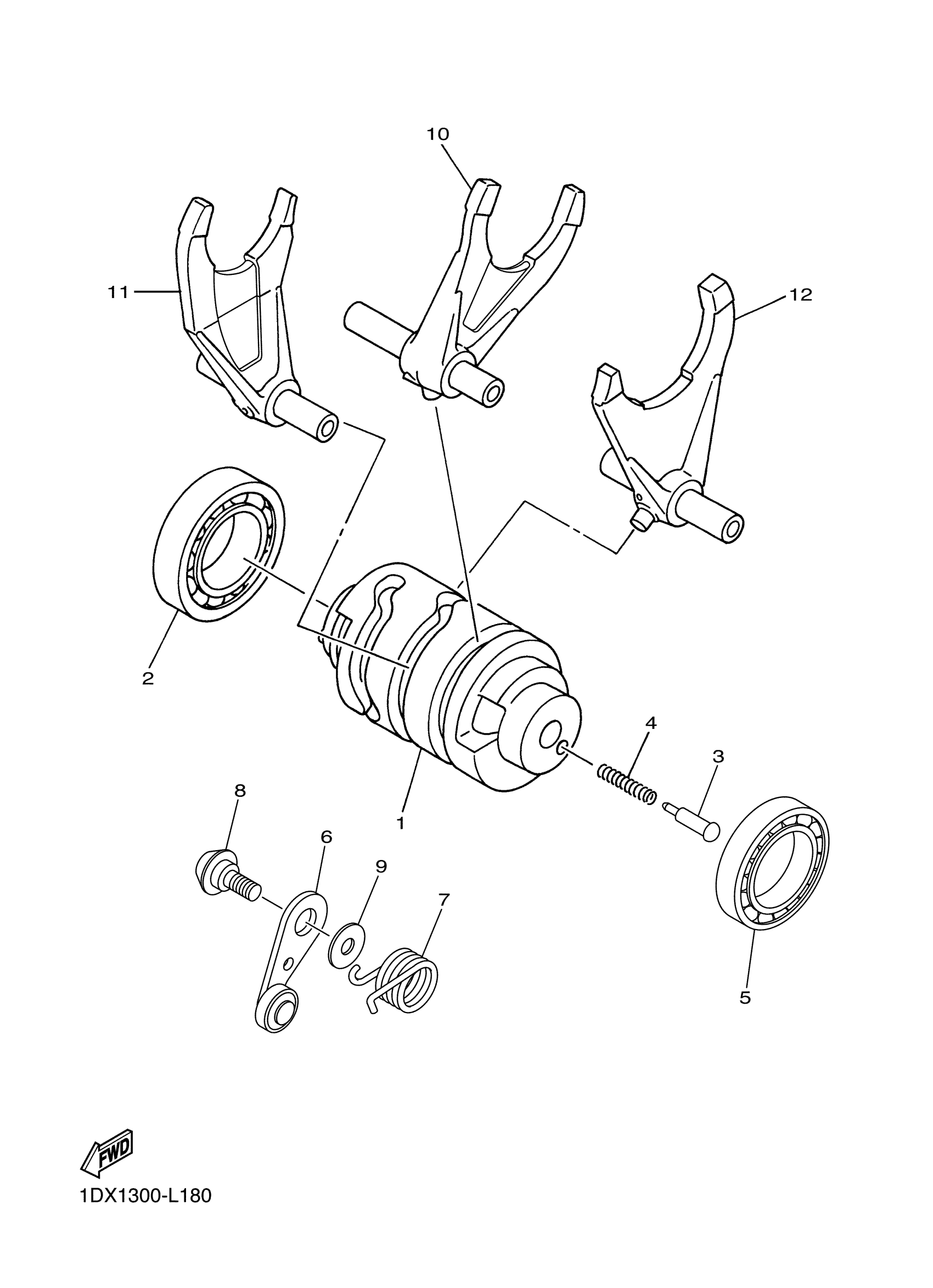

Yamaha WR450FF (WR450F) 1DXH 2015 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5NL-18541-00-00

$232.99

2

BEARING

93306-90509-00

$38.99

3

POINT, NEUTRAL

3D7-18542-00-00

$6.99

4

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

5

BEARING

93306-80502-00

$38.99

6

STOPPER LEVER ASSY

2S2-18140-10-00

$22.99

7

SPRING, TORSION

90508-26021-00

$5.60

8

BOLT

90109-06201-00

$5.60

9

WASHER, PLATE

90201-06013-00

Unavailable

10

FORK, SHIFT 1

34P-18501-00-00

$172.99

11

FORK, SHIFT 2

1DX-18502-00-00

Unavailable

12

FORK, SHIFT 3

34P-18503-00-00

Unavailable
