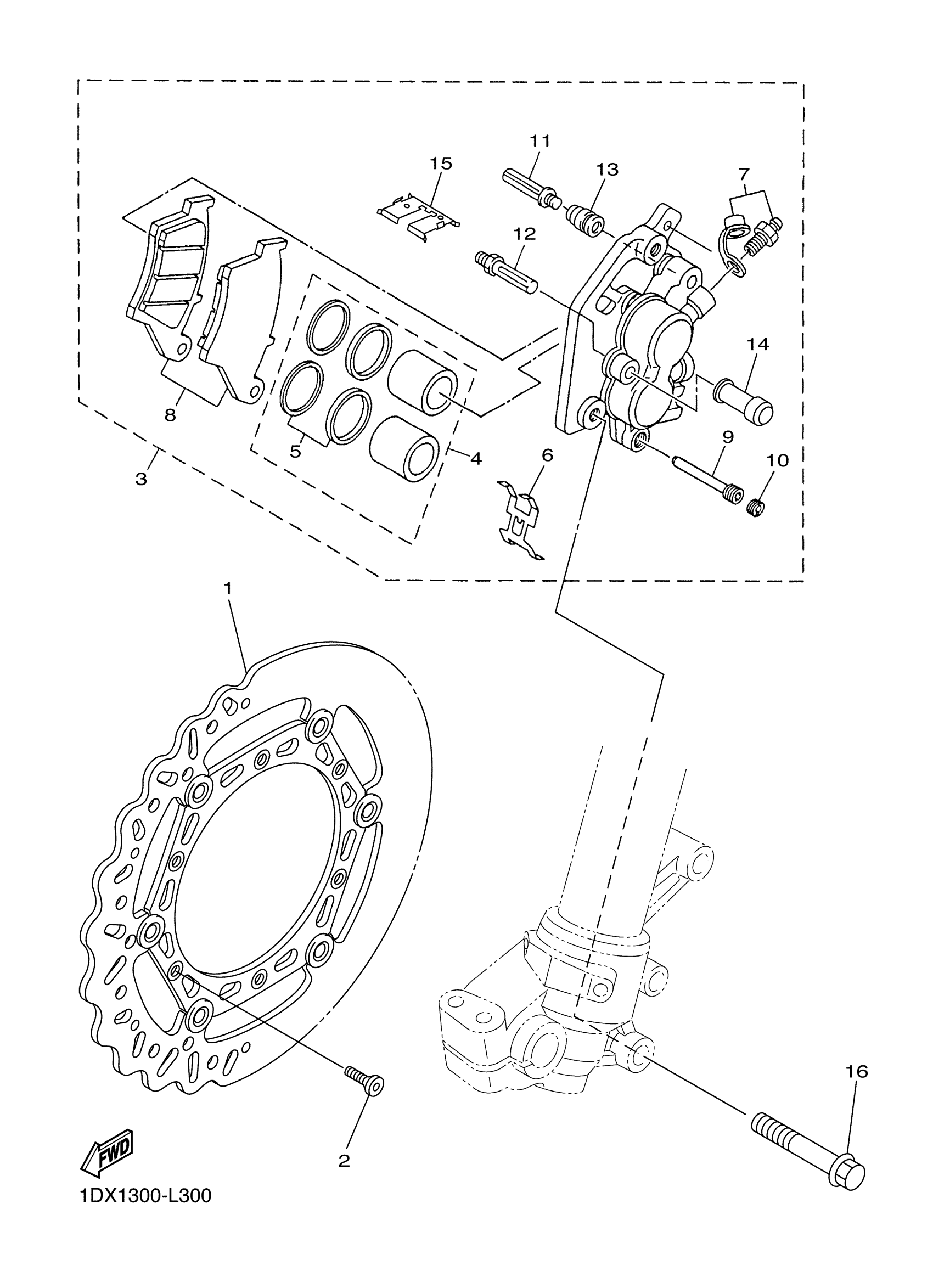

Yamaha WR450FF (WR450F) 1DXH 2015 FRONT BRAKE CALIPER Diagram

Description

Price

DISK BRAKE ASSY

2S2-2581T-70-00

$248.99

SCREW, COUNTERSUNK

90151-06079-00

$3.23

CALIPER ASSY (LEFT)

1C3-2580T-00-00

$450.99

PISTON ASSY, CALIPER

5UN-W0057-00-00

$66.99

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

SUPPORT, PAD

5DH-25919-00-00

$20.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT

5MV-W0045-01-00

$39.99

PIN, PAD

5DH-25933-00-00

$22.99

PLUG

5DH-25916-00-00

$9.99

BOLT

3SP-25926-51-00

$13.49

BOLT

3SP-25914-51-00

$4.58

BOOT, CALIPER

3JD-25917-00-00

$8.99

BOOT 2

1UY-25937-51-00

$14.49

RETAINER, CALIPER

5DH-25849-00-00

$11.99

BOLT, FLANGE

90105-08137-00

Unavailable
