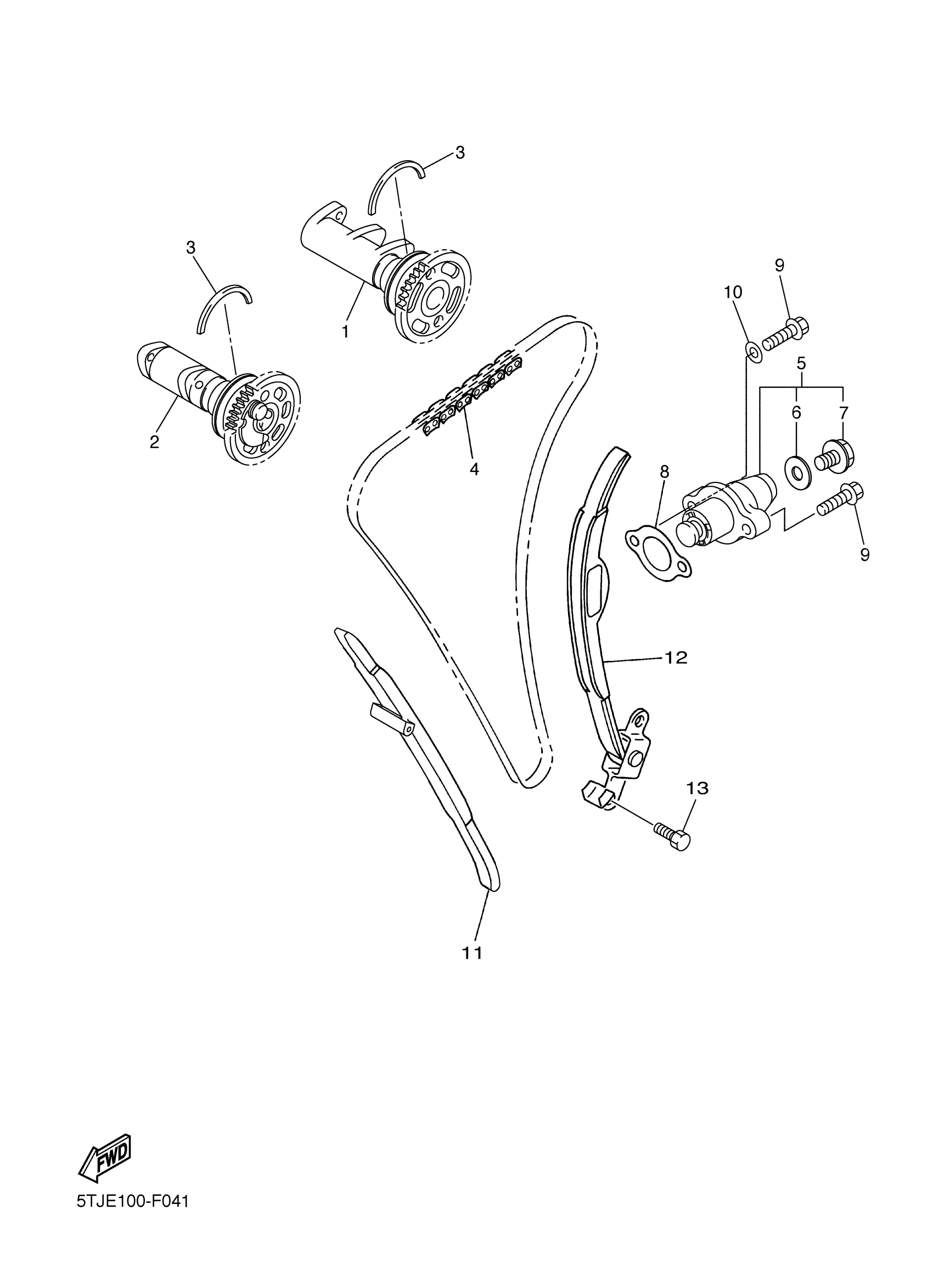

Yamaha WR450FF (WR450F) 1DXH 2015 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5TJ-12170-00-00

$480.99

2

CAMSHAFT ASSY 2

5TJ-12180-40-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

CHAIN

94591-57118-00

$35.99

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$135.99

6

GASKET

5EL-12214-00-00

$7.99

7

BOLT

5EL-12228-00-00

$5.49

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

9

BOLT, FLANGE

95022-06025-00

$3.62

10

GASKET 256113960000

90430-06014-00

Unavailable

11

DAMPER, CHAIN 1

2S2-12251-00-00

$35.99

12

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

13

BOLT, STOPPER

5TJ-12299-00-00

$42.99
