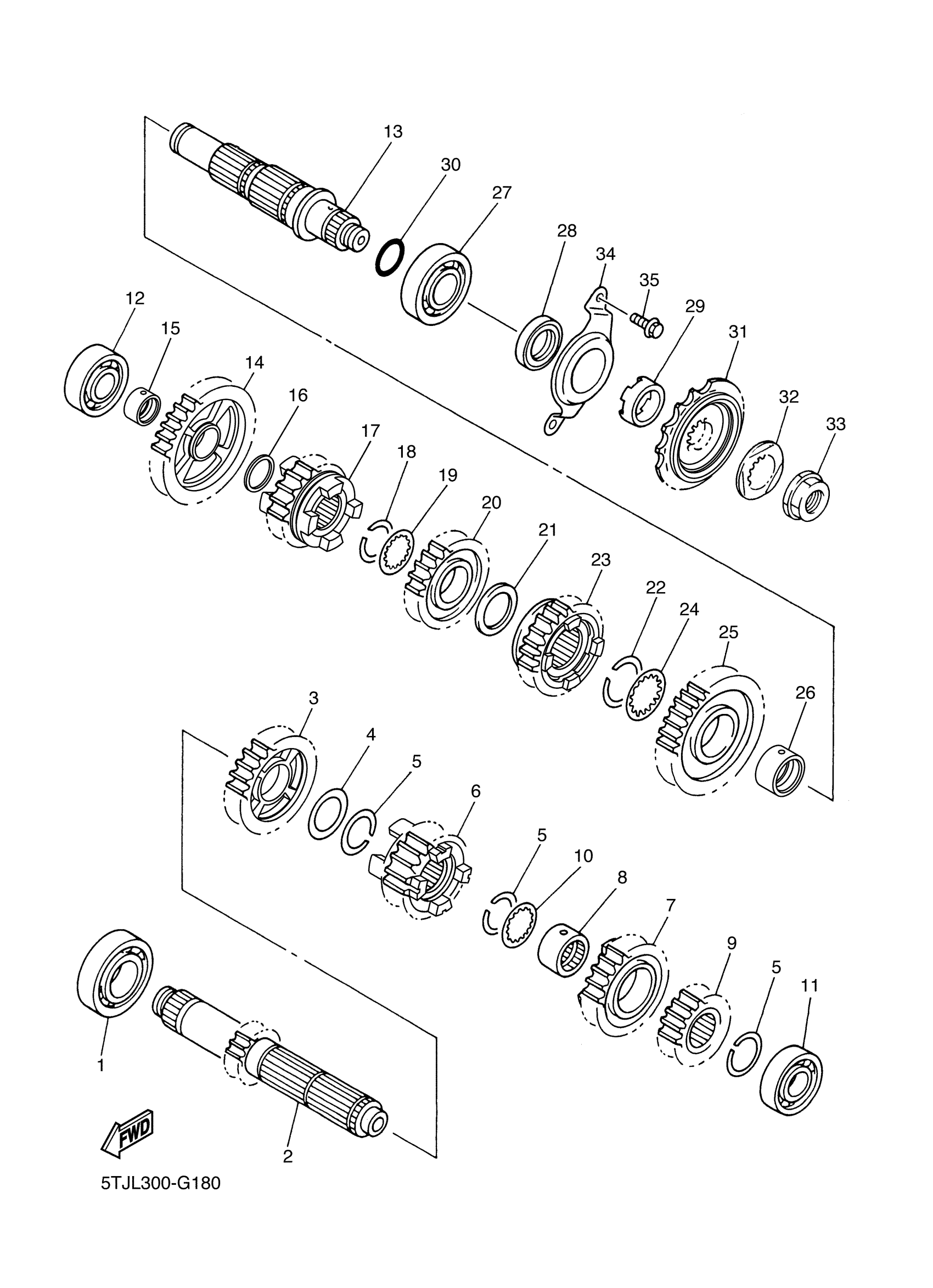

Yamaha WR450FE (WR450F) 1DXC 2014 TRANSMISSION Diagram

#

Description
Price

1

BEARING

93306-20532-00

$66.99

2

AXLE, MAIN

5TJ-17411-30-00

$172.99

3

GEAR, 5TH PINION

5TJ-17151-21-00

$57.99

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

5TJ-17131-20-00

$217.99

7

GEAR, 4TH PINION

5TJ-17141-20-00

$79.99

8

COLLAR

90387-21005-00

$28.99

9

GEAR, 2ND PINION

5TJ-17121-30-00

Unavailable

10

WASHER(3VD)

90209-21332-00

$7.49

11

BEARING (34L)

93306-00431-00

$41.99

12

BEARING (5Y1)

93306-00426-00

$42.99

13

DRIVE AXLE ASSY

2S2-17402-00-00

$263.99

14

GEAR, 1ST WHEEL

5TJ-17211-20-00

Unavailable

15

COLLAR

90387-20028-00

Unavailable

16

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

17

GEAR, 5TH WHEEL

5TJ-17251-20-00

Unavailable

18

CIRCLIP (4L0)

93440-25084-00

$5.60

19

WASHER(3VD)

90209-21332-00

$7.49

20

GEAR, 3RD WHEEL

B3J-17231-00-00

Unavailable

21

WASHER, PLATE(59W)

90201-253K0-00

$8.49

22

CIRCLIP (2H7)

93440-28062-00

Unavailable

23

GEAR, 4TH WHEEL

5TJ-17241-20-00

Unavailable

24

WASHER

90209-26348-00

Unavailable

25

GEAR, 2ND WHEEL

5TJ-17221-30-00

Unavailable

26

COLLAR

90387-28012-00

Unavailable

27

BEARING

93306-205A5-00

Unavailable

28

OIL SEAL

93102-32480-00

Unavailable

29

COLLAR

90387-2513F-00

Unavailable

30

O-RING

93210-22298-00

Unavailable

30

O-RING

93210-22298-00

Unavailable

31

SPROCKET, DRIVE (13T)

9383E-13233-00

Unavailable

32

WASHER, LOCK

90215-21003-00

Unavailable

33

NUT

90179-20001-00

Unavailable

34

PLATE, COVER

2S2-17471-00-00

Unavailable

35

BOLT, FLANGE

95022-06012-00

Unavailable
