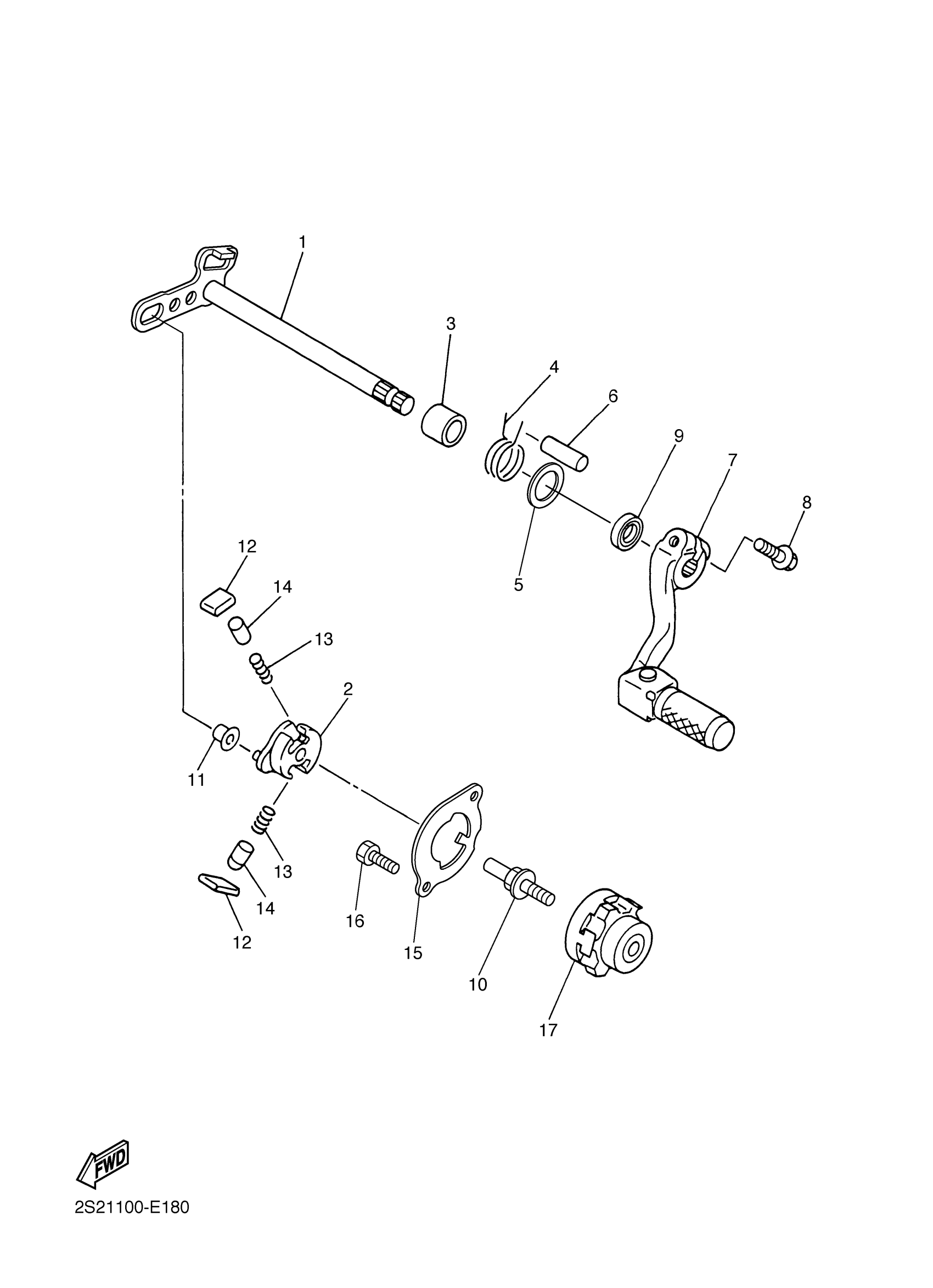

Yamaha WR450FE (WR450F) 1DXC 2014 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

2S2-18101-10-00

$88.99

2

LEVER, SHIFT 2

5MW-18122-01-00

$85.99

3

COLLAR

90387-12033-00

$7.49

4

SPRING, TORSION

90508-29021-00

$9.49

5

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

6

PIN, DOWEL

93608-33002-00

$15.99

7

SHIFT PEDAL ASSY

5XC-18110-00-00

Unavailable

8

BOLT, FLANGE

90105-06127-00

$8.49

9

OIL SEAL (4G0)

93102-12224-00

$10.49

10

PIN, SHIFT

3XJ-18173-10-00

$19.99

11

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

12

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

13

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

14

PIN, PAWL

3XJ-18184-00-00

$15.49

15

GUIDE, SHIFT

5TJ-18172-00-00

$16.49

16

BOLT

90101-06042-00

Unavailable

17

SEGMENT

2S2-18185-00-00

Unavailable
