Description

Price

1

KICK SHAFT ASSY

2S2-15601-00-00

Unavailable

2

WASHER, PLATE (2K7)

90201-20685-00

$7.49

3

CIRCLIP (525)

93410-20038-00

$3.76

4

WHEEL, RATCHET

2S2-15671-00-00

Unavailable

5

SPRING, COMPRESSION

90501-160A2-00

$7.49

6

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

7

CIRCLIP(13T)

99009-16400-00

$5.60

8

GUIDE, SPRING

5GR-15664-00-00

$28.99

9

SPRING, TORSION

90508-305B0-00

$14.99

10

WASHER, PLATE (25H)

90201-162H4-00

$9.49

11

GUIDE, RATCHET WHEEL

2NX-15674-00-00

$9.99

12

STOPPER

2NX-15668-00-00

$24.99

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

15

GEAR, KICK IDLE

5TA-15651-00-00

$127.99

16

WASHER, PLATE (2K7)

90201-20685-00

$7.49

17

CIRCLIP(1AR)

99009-20400-00

Unavailable

18

KICK CRANK ASSY

1DX-15620-00-00

Unavailable

19

BOSS, KICK CRANK

1DX-15621-00-00

Unavailable

20

SPRING, COMPRESSION

90501-147A5-00

Unavailable

21

BALL (12R)

93507-32031-00

Unavailable

22

SCREW, COUNTERSUNK

90151-06045-00

Unavailable

23

O-RING(36Y)

93210-17570-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

Unavailable

25

WASHER, PLATE

90201-08047-00

Unavailable

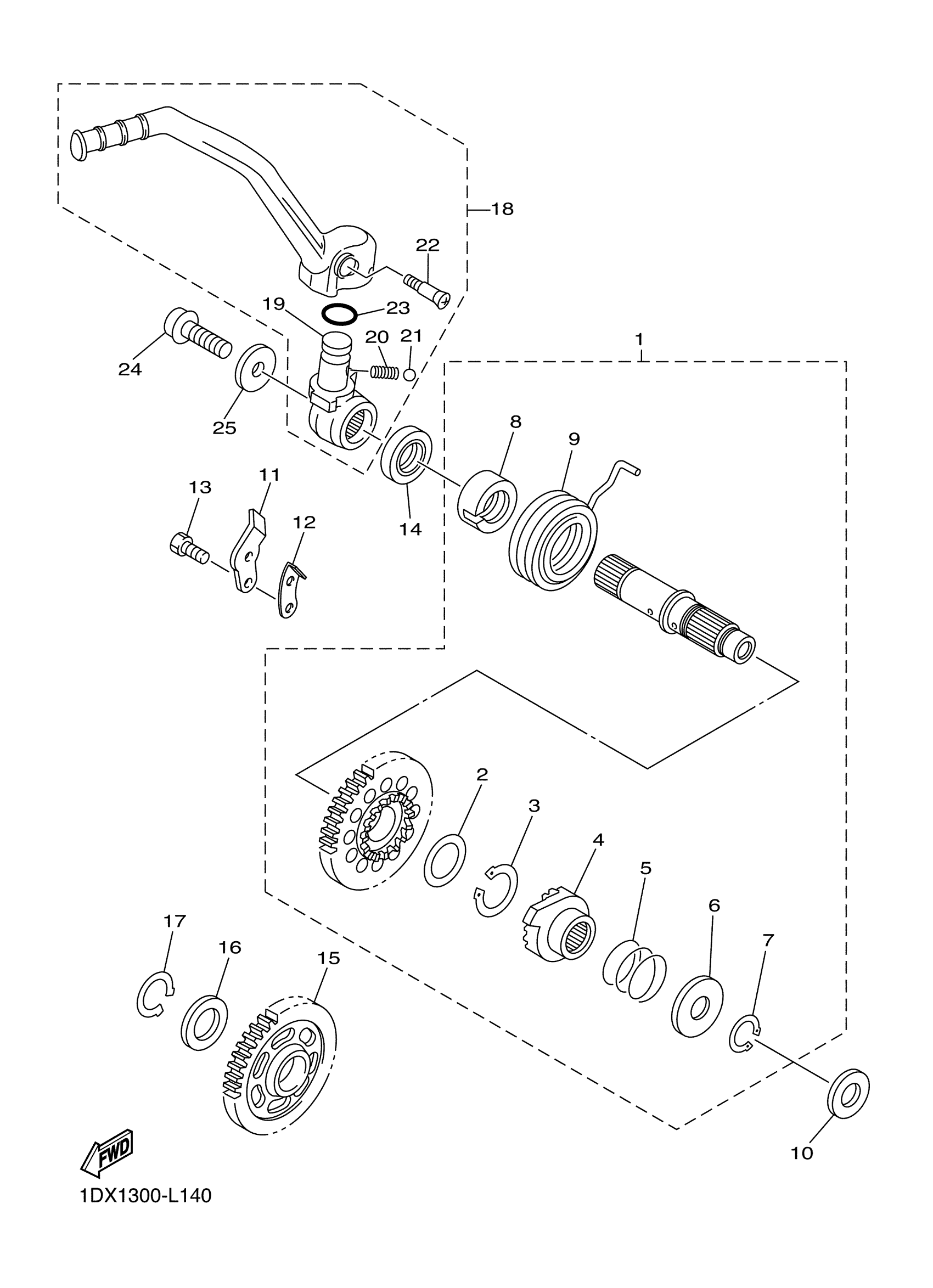

Yamaha WR450FD (WR450F) 1DX8 2013 STARTER Diagram

KICK SHAFT ASSY

WASHER, PLATE (2K7)

CIRCLIP (525)

WHEEL, RATCHET

SPRING, COMPRESSION

WASHER, PLATE(4GL)

CIRCLIP(13T)

GUIDE, SPRING

SPRING, TORSION

WASHER, PLATE (25H)

GUIDE, RATCHET WHEEL

STOPPER

BOLT, HEXAGON DEEP RECESS

OIL SEAL (20X30X7-371)

GEAR, KICK IDLE

WASHER, PLATE (2K7)

CIRCLIP(1AR)

KICK CRANK ASSY

BOSS, KICK CRANK

SPRING, COMPRESSION

BALL (12R)

SCREW, COUNTERSUNK

O-RING(36Y)

BOLT, HEXAGON SOCKET HEAD

WASHER, PLATE
