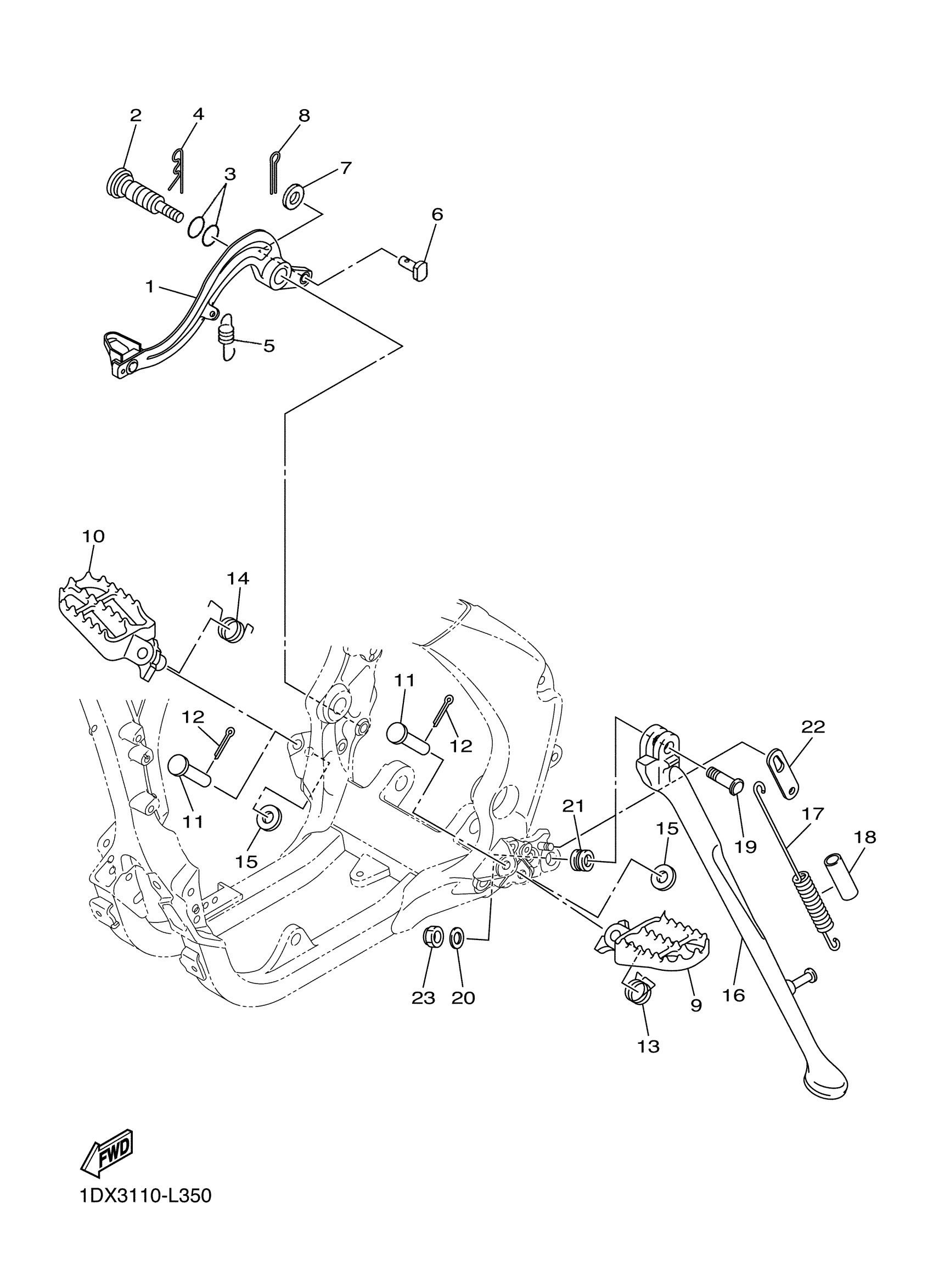

Yamaha WR450FD (WR450F) 1DX8 2013 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

33D-27200-01-00

$91.99

2

BOLT

17D-27217-00-00

$29.99

3

O-RING (P95)

93210-11073-00

$7.49

4

CLIP

90468-16001-00

$5.60

5

SPRING, TENSION

90506-16007-00

$8.49

6

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

7

WASHER, PLATE

90201-08044-00

$8.49

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

FOOTREST 1

17D-27411-00-00

$72.99

10

FOOTREST 2

17D-27421-00-00

$72.99

11

PIN, CLEVIS

90240-10005-00

Unavailable

12

PIN, COTTER

91490-25020-00

$3.19

13

SPRING, TORSION

90508-28015-00

$9.49

14

SPRING, TORSION

90508-28018-00

$7.49

15

WASHER, PLATE

90201-10032-00

$1.17

16

STAND, SIDE

5UM-27311-E1-00

Unavailable

17

SPRING, TENSION

90506-30005-00

Unavailable

18

HOSE (L95)

90445-212G3-00

Unavailable

19

BOLT

90109-10026-00

Unavailable

20

WASHER, PLATE

90201-10045-00

Unavailable

21

COLLAR(3XP)

90387-1003G-00

Unavailable

22

LINK, SIDE STAND

5UM-27315-E0-00

Unavailable

23

NUT, SELF-LOCKING

90185-10018-00

Unavailable
