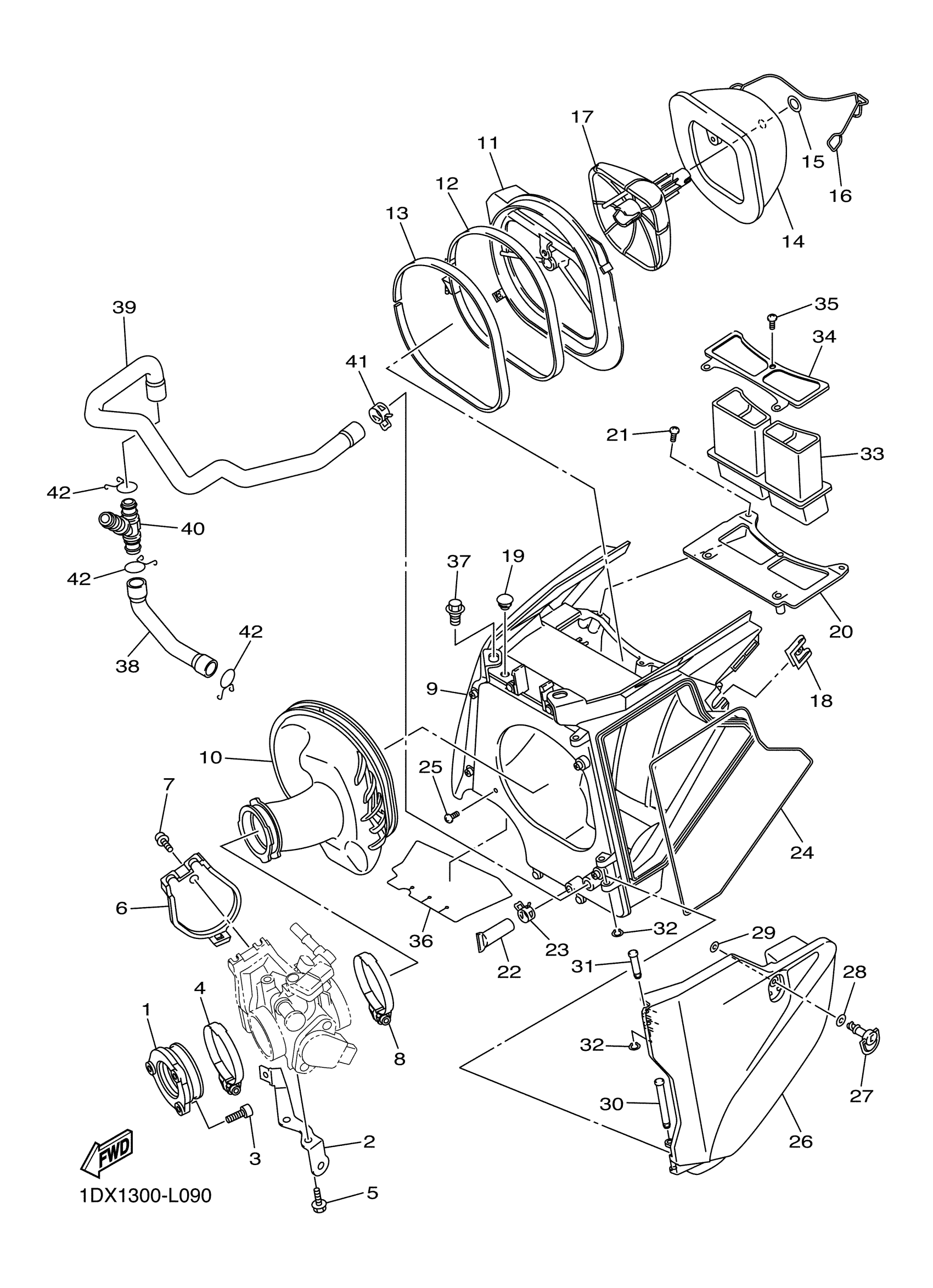

Yamaha WR450FD (WR450F) 1DX8 2013 INTAKE Diagram
#
1
JOINT, CARBURETOR 3
1DX-13597-00-00
Unavailable
2
BRACKET 1
1DX-14291-00-00
Unavailable
6
COVER 1
1DX-14293-00-00
Unavailable
9
AIR CLEANER CASE ASSY
1DX-14401-00-00
Unavailable
10
JOINT, AIR CLEANER 1
1DX-14453-00-00
Unavailable
16
BINDER 1
5UM-1441G-E0-00
Unavailable
17
GUIDE
5TJ-14458-00-00
Unavailable
18
PLATE, SPRING
4XV-2177L-01-00
Unavailable
19
PLUG 288833190000
90338-07043-00
Unavailable
20
DUCT
5UM-14437-E0-00
Unavailable
21
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
22
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
23
CLIP(3TB)
90467-17128-00
Unavailable
24
SEAL
51Y-14462-00-00
Unavailable
25
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
26
COVER, CLEANER CASE 1
1DX-1441A-00-00
Unavailable
27
HEAD
3FV-28386-00-00
Unavailable
28
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
29
WASHER, SPECIAL 1
5TJ-21757-00-00
Unavailable
30
PIN
90249-05005-00
Unavailable
31
PIN
90249-05004-00
Unavailable
32
CIRCLIP (EU0)
99080-04600-00
Unavailable
33
DUCT
5UM-1443A-E0-00
Unavailable
34
COVER 1
5UM-14417-E0-00
Unavailable
35
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
36
INSULATOR
1DX-14271-00-00
Unavailable
37
BOLT
90109-06245-00
Unavailable
38
PIPE, BREATHER 2
1DX-11167-00-00
Unavailable
39
PIPE, BREATHER 3
1DX-11126-00-00
Unavailable
40
WAY 3
90413-14001-00
Unavailable
41
CLIP(3TB)
90467-17128-00
Unavailable
42
CLIP
90467-160A4-00
Unavailable
