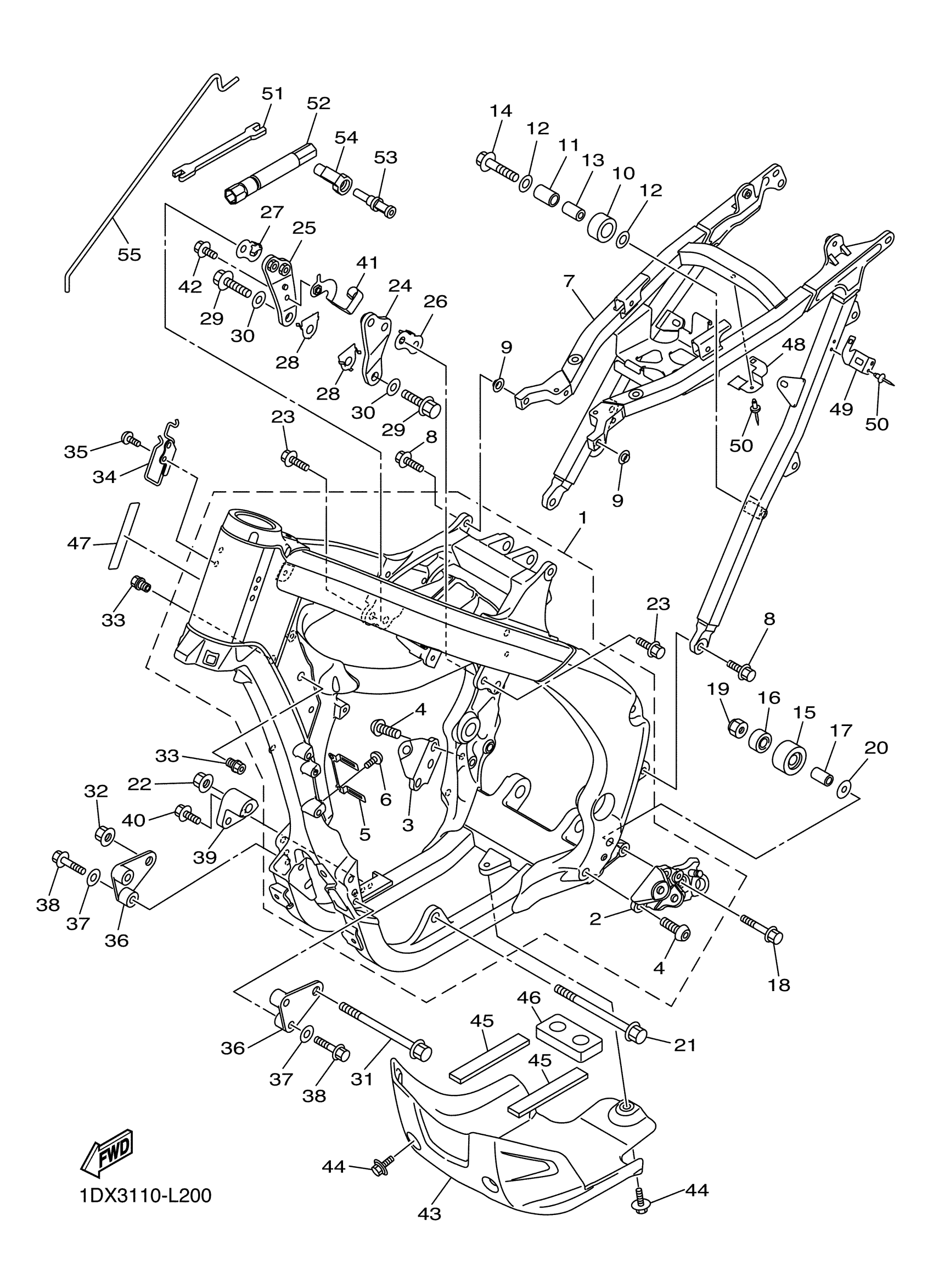

Yamaha WR450FD (WR450F) 1DX8 2013 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

1DX-21101-00-00

Unavailable

2

BRACKET, FOOTREST

1DX-21447-00-00

Unavailable

3

BRACKET, FOOTREST

17D-21448-00-00

$37.99

4

SCREW

90149-10033-00

$5.60

5

.. CLAMP, WIRE HARNESS 1

17D-21335-50-00

Unavailable

6

BOLT, BUTTON HEAD

92012-05008-00

$2.82

7

REAR FRAME COMP.

1DX-21190-00-00

Unavailable

8

BOLT, FLANGE

90105-08224-00

$3.23

9

COLLAR

90387-08096-00

Unavailable

10

TENSIONER

30X-22178-00-00

$35.99

11

BUSH

4V4-22184-00-00

$4.47

12

WASHER, PLATE

90201-08045-00

$5.60

13

COLLAR

90387-08041-00

$8.49

14

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

15

TENSIONER

3JD-22178-20-00

$43.99

16

BEARING (3X3)

93300-60804-00

Unavailable

17

COLLAR(1NL)

90387-086N4-00

Unavailable

18

BOLT, FLANGE

90105-08133-00

Unavailable

19

NUT, U

95617-08100-00

Unavailable

20

WASHER, PLATE

90201-08043-00

Unavailable

21

BOLT, FLANGE

90105-10214-00

Unavailable

22

NUT(4KG)

90179-10658-00

Unavailable

23

BOLT, FLANGE

90105-08226-00

Unavailable

24

BRACKET, REAR UPPER 1

1DX-21425-00-00

Unavailable

25

BRACKET, REAR UPPER 2

1DX-21426-00-00

Unavailable

26

WASHER, SPECIAL

1DX-21515-00-00

Unavailable

27

WASHER, SPECIAL 2

1DX-21516-00-00

Unavailable

28

WASHER, SPECIAL 1

1DX-21615-00-00

Unavailable

29

. BOLT, FLANGE

95812-10025-00

Unavailable

30

WASHER, PLATE

90201-10033-00

Unavailable

31

BOLT, FLANGE

90105-10408-00

Unavailable

32

NUT(4KG)

90179-10658-00

Unavailable

33

NUT

17D-21244-20-00

Unavailable

34

HOLDER, CLUTCH CABLE

1DX-21163-00-00

Unavailable

35

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

36

BRACKET, FRONT LOWER 1

1DX-21417-00-00

Unavailable

37

. WASHER

92902-08200-00

Unavailable

38

BOLT, FLANGE

90105-08229-00

Unavailable

39

BRACKET, REAR LOWER 2

1DX-21428-00-00

Unavailable

40

BOLT, FLANGE

90105-08142-00

Unavailable

41

HOLDER, CABLE

1DX-21161-00-00

Unavailable

42

BOLT, FLANGE

90105-06128-00

Unavailable

43

GUARD, ENGINE 1

1DX-2147A-01-00

Unavailable

44

BOLT, WITH WASHER

90119-06146-00

Unavailable

45

DAMPER, PLATE

90520-02008-00

Unavailable

46

DAMPER, RUBBER 1

1DX-21485-01-00

Unavailable

47

SEAL

5UM-21268-E0-00

Unavailable

48

STAY 1

1DX-2116A-00-00

Unavailable

49

COVER 2

1DX-2116E-00-00

Unavailable

50

RIVET, BLIND (2YK)

90267-32146-00

Unavailable

51

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

52

BOX, SPARK PLUG

5SL-2814F-00-00

Unavailable

53

CAP

18P-2467E-00-00

Unavailable

54

CASE, CAP

18P-2464V-01-00

Unavailable

55

HOOK 1

1DX-2814H-00-00

Unavailable
