Description

Price

1

FENDER, FRONT

17D-21511-50-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06108-00

$4.61

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

REAR FENDER COMP.

1HC-21610-90-00

$45.99

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

INSULATOR, SIDE COVER 2

5UM-2174T-E0-00

Unavailable

9

BOLT, FLANGE

90105-06127-00

$8.49

10

BOLT, FLANGE

90105-06100-00

$7.49

11

WASHER, PLATE

90201-06032-00

$8.49

12

BOLT, FLANGE

90105-06106-00

$3.76

13

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

14

COLLAR

90387-06009-00

$10.49

15

GUARD, FLAP

5TA-21642-00-00

$39.99

16

SCREW, TAPPING

97702-60016-00

Unavailable

17

EMBLEM

3C5-2411B-20-00

Unavailable

18

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

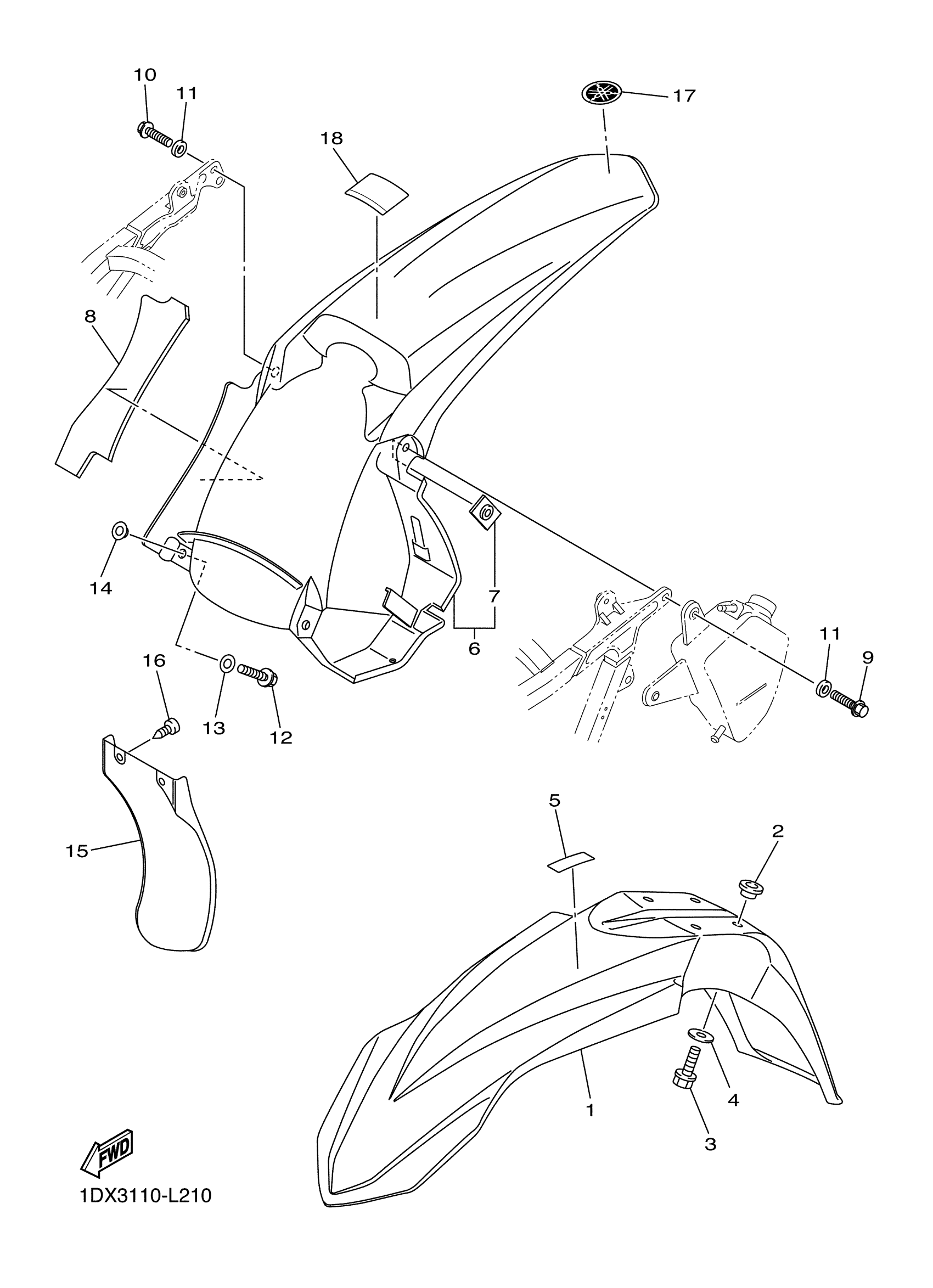

Yamaha WR450FD (WR450F) 1DX8 2013 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, FLANGE

WASHER, PLATE

LABEL, CAUTION

REAR FENDER COMP.

NUT, REAR FENDER

INSULATOR, SIDE COVER 2

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE

WASHER, PLATE (583 REAR FENDER

COLLAR

GUARD, FLAP

SCREW, TAPPING

EMBLEM

LABEL, CAUTION
