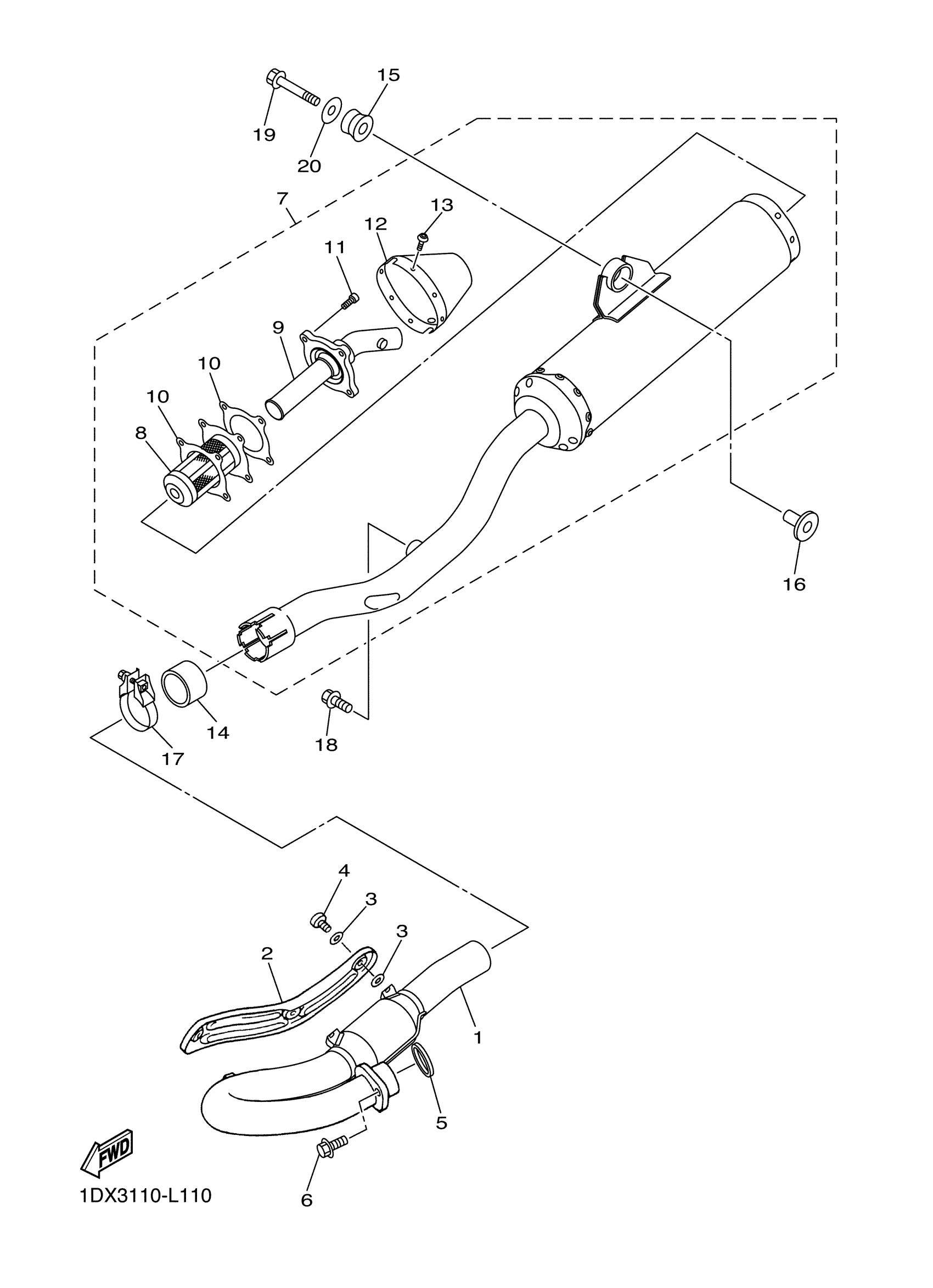

Yamaha WR450FD (WR450F) 1DX8 2013 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1DX-14611-20-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

2S2-14628-00-00

Unavailable

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

GASKET, EXHAUST PIPE

3VD-14613-01-00

$9.15

6

BOLT, FLANGE

90105-08142-00

$4.57

7

MUFFLER ASSY 1

5TJ-14710-E0-00

Unavailable

8

SPARK ARRESTER ASSY

5TJ-14780-00-00

$89.27

9

PIPE, TAIL

5TJ-14784-00-00

Unavailable

10

GASKET, EXHAUST PIPE

5TJ-14623-00-00

$10.97

11

BOLT, HEXAGON SOCKET HEAD

90110-05041-00

$3.11

12

CAP

5TJ-14799-00-00

$114.38

13

BOLT, BUTTON HEAD

92012-05008-00

$2.19

14

GASKET, MUFFLER

5XD-14714-00-00

$24.60

15

DAMPER, MUFFLER

1DX-14747-00-00

Unavailable

16

COLLAR

90387-08081-00

Unavailable

17

BAND, SILENCER

5BE-14788-00-00

Unavailable

18

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

19

BOLT, FLANGE

90105-08137-00

Unavailable

20

WASHER, PLATE

90201-08061-00

Unavailable
