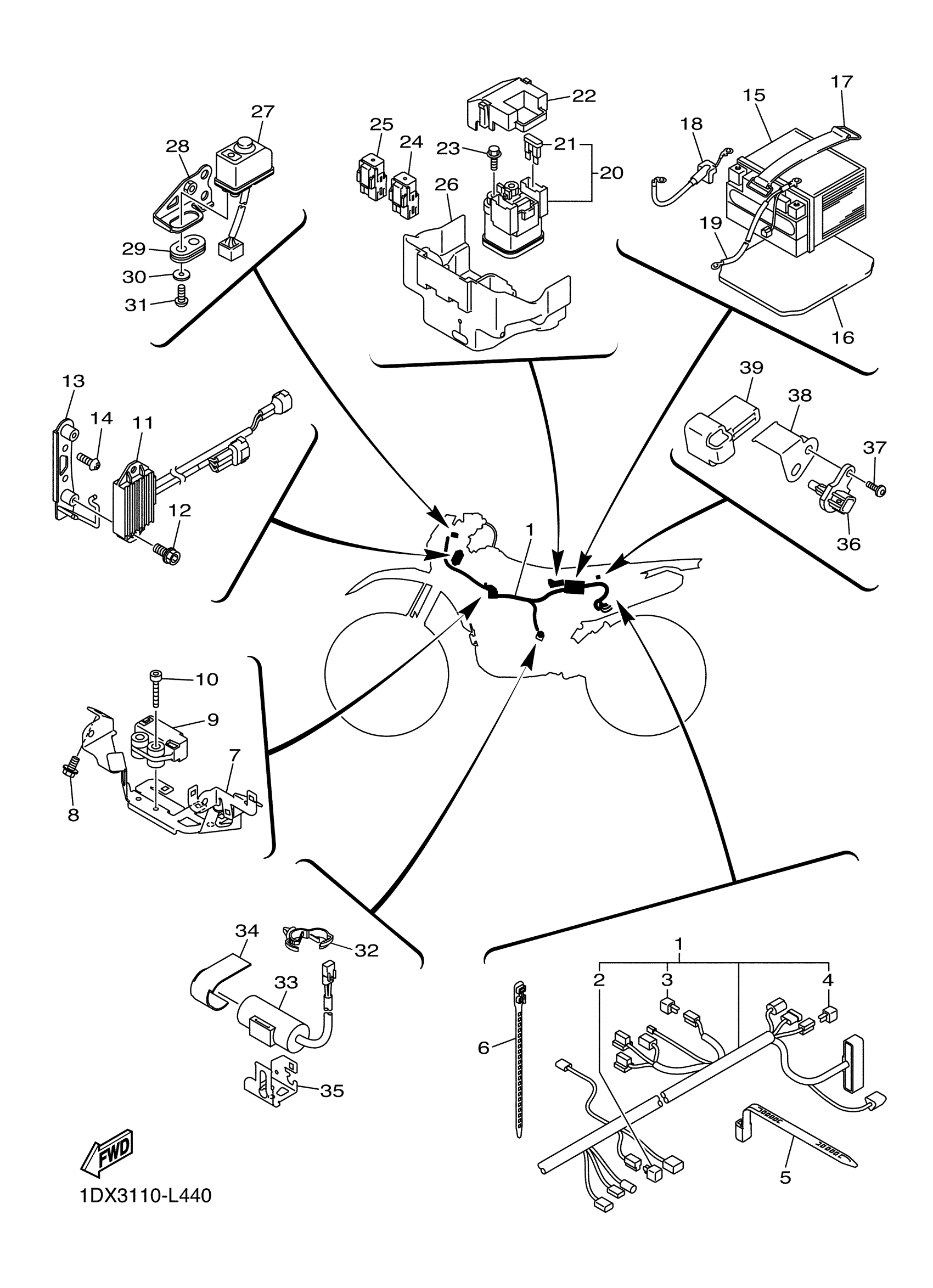

Yamaha WR450FD (WR450F) 1DX8 2013 ELECTRICAL 2 Diagram

WIRE HARNESS ASSY

1DX-82590-20-00

Unavailable

DIODE ASSY

5TJ-81980-00-00

$25.99

DIODE ASSY

4WA-81980-00-00

$29.99

DIODE ASSY

3WP-81980-00-00

$22.99

CLAMP(4FM)

90464-15195-00

$4.41

CLAMP

90464-45001-00

$7.49

HOLDER

1DX-85548-00-00

Unavailable

BOLT, FLANGE

90105-06064-00

Unavailable

SENSOR, LEAN ANGLE

5PS-82576-02-00

$88.99

BOLT

91312-04020-00

$2.55

RECTIFIER & REGULATOR ASSY

1DX-81960-00-00

$216.99

BOLT, FLANGE

90105-06110-00

$8.49

STAY, REGULATOR

1DX-87208-00-00

Unavailable

BOLT, BUTTON HEAD

92012-06010-00

$4.30

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

DAMPER

5UM-82176-E0-00

Unavailable

BAND, BATTERY

8CY-82131-00-00

Unavailable

WIRE, PLUS LEAD

1DX-82115-00-00

Unavailable

WIRE, MINUS LEAD

1DX-82116-00-00

Unavailable

STARTER RELAY ASSY

1DX-81940-00-00

Unavailable

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

BOLT, FLANGE

95022-06008-00

Unavailable

RELAY ASSY (5D1-00)

5D1-81950-00-00

Unavailable

RELAY ASSY (5D1-00)

5D1-81950-00-00

Unavailable

HOLDER, RELAY

1DX-81952-00-00

Unavailable

MAIN SWITCH ASSY

1DX-82510-00-00

Unavailable

STAY, MAIN SWITCH

1DX-82514-00-00

Unavailable

GROMMET

90480-01026-00

Unavailable

WASHER, PLATE

90201-04030-00

Unavailable

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

CLAMP

90464-13249-00

Unavailable

CONDENSER, SMOOTHING

1DX-81965-10-00

Unavailable

INSULATOR 1

1DX-8253E-00-00

Unavailable

BRACKET, CONDENCER

1DX-81627-00-00

Unavailable

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

SCREW,PAN HEAD

98502-05014-00

Unavailable

BRACKET

1DX-85542-00-00

Unavailable

BAND 1

1DX-8A7M1-00-00

Unavailable
