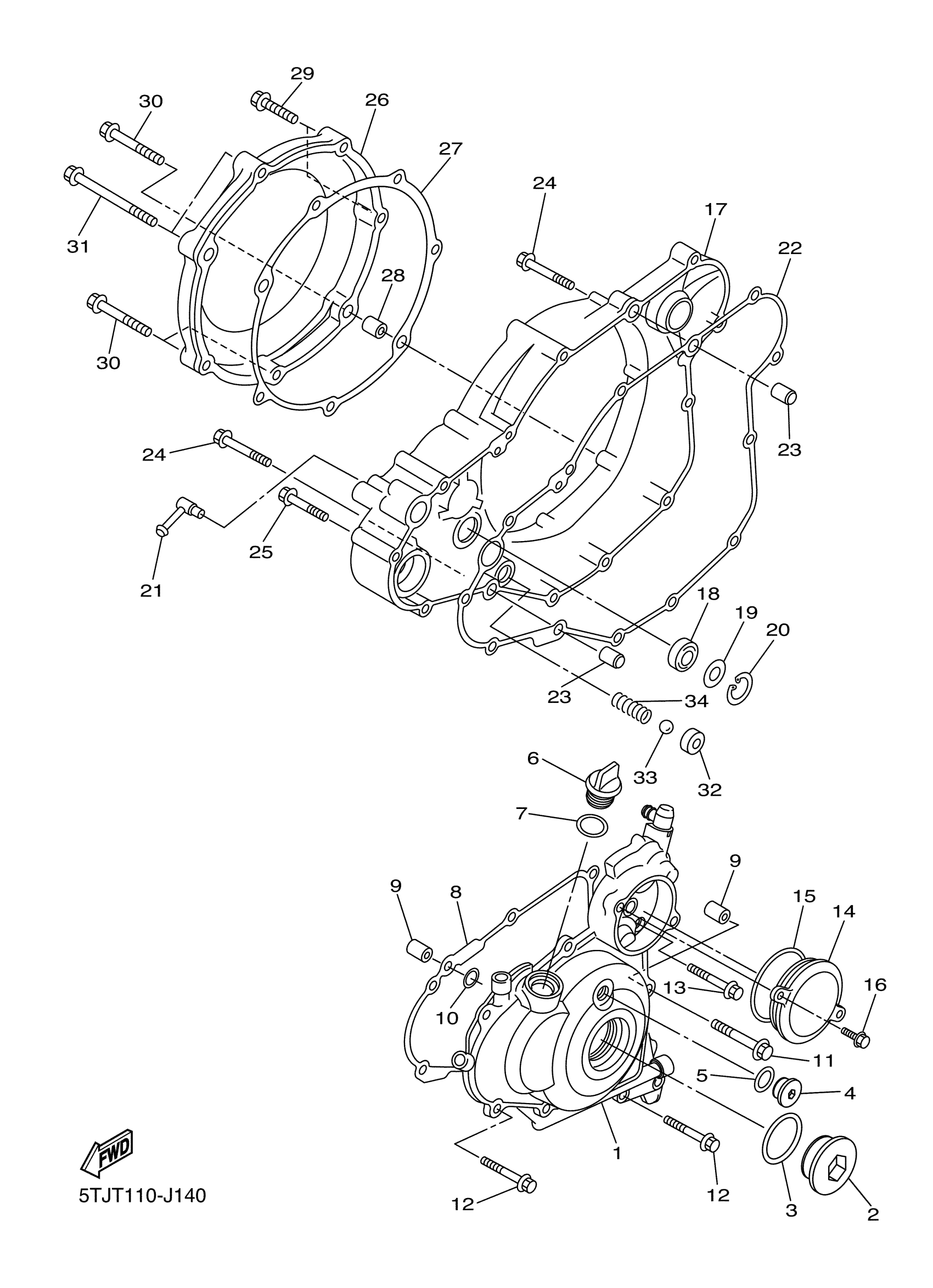

Yamaha WR450FD (WR450F) 1DX8 2013 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5TJ-15411-40-00

$263.99

2

PLUG, STRAIGHT SCREW

90340-27006-00

Unavailable

3

O-RING(1KT)

93210-27778-00

$8.49

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

2S2-15451-00-00

$22.99

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

O-RING

93210-08003-00

$9.49

11

BOLT, FLANGE

95022-06040-00

$3.45

12

BOLT, FLANGE

95022-06030-00

$3.72

13

BOLT, FLANGE

95022-06020-00

$3.62

14

COVER ASSY 2

5TJ-1549B-30-00

Unavailable

15

O-RING (1J7)

93210-58346-00

$10.49

16

BOLT, FLANGE

95022-06016-00

Unavailable

17

COVER, CRANKCASE 3

1DX-15431-00-00

Unavailable

18

OIL SEAL(4GY)

93101-14164-00

Unavailable

19

WASHER (566)

90201-15701-00

Unavailable

20

CIRCLIP

99009-22500-00

Unavailable

21

PIPE, BREATHER

5XC-15373-00-00

Unavailable

22

GASKET, CRANKCASE COVER 3

2S2-15462-10-00

Unavailable

23

PIN, DOWEL(J38)

91812-16001-00

Unavailable

24

BOLT, FLANGE

95022-06040-00

$3.45

25

BOLT, FLANGE

95022-06030-00

$3.72

26

COVER, GENERATOR

5TA-15415-30-00

Unavailable

27

GASKET

5TA-15453-00-00

Unavailable

28

PIN, DOWEL(3XW)

91808-16023-00

$8.49

29

BOLT, FLANGE

95022-06030-00

$3.72

30

BOLT, FLANGE

95022-06040-00

$3.45

31

BOLT, FLANGE

95022-06080-00

Unavailable

32

SEAT, CHECK BALL

583-13113-00-00

Unavailable

33

BALL

93503-08007-00

Unavailable

34

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable
