- WR450FB (WR450F) 1DX3 2012
SIDE COVER

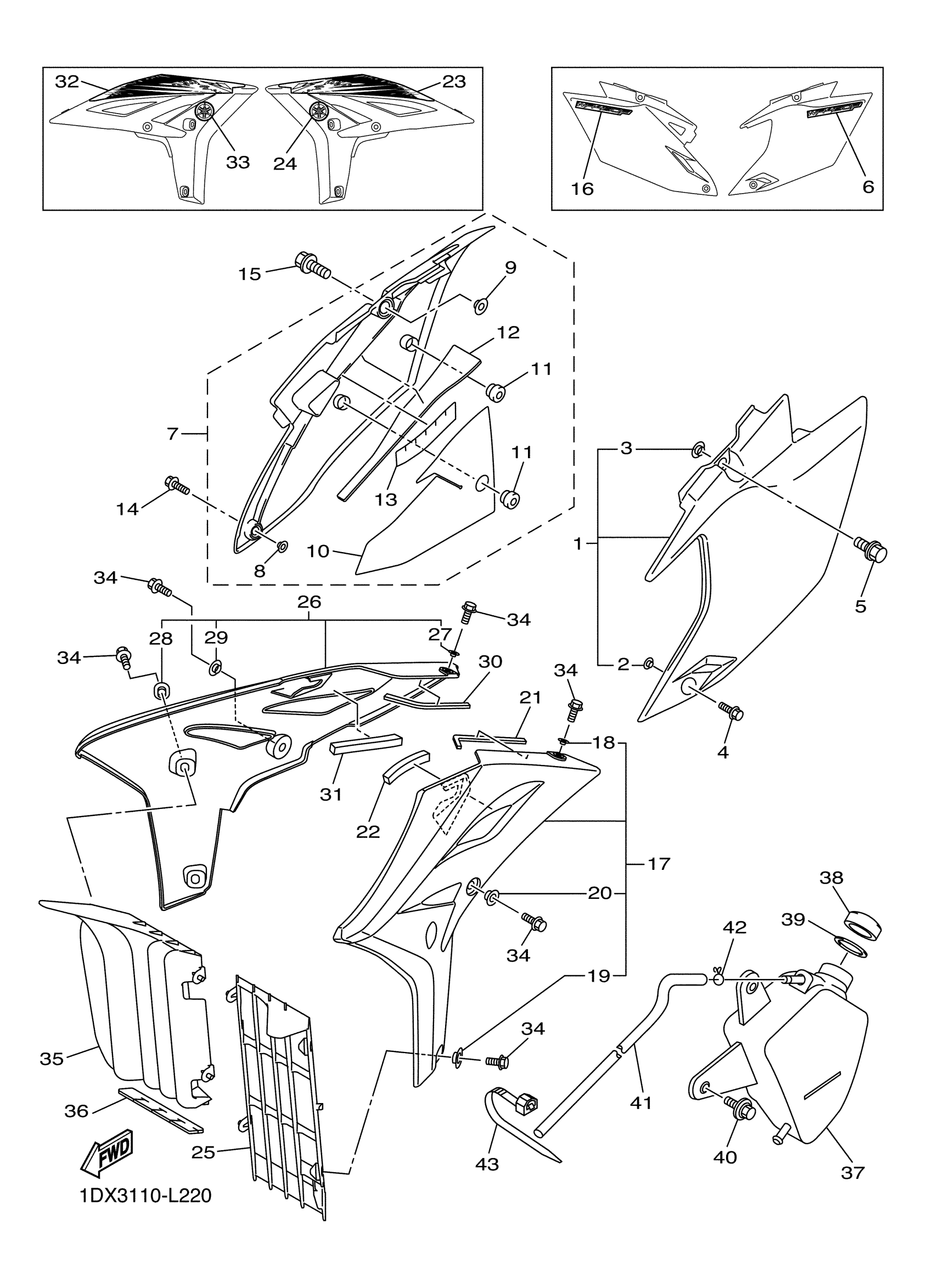

Yamaha WR450FB (WR450F) 1DX3 2012 SIDE COVER Diagram
#
Description
Price
1
SIDE COVER ASSY 1
1DX-21710-00-00
Unavailable
10
INSULATOR, SIDE COVER
1DX-2174A-00-00
Unavailable
12
INSULATOR 3
1DX-2172S-00-00
Unavailable
17
SIDE COVER ASSY 3
17D-21730-D0-00
Unavailable
19
COLLAR
17D-21749-00-00
Unavailable
21
SEAL 3
5RU-28238-00-00
Unavailable
22
DAMPER
32D-84553-00-00
Unavailable
23
GRAPHIC, 3
17D-2174G-30-00
Unavailable
24
TUNING FORK MARK
5FK-2175C-01-00
Unavailable
25
PANEL 1
1DX-2172A-00-00
Unavailable
26
SIDE COVER ASSY 4
17D-21740-D0-00
Unavailable
28
COLLAR
17D-21749-00-00
Unavailable
30
SEAL 3
5RU-28238-00-00
Unavailable
31
DAMPER
32D-84553-00-00
Unavailable
32
GRAPHIC, 4
17D-2174H-30-00
Unavailable
33
TUNING FORK MARK
5FK-2175C-01-00
Unavailable
34
BOLT, FLANGE
90105-06064-00
Unavailable
35
PANEL 1
1DX-2172A-10-00
Unavailable
36
INSULATOR 5
1DX-2174S-00-00
Unavailable
37
TANK ASSY
5UM-21860-E0-00
Unavailable
38
CAP
26H-21875-00-00
Unavailable
39
GASKET
26H-21874-00-00
Unavailable
40
BOLT, WITH WASHER
90119-06146-00
Unavailable
41
HOSE 6
1DX-1244J-00-00
Unavailable
42
CLIP
90467-090A2-00
Unavailable
43
CLAMP(4FM)
90464-15195-00
Unavailable
