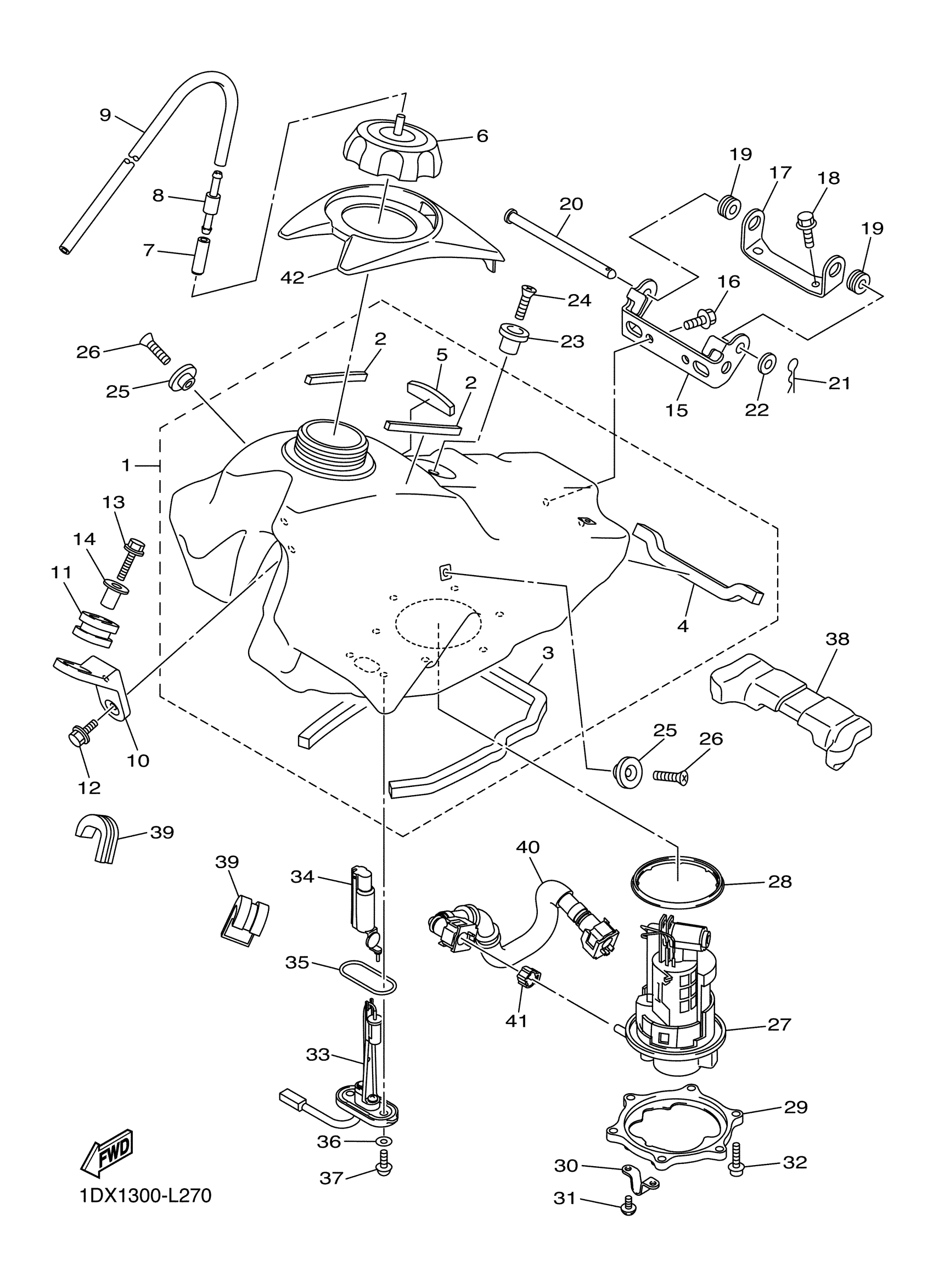

Yamaha WR450FB (WR450F) 1DX3 2012 FUEL TANK Diagram
#
1
FUEL TANK ASSY
1DX-24100-10-00
Unavailable
3
DAMPER, PLATE
90520-10018-00
Unavailable
10
HOLDER, DAMPER
1DX-24144-00-00
Unavailable
15
BRACKET, CANISTOR
33D-2419F-00-00
Unavailable
17
BRACKET, FUEL TANK 1
1DX-24191-00-00
Unavailable
18
BOLT, FLANGE
90105-06066-00
Unavailable
19
GROMMET
90480-12025-00
Unavailable
20
PIN, CLEVIS
90240-08007-00
Unavailable
21
CLIP
90468-16001-00
Unavailable
22
WASHER, PLATE (12X)
90201-087F0-00
Unavailable
23
BRACKET, SEAT
4EW-2412F-00-00
Unavailable
24
SCREW, FLAT
98707-06025-00
Unavailable
25
BRACKET, SEAT
17D-2412F-00-00
Unavailable
26
SCREW, FLAT
98707-06020-00
Unavailable
27
FUEL PUMP COMP.
33D-13907-02-00
Unavailable
28
O-RING
33D-24486-00-00
Unavailable
29
BRACKET, FUEL PUMP
33D-24491-00-00
Unavailable
30
BRACKET, FUEL TANK 2
33D-24192-00-00
Unavailable
31
SCREW, BINDING
98907-05008-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD
90110-05058-00
Unavailable
33
SENDER UNIT ASSY, FUEL METER
1DX-85752-01-00
Unavailable
34
COVER
1DX-24474-00-00
Unavailable
35
GASKET, SENDER UNIT
1DX-85753-00-00
Unavailable
36
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
37
SCREW
90149-06108-00
Unavailable
38
DAMPER, LOCATING 1
17D-24181-50-00
Unavailable
39
DAMPER, LOCATING 2
1DX-24182-00-00
Unavailable
40
PIPE, FUEL 1
1DX-13971-03-00
Unavailable
41
CLAMP 1
33D-24135-00-00
Unavailable
42
COVER, CAP
1DX-2464E-00-00
Unavailable
