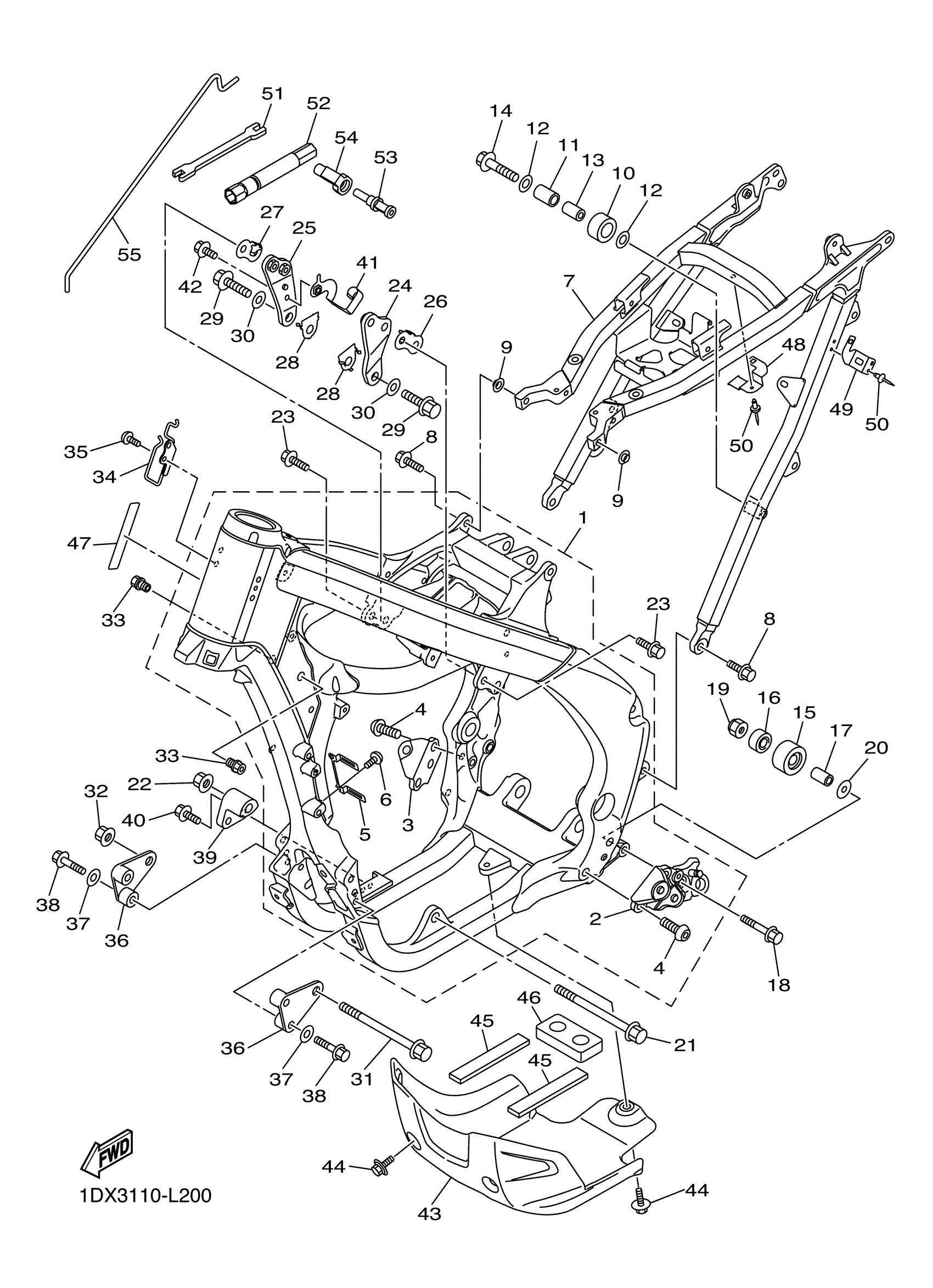

2012 Yamaha WR450F (WR450FB) Frame Diagram
Find the part on the Frame diagram for your 2012 Yamaha WR450F (WR450FB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
1DX-21101-00-00
2
BRACKET, FOOTREST
1DX-21447-00-00
5
.. CLAMP, WIRE HARNESS 1
17D-21335-50-00
7
REAR FRAME COMP.
1DX-21190-00-00
8
BOLT, FLANGE
90105-08224-00
9
COLLAR
90387-08096-00
10
TENSIONER
30X-22178-00-00
18
BOLT, FLANGE
90105-08133-00
24
BRACKET, REAR UPPER 1
1DX-21425-00-00
25
BRACKET, REAR UPPER 2
1DX-21426-00-00
26
WASHER, SPECIAL
1DX-21515-00-00
27
WASHER, SPECIAL 2
1DX-21516-00-00
28
WASHER, SPECIAL 1
1DX-21615-00-00
31
BOLT, FLANGE
90105-10408-00
33
NUT
17D-21244-20-00
34
HOLDER, CLUTCH CABLE
1DX-21163-00-00
36
BRACKET, FRONT LOWER 1
1DX-21417-00-00
37
. WASHER
92902-08200-00
38
BOLT, FLANGE
90105-08229-00
39
BRACKET, REAR LOWER 2
1DX-21428-00-00
40
BOLT, FLANGE
90105-08142-00
41
HOLDER, CABLE
1DX-21161-00-00
42
BOLT, FLANGE
90105-06128-00
43
GUARD, ENGINE 1
1DX-2147A-01-00
44
BOLT, WITH WASHER
90119-06146-00
45
DAMPER, PLATE
90520-02008-00
46
DAMPER, RUBBER 1
1DX-21485-01-00
47
SEAL
5UM-21268-E0-00
48
STAY 1
1DX-2116A-00-00
49
COVER 2
1DX-2116E-00-00
52
BOX, SPARK PLUG
5SL-2814F-00-00
55
HOOK 1
1DX-2814H-00-00
