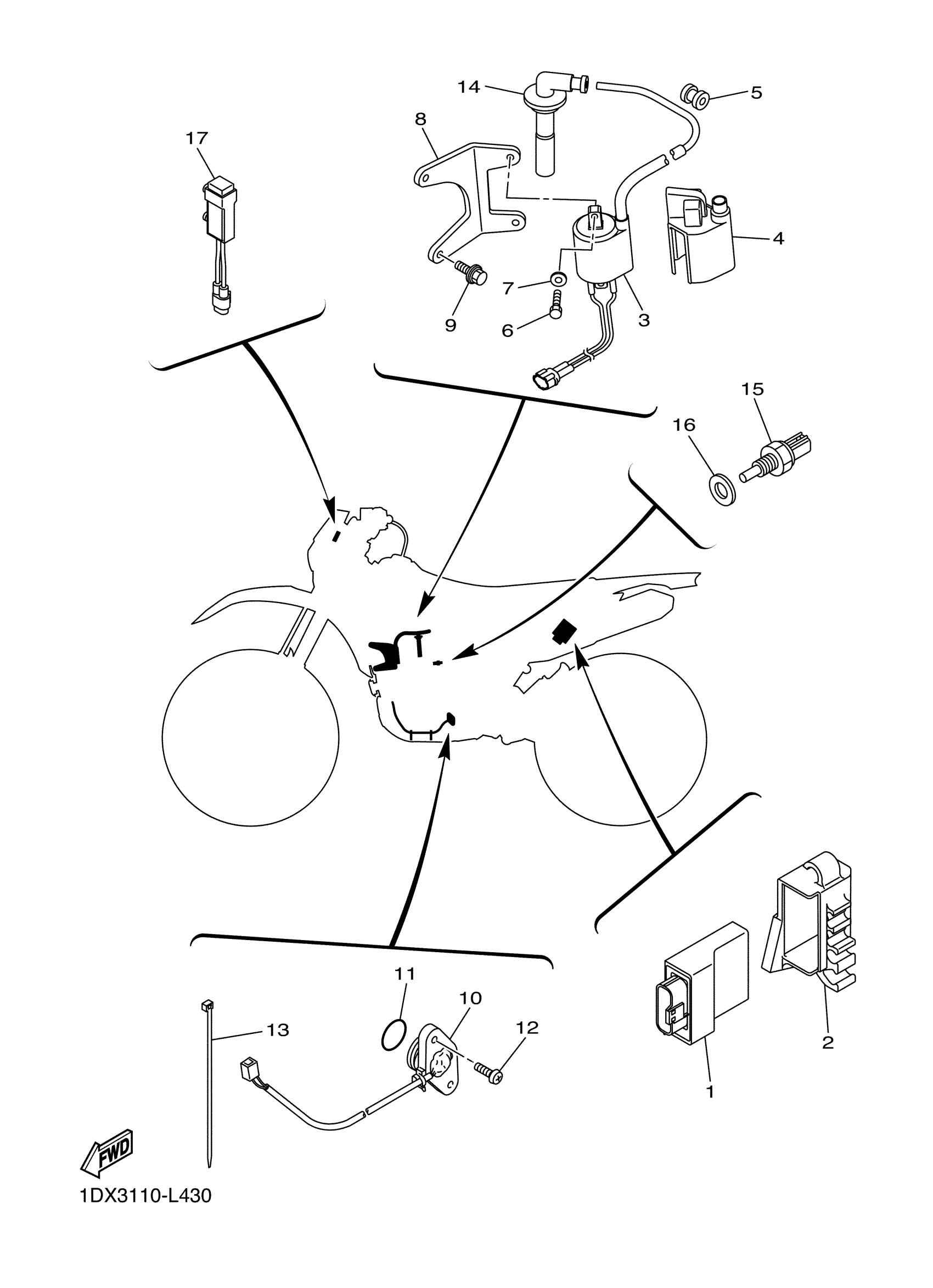

Yamaha WR450FB (WR450F) 1DX3 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

1DX-8591A-20-00

Unavailable

2

BAND

1DX-85546-00-00

Unavailable

3

ROTOR ASSY

1DX-82310-01-00

$88.99

4

COVER, IGNITION COIL

1DX-82314-00-00

$6.99

5

GROMMET

90480-11015-00

$3.66

6

BOLT(3JK)

97027-05020-00

$3.29

7

WASHER, PLAIN (646)

92990-05600-00

$0.80

8

BRACKET, IGNITION COIL

1DX-82316-00-00

Unavailable

9

BOLT, WITH WASHER

90119-06265-00

$2.49

10

NEUTRAL SWITCH ASSY

1DX-82540-00-00

Unavailable

11

O-RING

93210-21001-00

$5.60

12

SCREW, BIND

98902-05014-00

$1.71

13

CLAMP

5Y9-12491-00-00

$6.99

14

PLUG CAP ASSY

18P-82370-00-00

$86.99

15

THERMO UNIT

52B-H3591-00-00

$34.99

16

GASKET

90430-10004-00

Unavailable

17

RESISTOR ASSY

1DX-82718-00-00

Unavailable
