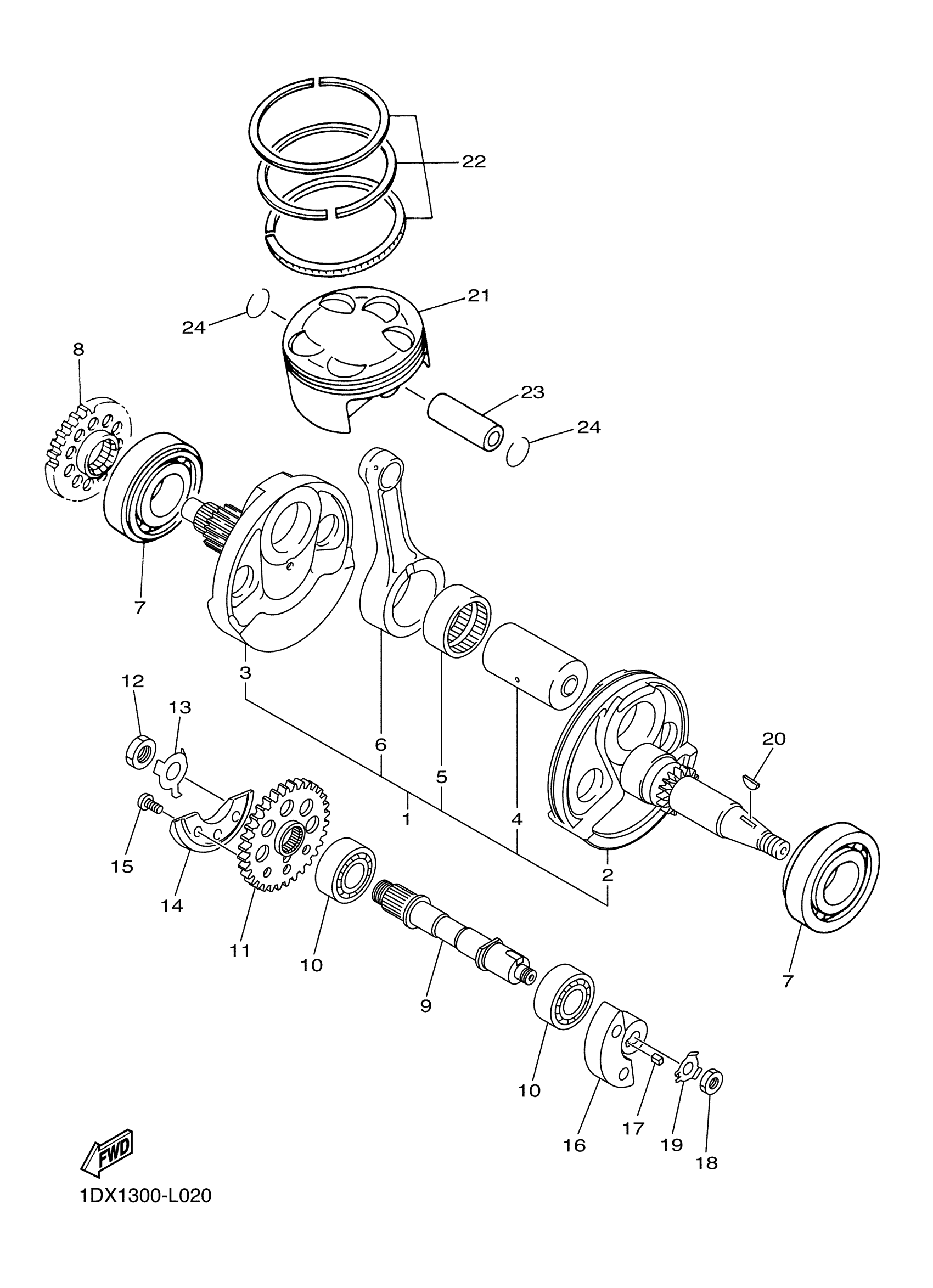

Yamaha WR450FB (WR450F) 1DX3 2012 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1DX-11400-00-00

$647.99

2

CRANK 1

1DX-11412-00-00

$267.99

3

CRANK 2

1DX-11422-00-00

Unavailable

4

PIN, CRANK 1

5TG-11681-01-00

$83.99

5

BEARING

93310-63458-00

Unavailable

6

ROD, CONNECTING

1DX-11651-00-00

Unavailable

7

BEARING

93306-30633-00

$101.99

8

GEAR, DRIVE

2S2-11536-00-00

$85.99

9

SHAFT 1

2S2-11455-00-00

$240.99

10

BEARING

93304-20310-00

$111.99

11

GEAR, BALANCE WEIGHT

2S2-11531-00-00

$124.99

12

NUT, HEXAGON

90170-14171-00

$9.49

13

WASHER, LOCK(4GA)

90215-14287-00

$5.60

14

WEIGHT 1

1DX-11454-00-00

Unavailable

15

SCREW

90149-06156-00

$8.49

16

WEIGHT 2

2S2-11464-00-00

Unavailable

17

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

18

NUT(4BA)

90170-10405-00

Unavailable

19

WASHER, LOCK

90215-10009-00

Unavailable

20

KEY, WOODRUFF

90280-03006-00

Unavailable

21

PISTON (STD)

1DX-11631-00-00

Unavailable

22

PISTON RING SET (STD)

5JG-11603-00-00

Unavailable

23

PIN, PISTON

33D-11633-00-00

Unavailable

24

CIRCLIP (2F1)

93450-19052-00

Unavailable
