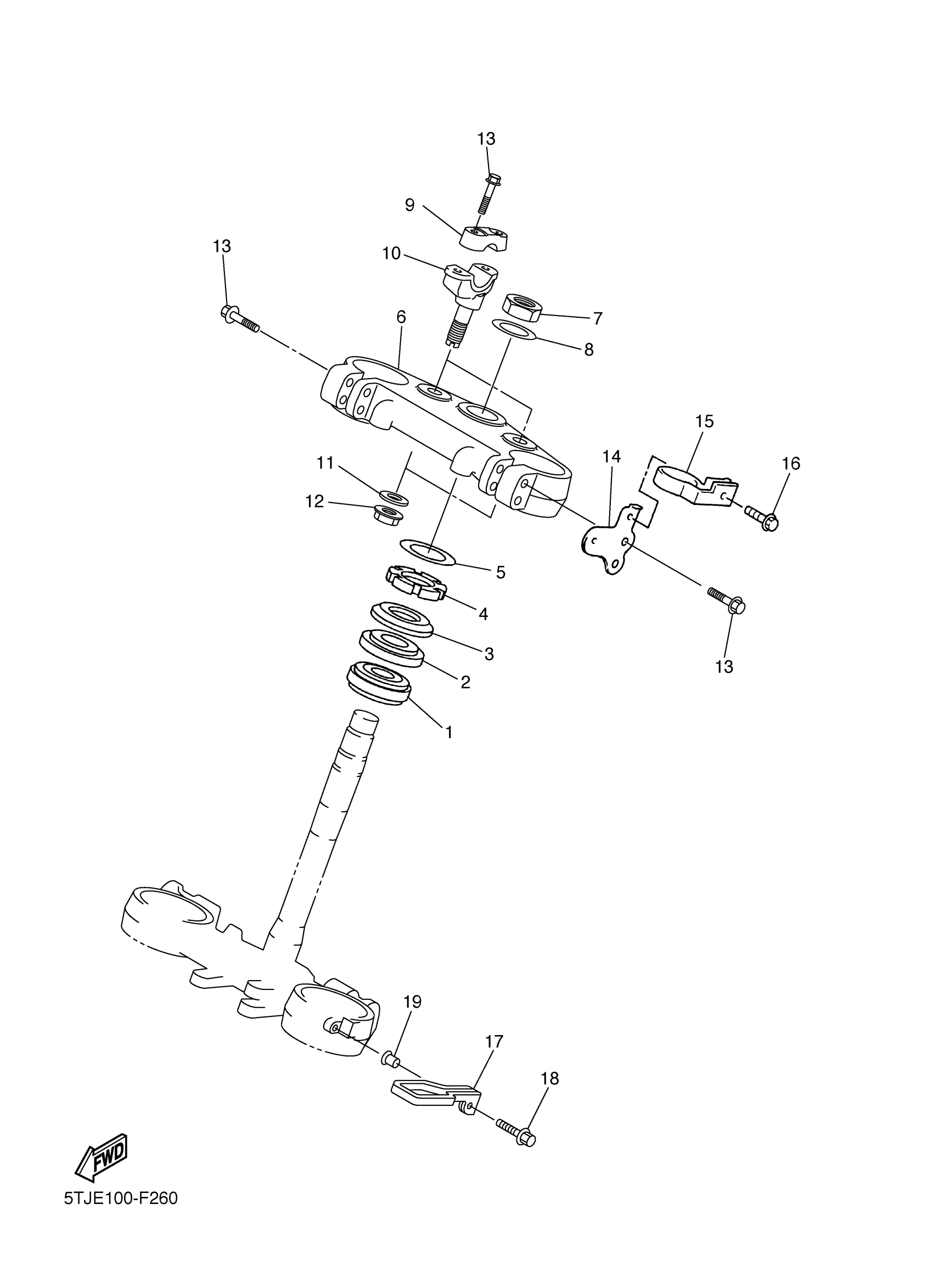

Yamaha WR450FA (WR450F) 1HB1 2011 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$58.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

4

NUT

90179-28013-00

$35.99

5

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

6

CROWN, HANDLE

5UM-23435-E1-00

Unavailable

7

NUT

90170-24003-00

$25.99

8

WASHER, PLATE

90201-24016-00

$8.49

9

HOLDER, HANDLE UPPER

18P-23441-00-00

$30.99

10

HOLDER, HANDLE LOWER

17D-23442-00-00

Unavailable

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

NUT, S/L FLANGE

95602-10200-00

$4.82

13

BOLT, FLANGE

90105-08154-00

$7.49

14

STAY, HEAD LIGHT 1

5UM-2831V-E0-00

$11.99

15

GUIDE, CABLE

5TJ-2331E-80-00

$14.49

16

BOLT, FLANGE

90105-05016-00

Unavailable

17

GUIDE, CABLE

5TJ-23389-80-00

Unavailable

18

BOLT, FLANGE

90105-06107-00

Unavailable

19

COLLAR

90387-06104-00

Unavailable
