Description

Price

1

DISK BRAKE ASSY

2S2-2581T-70-00

$248.99

2

SCREW, COUNTERSUNK

90151-06079-00

$3.23

3

CALIPER ASSY (LEFT)

1C3-2580T-00-00

$450.99

4

PISTON ASSY, CALIPER

5UN-W0057-00-00

$66.99

5

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

6

SUPPORT, PAD

5DH-25919-00-00

$20.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT

5MV-W0045-01-00

$39.99

9

PIN, PAD

5DH-25933-00-00

$22.99

10

PLUG

5DH-25916-00-00

$9.99

11

BOLT

3SP-25926-51-00

$13.49

12

BOLT

3SP-25914-51-00

$4.58

13

BOOT, CALIPER

3JD-25917-00-00

$8.99

14

BOOT 2

1UY-25937-51-00

$14.49

15

RETAINER, CALIPER

5DH-25849-00-00

$11.99

16

BOLT, FLANGE

90105-08137-00

Unavailable

17

HOLDER, BRAKE HOSE 1

1C3-25875-50-00

Unavailable

18

BOLT, FLANGE

90105-06105-00

Unavailable

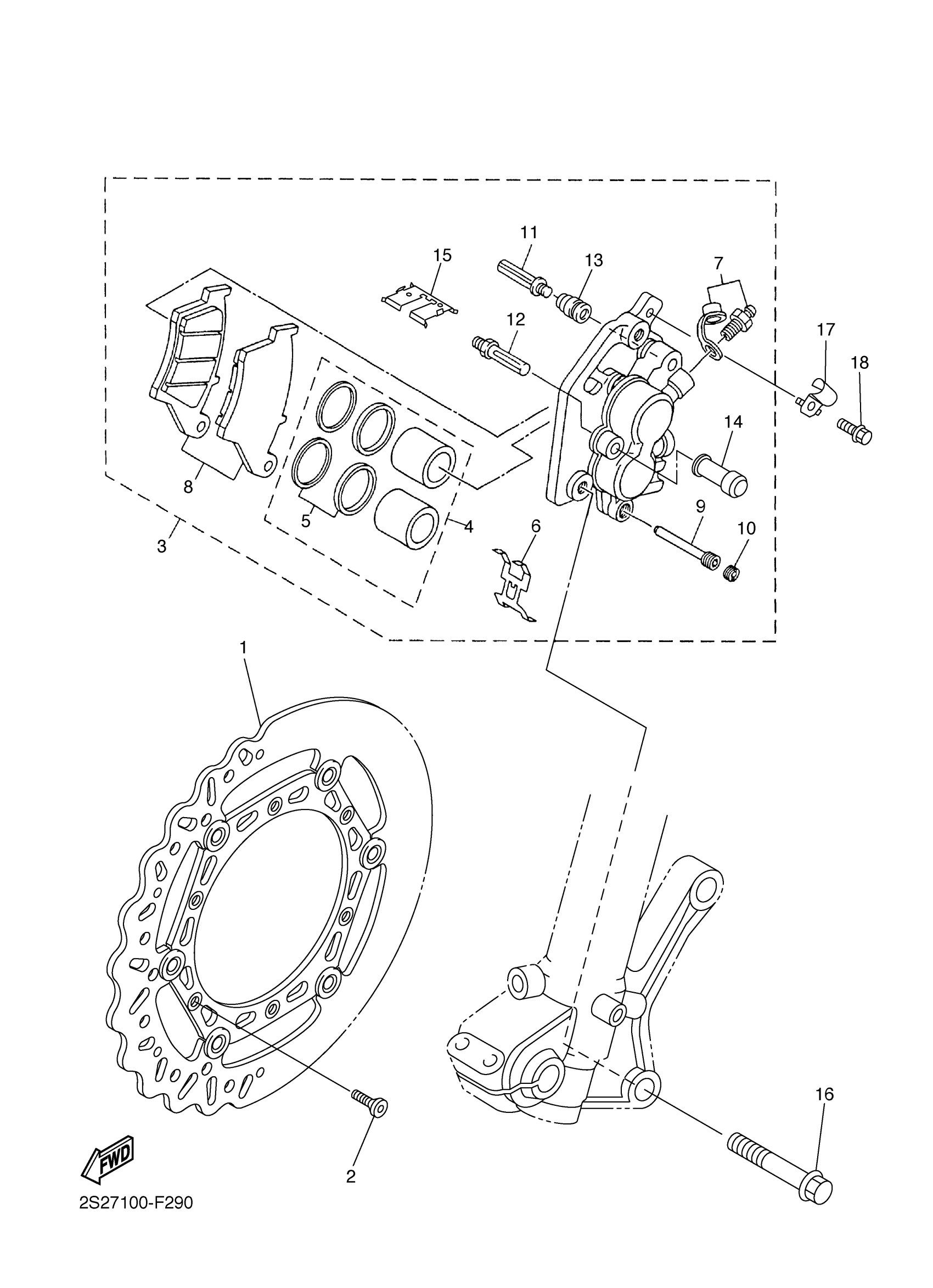

Yamaha WR450FA (WR450F) 1HB1 2011 FRONT BRAKE CALIPER Diagram

DISK BRAKE ASSY

SCREW, COUNTERSUNK

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

SUPPORT, PAD

BLEED SCREW KIT

BRAKE PAD KIT

PIN, PAD

PLUG

BOLT

BOLT

BOOT, CALIPER

BOOT 2

RETAINER, CALIPER

BOLT, FLANGE

HOLDER, BRAKE HOSE 1

BOLT, FLANGE
