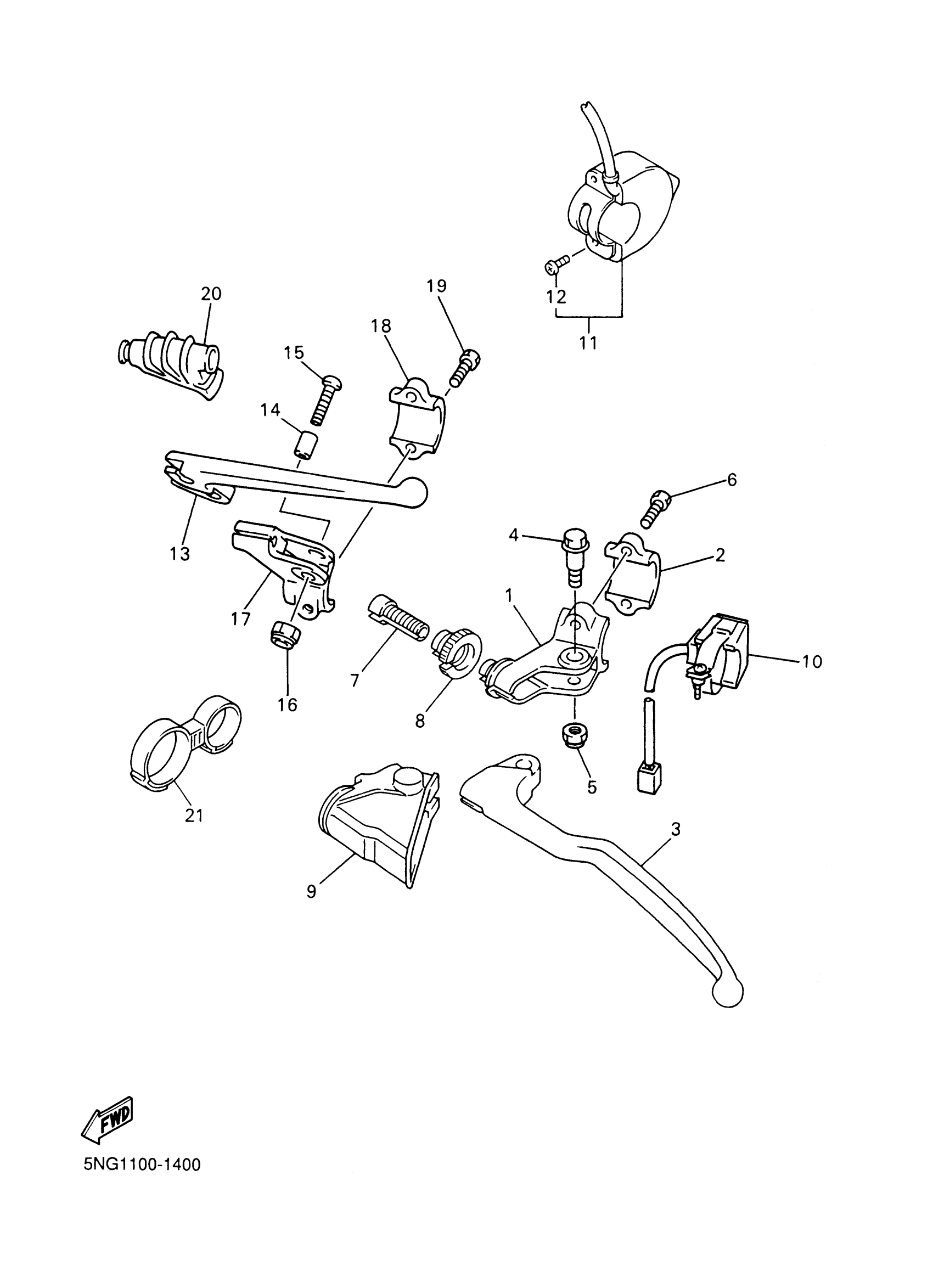

Yamaha WR426FP (WR426F) 5NG5 2002 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5HD-82911-00-00

$25.99

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

5MV-83912-01-00

$34.99

4

BOLT

90109-06027-00

$11.49

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

BOLT(4TW)

97017-05016-00

$3.29

7

BOLT, ADJUSTING

5HD-26337-00-00

$11.99

8

BOLT, CABLE ADJUST

5HD-83951-01-00

$44.99

9

COVER, HANDLE LEVER 1

5HD-26372-00-00

$17.49

10

SWITCH, HANDLE 1

5SF-83976-00-00

Unavailable

11

SWITCH, HANDLE 1

5NG-83976-50-00

Unavailable

12

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

13

LEVER, DECOMPRESSION

583-83981-00-00

$25.99

14

COLLAR, LEVER 1

5BE-83913-00-00

$4.84

15

SCREW, BINDING

98907-05020-00

$8.49

16

NUT, U

95617-05100-00

Unavailable

17

HOLDER, LEVER UPPER 1

5BE-82912-00-00

Unavailable

18

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

19

BOLT(4TW)

97017-05016-00

$3.29

20

COVER, DECOMPRESSION WIRE

583-26352-00-00

Unavailable

21

CLAMP(MG5)

90464-29223-00

Unavailable
