CARBURETOR

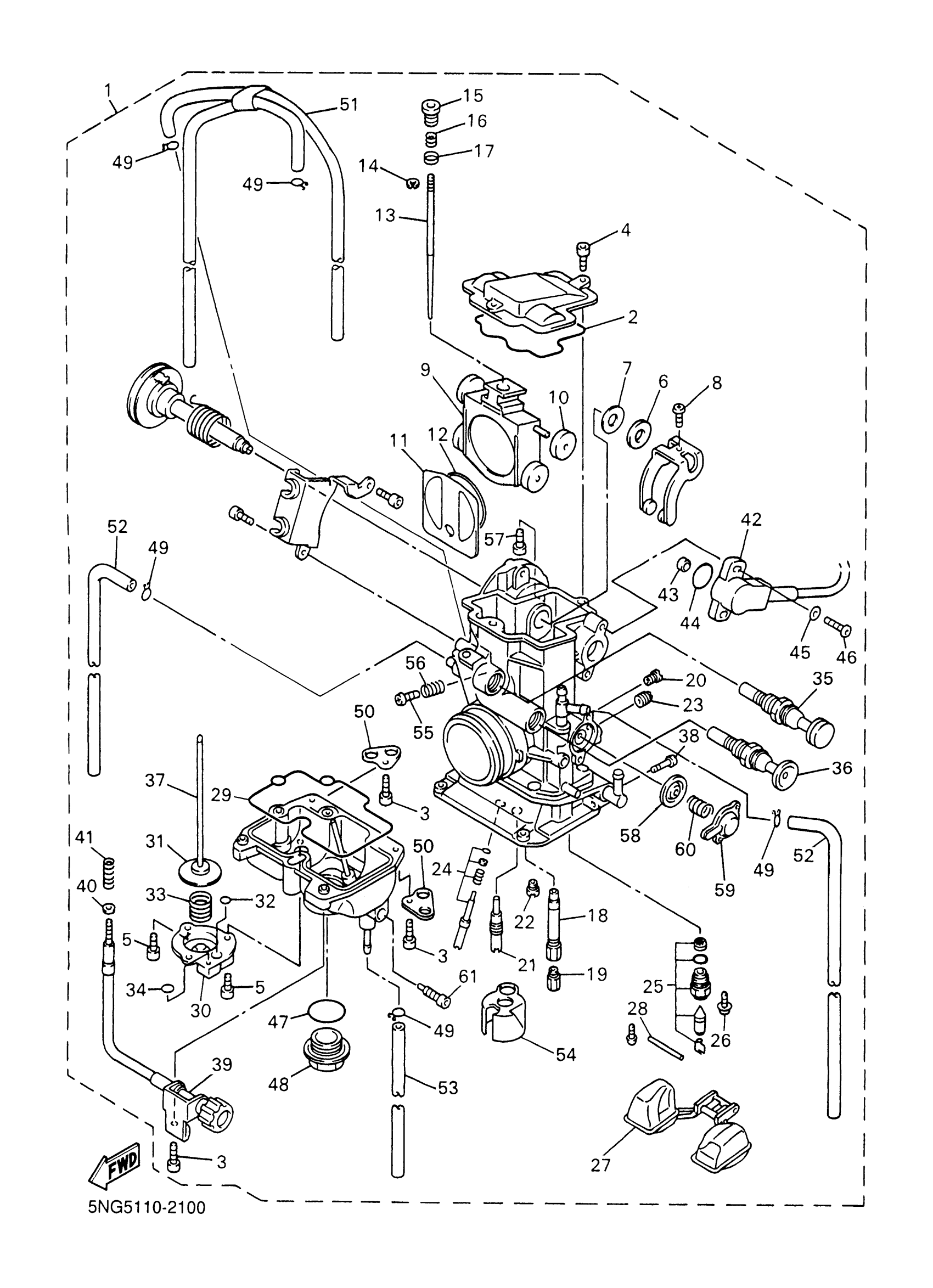

Yamaha WR426FP (WR426F) 5NG5 2002 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5NG-14101-50-00
Unavailable
13
. NEEDLE (#DRQ)
5GS-14916-R1-00
Unavailable
13
. NEEDLE (#DRN)
5GS-14916-RN-00
Unavailable
13
NEEDLE (#DRP)
5GS-14916-RP-00
Unavailable
13
. NEEDLE (#DRR)
5GS-14916-RR-00
Unavailable
13
. NEEDLE (#DRS)
5GS-14916-RS-00
Unavailable
13
. NEEDLE (#DRT)
5GS-14916-RT-00
Unavailable
13
. NEEDLE (#DRU)
5GS-14916-RU-00
Unavailable
14
CLIP
3TJ-14159-40-00
Unavailable
15
SCREW, ADJUST
5JG-14521-00-00
Unavailable
16
SPRING
5JG-14275-00-00
Unavailable
17
COLLAR
5JG-14264-00-00
Unavailable
18
JET, NEEDLE
5JG-14947-01-00
Unavailable
19
JET, MAIN (#155)
4MX-14943-38-00
Unavailable
19
JET, MAIN (#160)
4MX-14943-39-00
Unavailable
19
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
19
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
19
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
19
JET, MAIN (#158)
4MX-14943-89-00
Unavailable
19
JET, MAIN (#162)
4MX-14943-90-00
Unavailable
19
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
19
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
19
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
20
JET (#200)
3TJ-14943-47-00
Unavailable
21
JET, SLOW (#38)
4MX-14948-02-00
Unavailable
21
JET (#40)
4MX-14948-03-00
Unavailable
21
JET, PILOT (#42)
4MX-14948-04-00
Unavailable
21
JET, PILOT (#45)
4MX-14948-05-00
Unavailable
21
JET, PILOT (#48)
4MX-14948-06-00
Unavailable
22
. JET (#58)
3TJ-1494F-10-00
Unavailable
22
JET 1 (#60)
3TJ-1494F-11-00
Unavailable
22
JET
3TJ-1494F-12-00
Unavailable
22
JET
3TJ-1494F-13-00
Unavailable
22
JET
3TJ-1494F-14-00
Unavailable
22
JET
3TJ-1494F-15-00
Unavailable
23
. JET (#60)
7A9-14943-11-00
Unavailable
23
. JET (#75)
7A9-14943-17-00
Unavailable
24
PILOT SCREW SET
3TJ-14105-40-00
Unavailable
25
NEEDLE VALVE SET
5BE-14107-00-00
Unavailable
26
. SCREW
5BE-14216-00-00
Unavailable
27
FLOAT
4SR-14985-00-00
Unavailable
28
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
29
GASKET, FLOAT CHAMBER
5JG-14984-00-00
Unavailable
30
COVER 1
3TJ-14293-40-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-17-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-18-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-19-00
Unavailable
32
GASKET
3TJ-14536-40-00
Unavailable
33
SPRING, DIAPHRAGM
5GS-14933-40-00
Unavailable
34
. O-RING
6H4-14561-00-00
Unavailable
35
PLUNGER, STARTER
5JG-14171-00-00
Unavailable
36
PLUNGER, STARTER
5JG-14371-00-00
Unavailable
37
ROD, STARTER
5JG-14379-00-00
Unavailable
38
. SCREW, PAN HEAD
3TJ-14325-40-00
Unavailable
39
SCREW, THROTTLE
5JG-14922-00-00
Unavailable
40
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
41
. SPRING, THROTTLE STOP
4FN-14934-00-00
Unavailable
42
. THROTTLE SENSOR ASSY
5JG-85885-00-00
Unavailable
43
COLLAR
4TV-14534-00-00
Unavailable
44
O-RING
4TV-14562-00-00
Unavailable
45
WASHER(JF2)
92907-04600-00
Unavailable
46
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
47
O-RING
4MX-14561-00-00
Unavailable
48
PLUG, SCREW
4MX-14115-00-00
Unavailable
49
CLIP
3TJ-14137-40-00
Unavailable
50
PLATE
5BE-14146-00-00
Unavailable
51
. PIPE
5JG-14196-00-00
Unavailable
52
. PIPE
5JG-14197-00-00
Unavailable
53
. HOSE
5JG-14987-00-00
Unavailable
54
PLATE
5JG-14346-00-00
Unavailable
55
SCREW
5JG-14565-00-00
Unavailable
56
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
57
SCREW
5JG-14591-09-00
Unavailable
58
DIAPHRAGM ASSY
5GS-14940-00-00
Unavailable
59
COVER, DIAPHRAGM
5GS-14958-00-00
Unavailable
60
SPRING, DIAPHRAGM
5GS-14933-00-00
Unavailable
61
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
