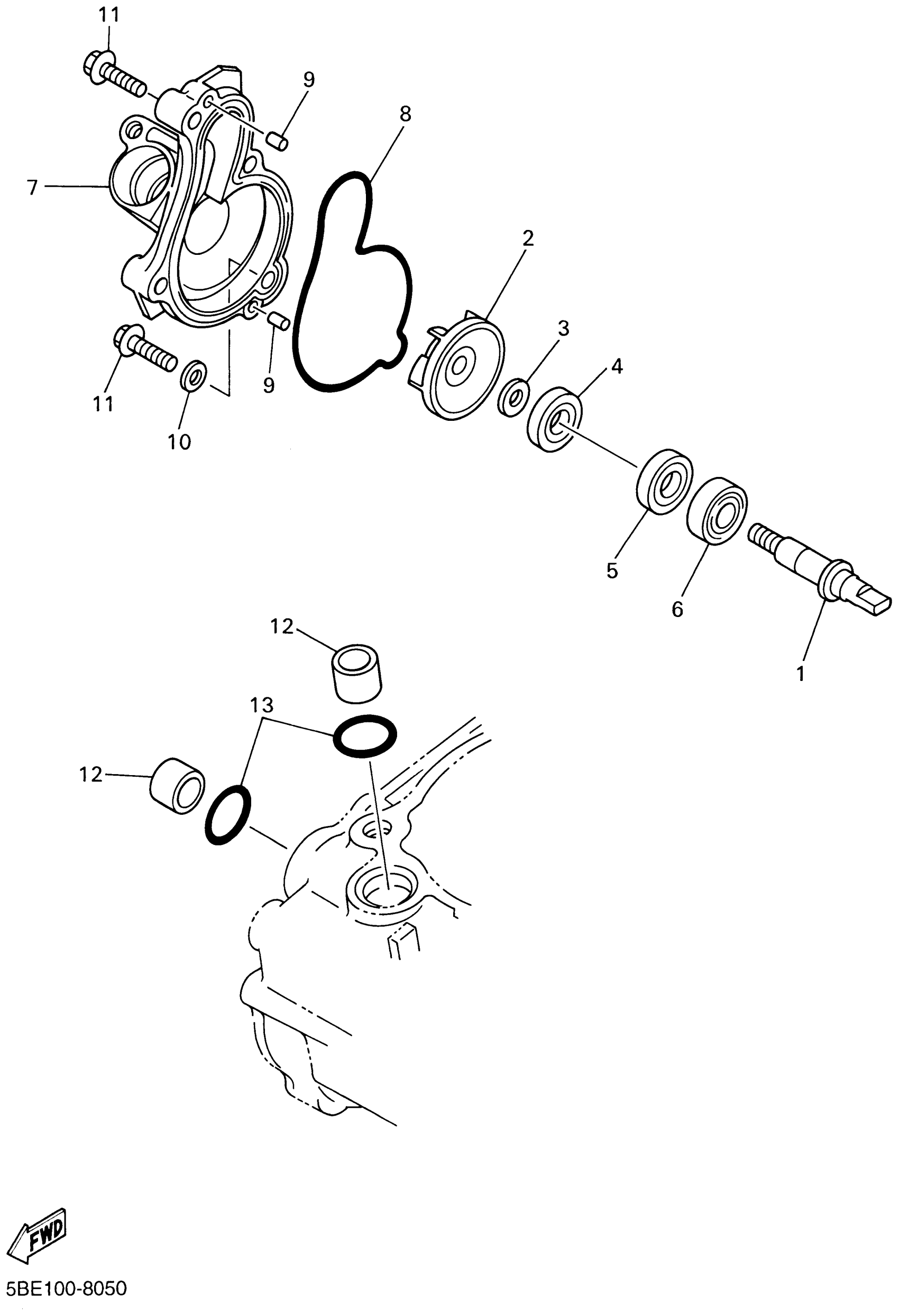

Yamaha WR426FN (WR426F) 5NG1 2001 WATER PUMP Diagram

#

Description
Price

1

SHAFT, IMPELLER

5GR-12458-00-00

$85.99

2

IMPELLER, WATER PUMP

5DJ-12451-00-00

$89.99

3

WASHER, PLATE (5F7)

90201-08512-00

$8.49

4

OIL SEAL

93109-11073-00

$11.49

5

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

7

COVER, HOUSING

5BE-12422-10-00

Unavailable

8

O-RING

5BE-12439-00-00

$18.49

9

PIN,DOWEL (603)

93604-10011-00

$8.49

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, SMALL FLANGE

95027-06025-00

$4.16

12

PIPE, WATER

5BE-12564-00-00

$11.99

13

O-RING(M01)

93210-19758-00

$7.49
