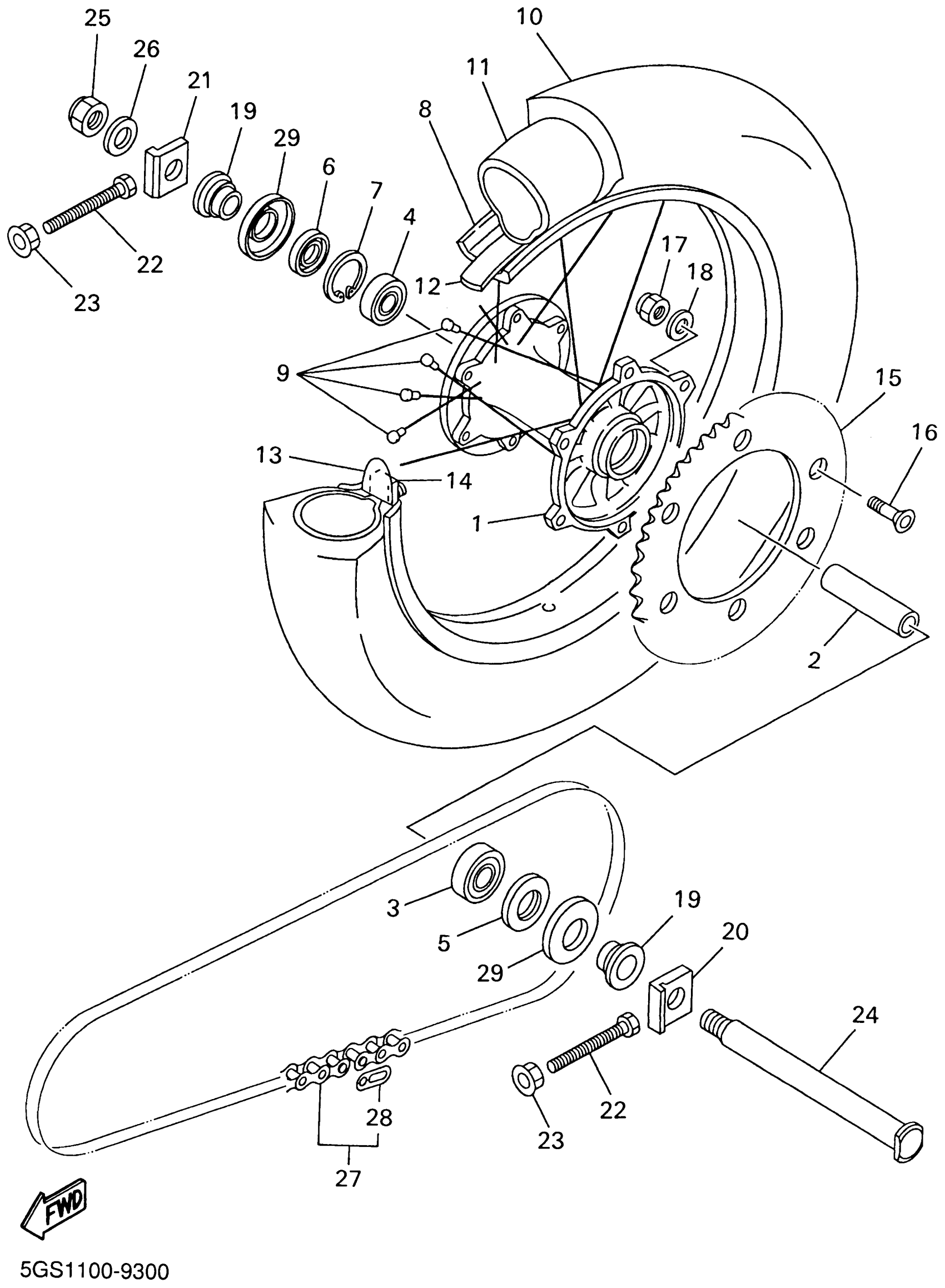

Yamaha WR426FN (WR426F) 5NG1 2001 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5ET-25311-00-00

$311.99

2

SPACER, BEARING

5ET-25317-00-00

$49.99

3

BEARING(89A)

93306-27206-00

$70.99

4

BEARING(85G)

93306-07202-00

$38.99

5

OIL SEAL

93106-30044-00

$12.49

6

OIL SEAL

93106-30045-00

$10.49

7

CIRCLIP

99009-45500-00

$2.17

8

RIM (2.15-18)

94421-18610-00

Unavailable

9

SPOKE SET, REAR

5GS-25304-00-00

$178.99

10

110/100-18 64M DUN D739

94111-18008-00

Unavailable

11

TUBE (5A8)

94212-18188-00

$35.99

12

BAND, RIM (2J4)

94340-18086-00

$17.99

13

SPACER, BEAD

3JE-25394-00-00

$37.99

14

DAMPER

4XM-25364-00-00

$7.99

15

SPROCKET, DRIVEN (48T)

5GS-25448-50-00

$47.99

15

SPROCKET, DRIVEN (50T)

5TJ-25450-80-00

Unavailable

15

SPROCKET, DRIVEN (52T)

5TJ-25452-80-00

Unavailable

16

BOLT(3RB)

90109-081G1-00

Unavailable

17

NUT, SELF-LOCKING

90185-08169-00

Unavailable

18

WASHER (853)

90201-08326-00

Unavailable

19

COLLAR, WHEEL

5ET-25383-00-00

Unavailable

20

PULLER, CHAIN 1

5ET-25388-00-00

Unavailable

21

PULLER, CHAIN 2

5ET-25389-00-00

Unavailable

22

BOLT(4SR)

90101-08777-00

Unavailable

23

NUT(55X)

90179-08491-00

Unavailable

24

AXLE, WHEEL

5ET-25381-00-00

Unavailable

25

NUT, SELF-LOCKING

90185-20002-00

Unavailable

26

WASHER, PLATE

90201-20020-00

Unavailable

27

CHAIN (D.I.D.520VM-114LL)

94581-76114-00

Unavailable

28

. JOINT, CHAIN

94681-76001-00

Unavailable

29

COVER, HUB DUST

5ET-25367-00-00

Unavailable
