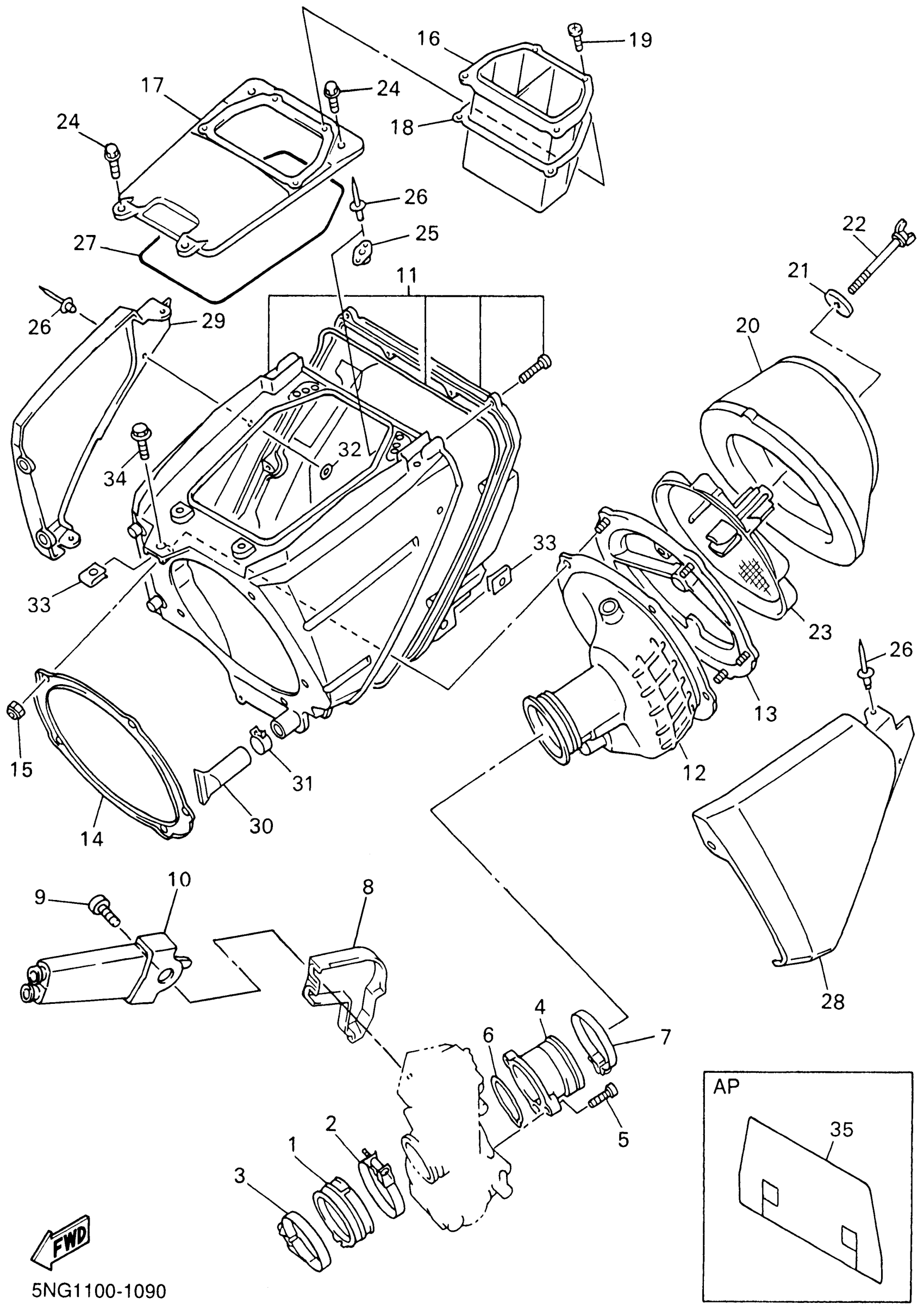

Yamaha WR426FN (WR426F) 5NG1 2001 INTAKE Diagram
#
4
JOINT, AIR FILTER 1
5JG-1440F-01-00
Unavailable
8
COVER 1
5JG-14293-01-00
Unavailable
9
BOLT
5JG-14428-00-00
Unavailable
10
CAP
5NG-14169-00-00
Unavailable
11
AIR CLEANER CASE ASSY
5JG-14401-00-00
Unavailable
12
JOINT, AIR CLEANER 1
5JG-14453-00-00
Unavailable
13
HOLDER,GUIDE
3JD-14459-01-00
Unavailable
14
PLATE
5MV-14477-00-00
Unavailable
16
DUCT
5BF-14437-00-00
Unavailable
17
COVER, CLEANER CASE 1
5BF-1441A-10-00
Unavailable
18
SEAL
5BF-14452-00-00
Unavailable
19
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
20
ELEMENT, AIR CLEANER
4XM-14451-01-00
Unavailable
21
WASHER (4H7)
90209-06096-00
Unavailable
22
BOLT, WING
90122-06005-00
Unavailable
23
GUIDE
5BE-14458-10-00
Unavailable
24
SCREW, OVAL FILLISTER (7X9)
90146-06014-00
Unavailable
25
STAY 1
5BF-14493-00-00
Unavailable
26
RIVET (813)
90267-32070-00
Unavailable
27
SEAL
51Y-14462-00-00
Unavailable
28
COVER, CLEANER CASE 1
5BE-1441A-10-00
Unavailable
29
COVER, CLEANER CASE 2
5BE-1441E-10-00
Unavailable
30
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
31
CLIP(3TB)
90467-17128-00
Unavailable
32
WASHER, PLATE 8077743700
90201-03313-00
Unavailable
33
NUT, SPRING (26H)
90183-06023-00
Unavailable
34
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
35
COVER 1
5JG-14417-00-00
Unavailable
