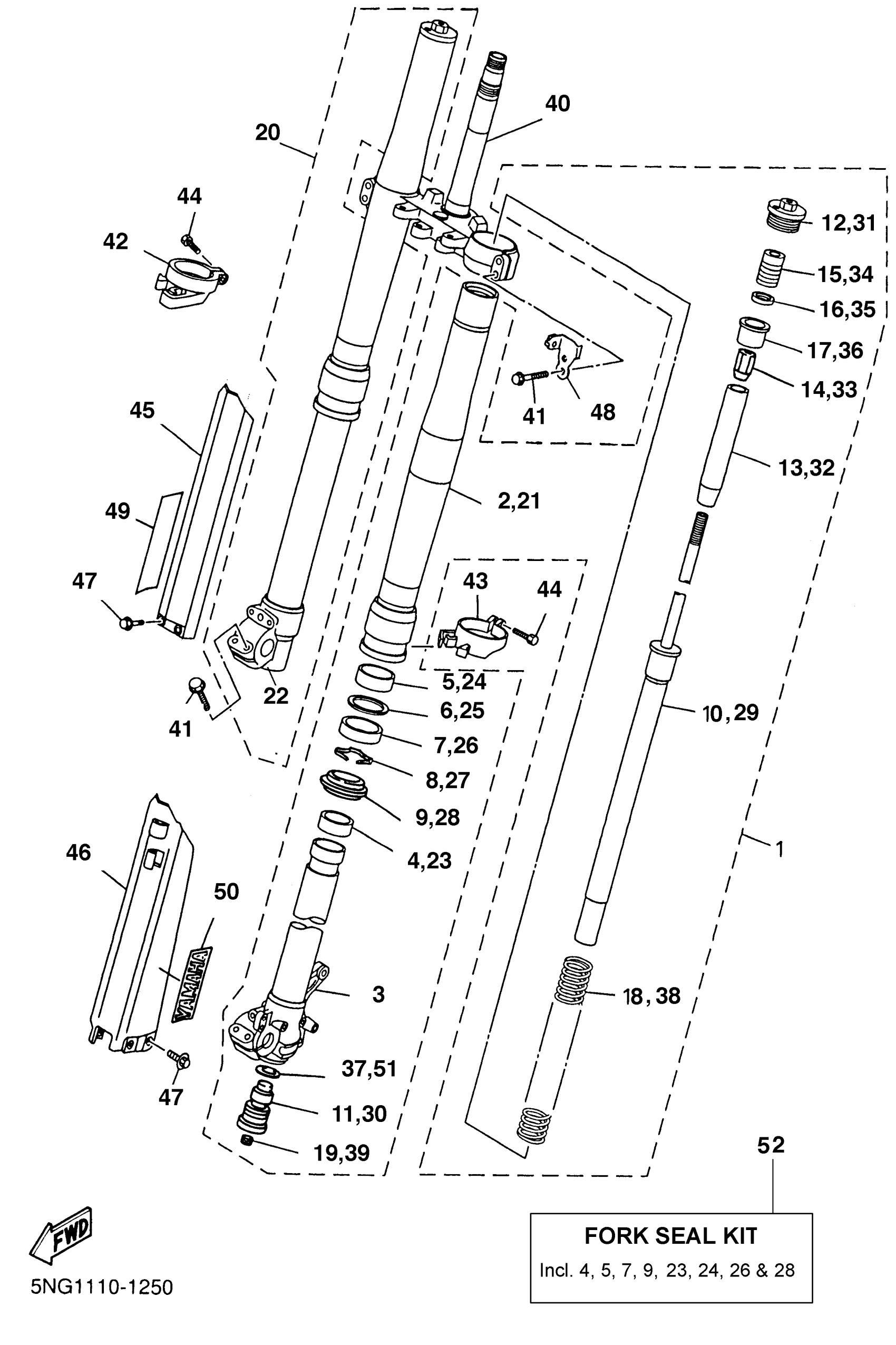

Yamaha WR426FN (WR426F) 5NG1 2001 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5NG-23102-00-00

Unavailable

2

. TUBE, OUTER (RIGHT)

5HD-23136-L0-00

Unavailable

3

. INNER TUBE COMP 2

5DH-23120-L0-00

Unavailable

4

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

5

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

6

WASHER, OIL SEAL

4SS-23146-L0-00

$7.99

7

OIL SEAL

5UN-23145-L0-00

$22.99

7

OIL SEAL

5UN-23145-L0-00

$22.99

8

RING, SNAP

4SS-23153-L0-00

$7.99

9

SEAL, DUST

5HD-23144-L0-00

$30.99

10

. CYLINDER COMP, FRONT FORK

5MV-23170-L0-00

Unavailable

11

. VALVE COMP

5NG-2316A-00-00

Unavailable

12

. BOLT, CAP

5MV-23111-L0-00

Unavailable

13

SEAT, SPRING UPPER

5DH-23142-L0-00

$37.99

14

. NUT, SPECIAL

5HD-23393-L0-00

Unavailable

15

RUBBER

5DH-23195-L0-00

Unavailable

16

WASHER, SPRING UPPER

5DH-23149-L0-00

Unavailable

17

. SPACER

5DH-23118-L0-00

Unavailable

18

SPRING,FRT FRK

5GR-23141-L0-00

Unavailable

19

PLUG

3JD-2312G-L0-00

Unavailable

20

FRONT FORK ASSY (R.H)

5NG-23103-00-00

Unavailable

21

. TUBE, OUTER (RIGHT)

5HD-23136-L0-00

Unavailable

22

INNER TUBE COMP.1

5BF-23110-L0-00

Unavailable

23

PISTON, FRONT FORK

5ET-23171-L0-00

$21.99

24

METAL, SLIDE 1

5ET-23125-L0-00

$35.99

25

WASHER, OIL SEAL

4SS-23146-L0-00

$7.99

26

OIL SEAL

5UN-23145-L0-00

$22.99

26

OIL SEAL

5UN-23145-L0-00

$22.99

27

RING, SNAP

4SS-23153-L0-00

$7.99

28

SEAL, DUST

5HD-23144-L0-00

$30.99

29

. CYLINDER COMP, FRONT FORK

5MV-23170-L0-00

Unavailable

30

. VALVE COMP

5NG-2316A-00-00

Unavailable

31

. BOLT, CAP

5MV-23111-L0-00

Unavailable

32

SEAT, SPRING UPPER

5DH-23142-L0-00

$37.99

33

. NUT, SPECIAL

5HD-23393-L0-00

Unavailable

34

RUBBER

5DH-23195-L0-00

Unavailable

35

WASHER, SPRING UPPER

5DH-23149-L0-00

Unavailable

36

. SPACER

5DH-23118-L0-00

Unavailable

37

GASKET

4SS-23158-L0-00

Unavailable

38

SPRING,FRT FRK

5GR-23141-L0-00

Unavailable

39

PLUG

3JD-2312G-L0-00

Unavailable

40

UNDER BRACKET COMP.

5GS-23340-50-00

Unavailable

41

BOLT 1

5MV-23346-L0-00

Unavailable

42

PROTECTER GUIDE COMP., 2

4SS-2314G-L0-00

Unavailable

43

PROTECTER GUIDE COMP., 1

5DH-2314F-L0-00

Unavailable

44

BOLT 1

4SS-23346-L0-00

Unavailable

45

PROTECTOR COMP., 2

5BF-2314J-00-00

Unavailable

46

PROTECTER COMP., 1

5DH-2314H-00-00

Unavailable

47

BOLT 2

3SP-23356-L0-00

Unavailable

48

GUIDE, CABLE

5HC-2331E-00-00

Unavailable

49

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

50

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

51

GASKET

4SS-23158-L0-00

Unavailable

52

FORK SEAL KIT (TWO FORKS)

5ET-W003B-00-00

Unavailable
