Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

FENDER, REAR

5BF-21611-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

BOLT, WITH WASHER(3FC)

90119-06163-00

$10.49

8

GROMMET (16R)

90480-14329-00

$8.49

9

NUT, SPRING (26H)

90183-06023-00

$9.49

10

COLLAR(4EW)

90387-0701A-00

$9.49

11

GUARD, FLAP

5BE-21642-00-00

$45.99

12

BOLT, FLANGE

95817-06016-00

$2.75

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM 1

5NG-2163G-09-00

Unavailable

17

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

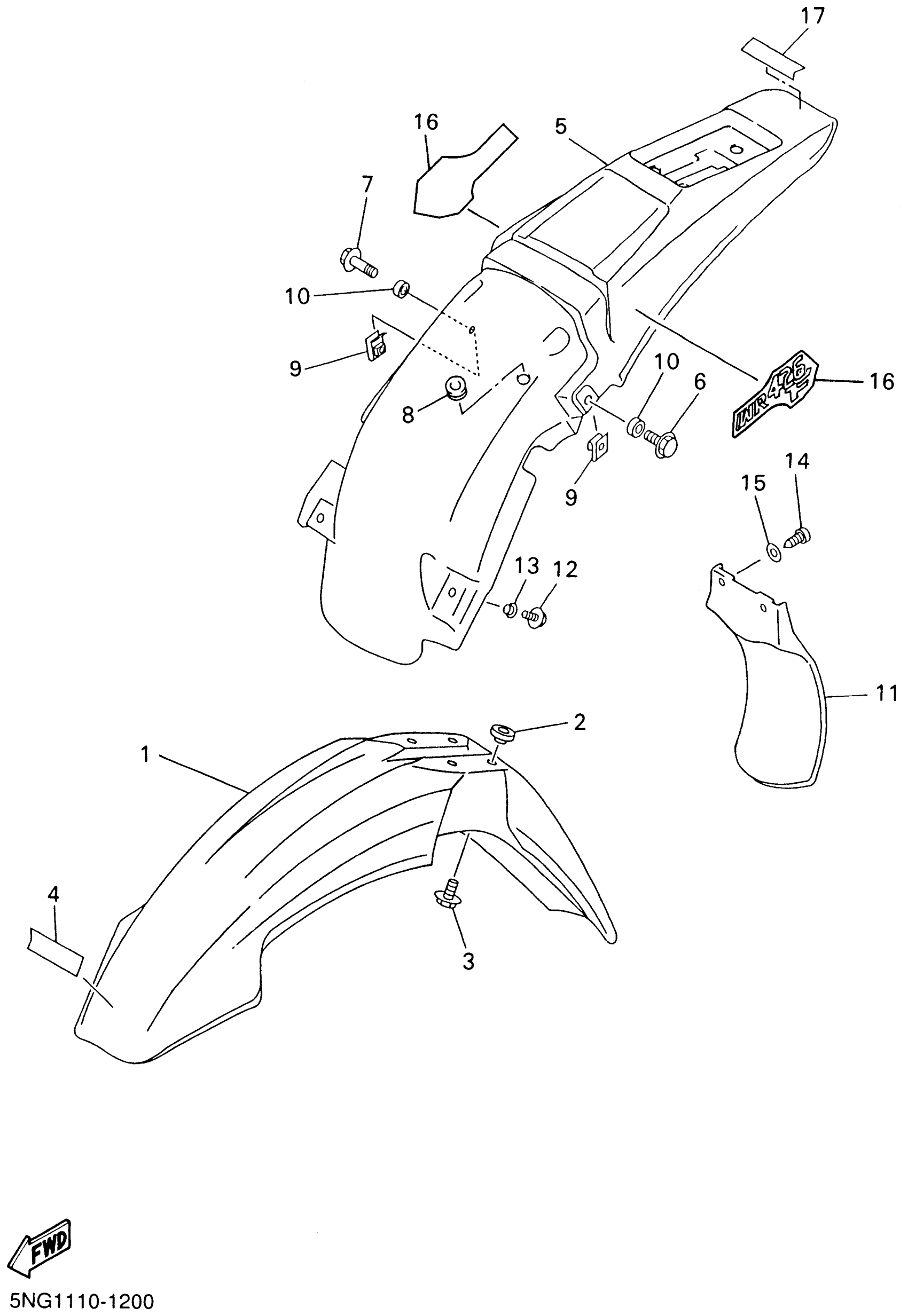

Yamaha WR426FN (WR426F) 5NG1 2001 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

FENDER, REAR

BOLT, FLANGE(4MY)

BOLT, WITH WASHER(3FC)

GROMMET (16R)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

BOLT, FLANGE

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM 1

EMBLEM YAMAHA
