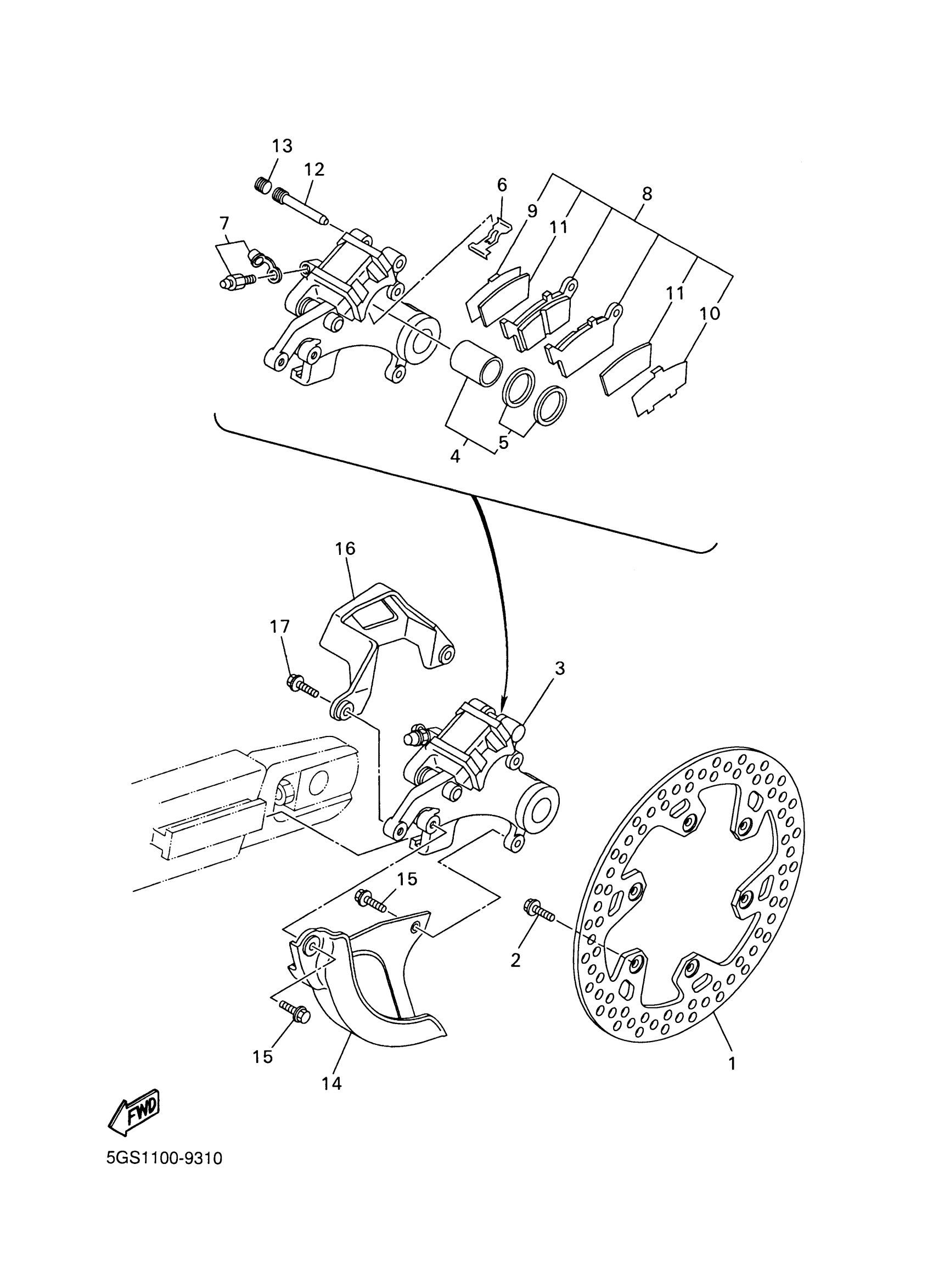

Yamaha WR400FM (WR400F) 5GS5 2000 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

5DH-2582W-00-00

Unavailable

BOLT, FLANGE

90105-06109-00

$9.49

CALIPER ASSY, REAR 2

5GR-2580W-00-00

Unavailable

PISTON ASSY, CALIPER

5ET-W0057-50-00

$67.99

CALIPER SEAL KIT

4ES-W0047-00-00

$19.99

SUPPORT, PAD

5DH-25919-50-00

$20.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT 2

5GR-W0046-00-00

$42.99

. SHIM, CALIPER

5DH-25828-50-00

Unavailable

. SHIM, CALIPER

5DH-25827-50-00

Unavailable

.. INSULATOR, HEAT

5GR-22898-50-00

Unavailable

PIN, PAD

8CR-25924-00-00

$14.49

PLUG

5DH-25916-00-00

$9.99

PROTECTOR, DISK BRAKE

5DH-25718-01-00

$25.99

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

PROTECTOR

4GY-27491-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable
