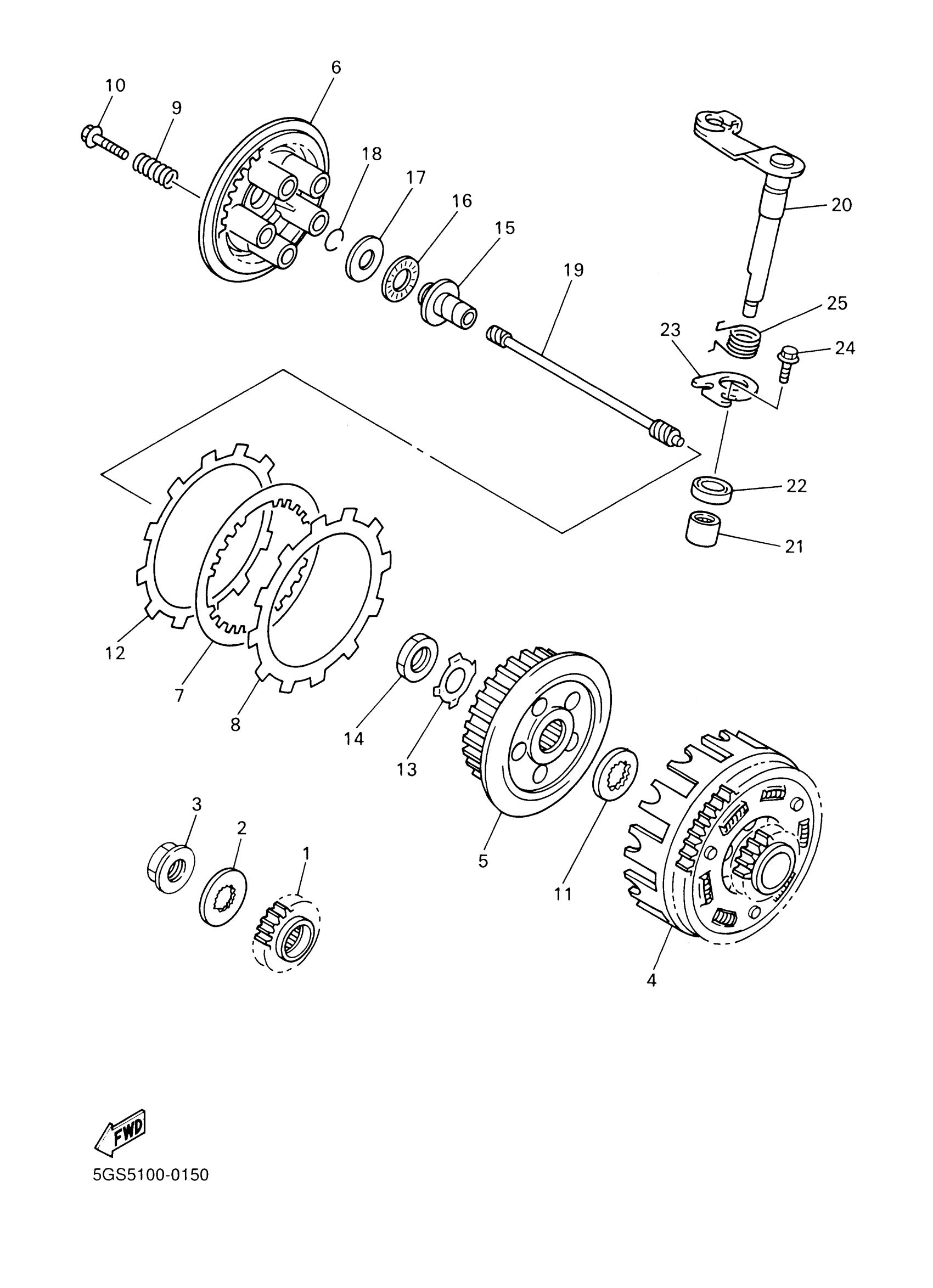

Yamaha WR400FM (WR400F) 5GS5 2000 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5JG-16111-00-00

Unavailable

2

WASHER, LOCK

90215-21001-00

$9.49

3

NUT

90179-20001-00

$17.99

4

PRIMARY DRIVEN GEAR COMP.

5BE-16150-00-00

Unavailable

5

BOSS, CLUTCH

2JN-16371-00-00

Unavailable

6

PLATE, PRESSURE 1

3YF-16351-00-00

$68.99

7

PLATE, CLUTCH 2

360-16325-10-00

$35.99

8

PLATE, FRICTION

5BE-16321-00-00

$23.99

9

SPRING COMPRESSION240163330000

90501-23141-00

$14.99

10

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

11

PLATE, THRUST 1

2JN-16154-00-00

$20.99

12

PLATE, FRICTION 2

5BE-16331-00-00

$24.99

13

WASHER, LOCK (34L)

90215-20231-00

$4.41

14

NUT (34L)

90170-20327-00

$18.99

15

ROD, PUSH 1

5BE-16356-00-00

$112.99

16

BEARING, THRUST (713)

93340-21505-00

Unavailable

17

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

18

CIRCLIP (4G0)

93440-10085-00

Unavailable

19

ROD, PUSH 2

5BE-16357-00-00

Unavailable

20

PUSH LEVER COMP.

5BE-16381-00-00

Unavailable

21

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

22

OIL SEAL (4G0)

93102-12224-00

Unavailable

23

PLATE, SEAT

4JT-16384-00-00

Unavailable

24

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

25

SPRING, TORSION

90508-142B5-00

Unavailable
