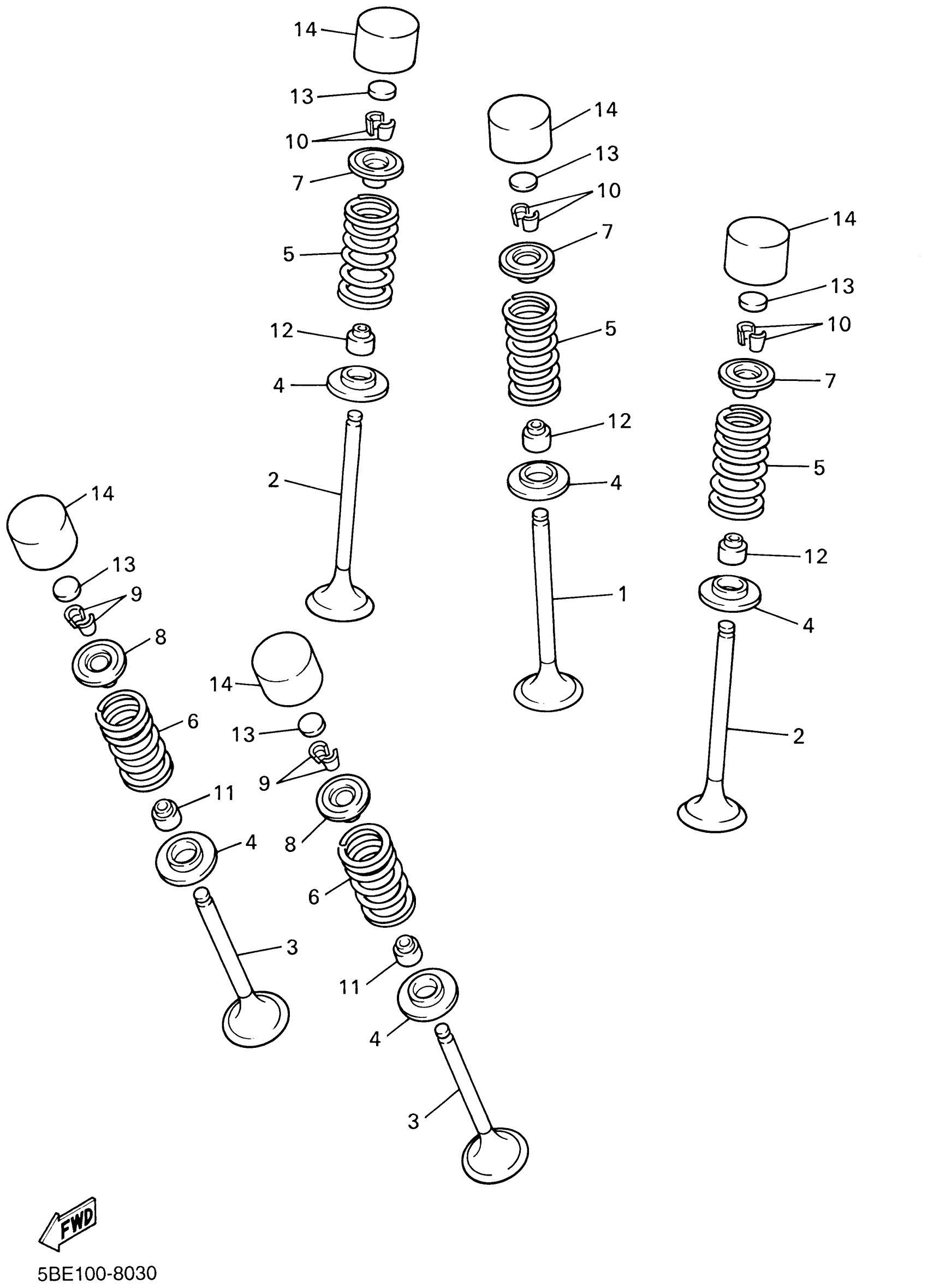

Yamaha WR400FL (WR400F) 5GS1 1999 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5BE-12111-10-00

$39.53

2

VALVE, INTAKE 2

5BE-12112-10-00

$37.48

3

VALVE, EXHAUST

5BE-12121-10-00

$70.21

4

SEAT, VALVE SPRING 2

3GM-12126-00-00

$3.32

5

SPRING, VALVE INNER

5BE-12113-01-00

Unavailable

6

SPRING, VALVE OUTER

5GR-12114-00-00

Unavailable

7

RETAINER, VALVE SPRING

5BE-12117-00-00

$13.33

8

RETAINER, VALVE SPRING

4GY-12117-00-00

$16.59

9

COTTER, VALVE

1AA-12118-00-00

$9.62

10

COTTER, VALVE

1WG-12118-00-00

$5.50

11

SEAL, VALVE STEM

33M-12119-00-00

$13.33

12

SEAL, VALVE STEM

4SV-12119-00-00

$18.53

13

PAD, ADJUSTING

3LD-12168-00-00

$14.64

13

PAD, ADJUSTING

3LD-12168-20-00

$10.44

13

PAD, ADJUSTING

3LD-12168-40-00

$15.59

13

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$10.03

13

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.94

13

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.41

13

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$13.23

13

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$14.23

13

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.56

13

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.89

13

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

13

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

13

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

13

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

13

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

13

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$14.14

13

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$14.06

13

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

13

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$10.03

13

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

13

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

$8.58

13

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

$14.05

14

LIFTER, VALVE

3FV-12153-00-00

Unavailable

14

LIFTER, VALVE

3FV-12153-19-00

Unavailable

14

LIFTER, VALVE

3FV-12153-20-00

Unavailable
