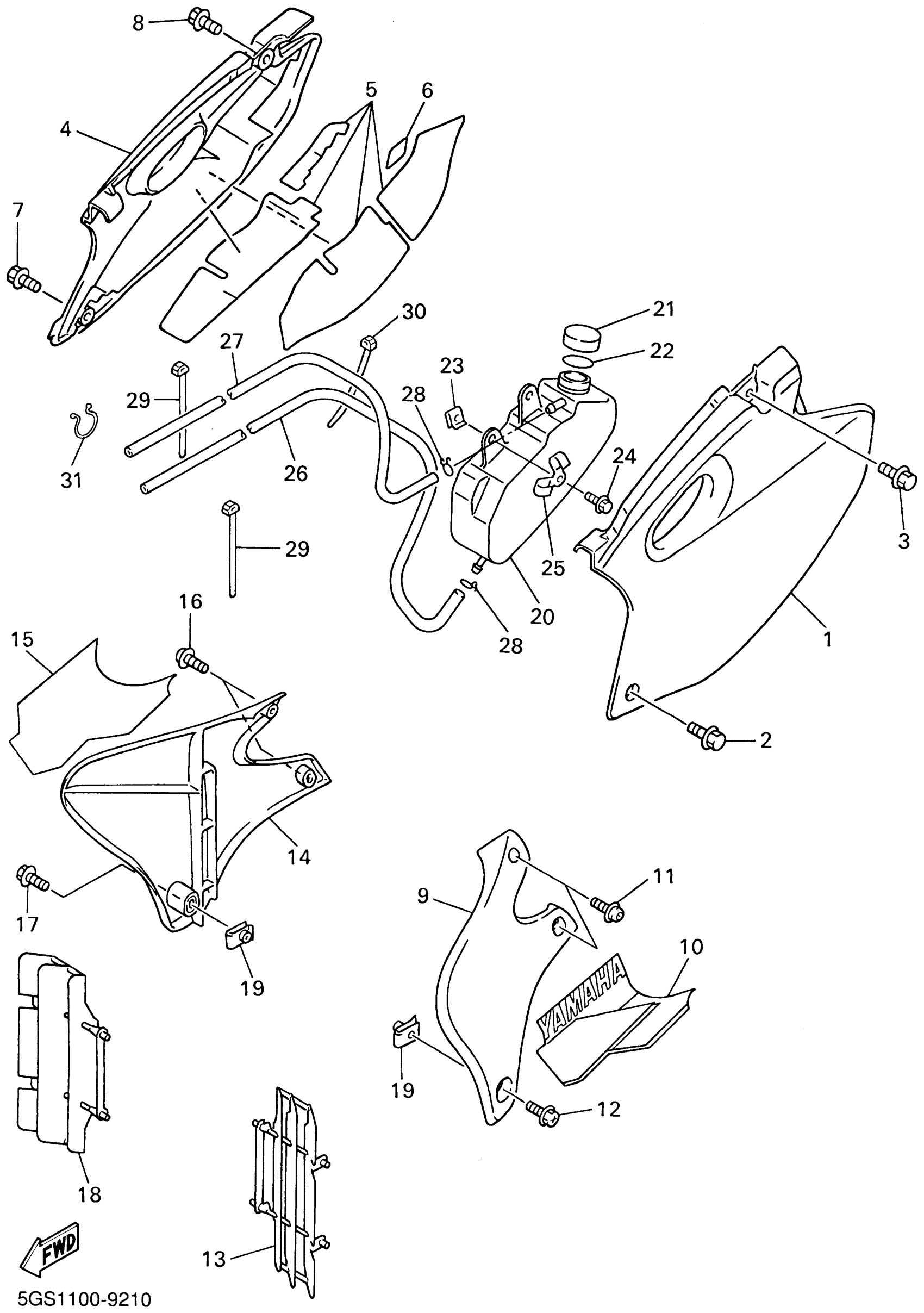

Yamaha WR400FL (WR400F) 5GS1 1999 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5BF-21711-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

COVER, SIDE 2

5BF-21721-00-00

Unavailable

5

INSULATOR, SIDE COVER

5NG-2174A-50-00

$42.99

6

SEAL 1

3FY-21575-01-00

$10.99

7

BOLT, FLANGE

95817-06016-00

$2.75

8

BOLT, WITH WASHER

90119-08238-00

$4.29

9

COVER, SIDE 3

5BE-21731-10-00

Unavailable

10

GRAPHIC 1

5GS-2173E-00-00

Unavailable

11

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

12

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

13

PANEL 1

5BF-2172A-00-00

Unavailable

14

COVER, SIDE 4

5BE-21741-10-00

Unavailable

15

GRAPHIC 2

5GS-2173F-00-00

Unavailable

16

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

17

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

18

PANEL 1

5BF-2172A-00-00

Unavailable

19

NUT, SPRING(4ES)

90183-06069-00

Unavailable

20

TANK, RECOVERY

5GS-21871-00-00

Unavailable

21

CAP

26H-21875-00-00

Unavailable

22

GASKET

26H-21874-00-00

Unavailable

23

NUT, SPRING (26H)

90183-06023-00

Unavailable

24

BOLT, WITH WASHER

90119-06226-00

Unavailable

25

CLAMP, HOSE

5BF-21823-00-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

27

TUBE, FLEXIBLE

91A21-05105-00

Unavailable

28

CLIP (8L2)

90467-08017-00

Unavailable

29

CLAMP

90464-13077-00

Unavailable

30

CLAMP(4FM)

90464-15195-00

Unavailable

31

CLAMP (3Y2)

90464-16039-00

Unavailable
