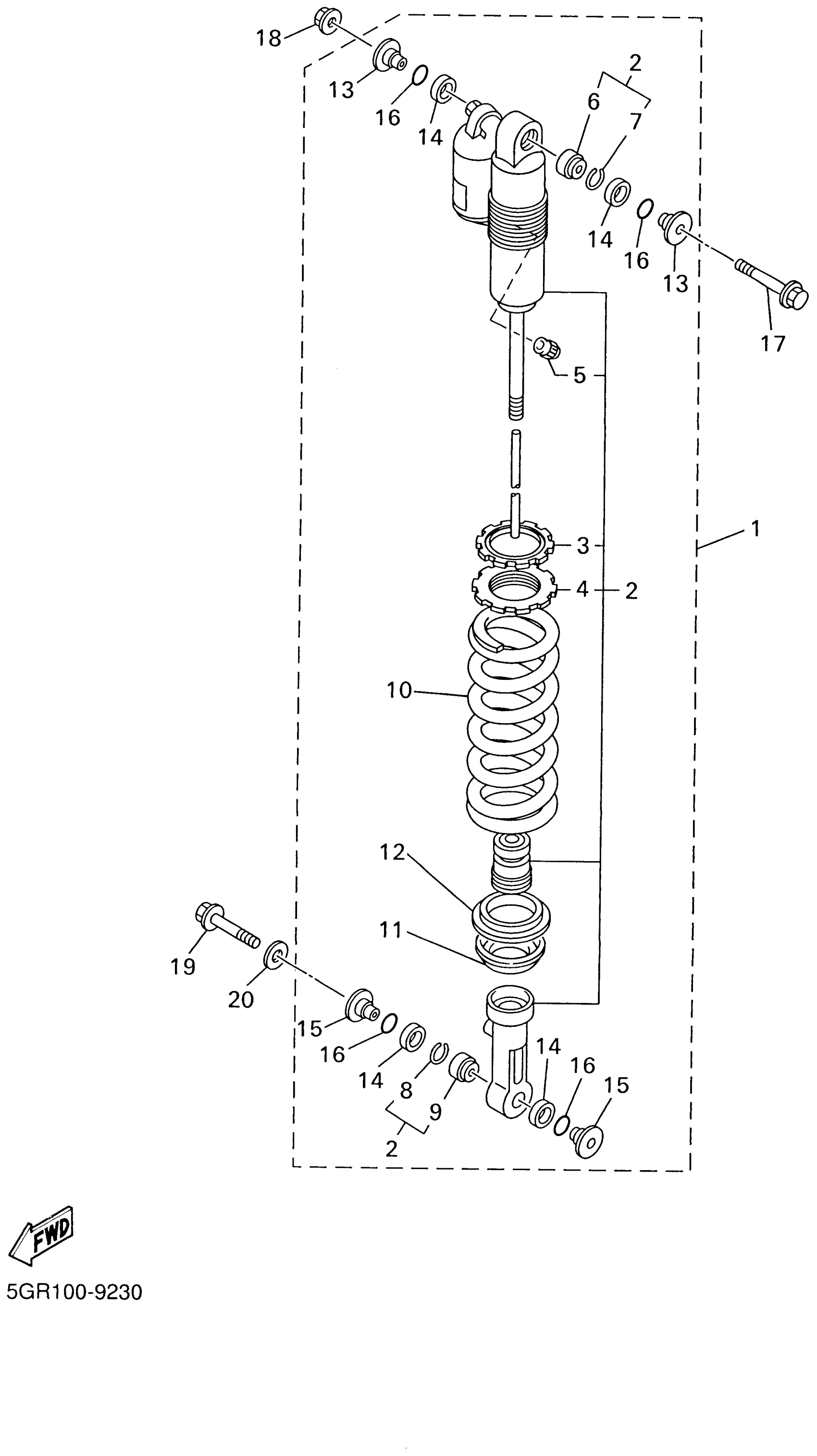

Yamaha WR400FL (WR400F) 5GS1 1999 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

5NG-22210-40-00

Unavailable

2

. DAMPER SUB ASSEMBLY

5GS-22201-00-00

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

4

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

5

CAP, AIR VALVE

509-23184-L0-00

$6.99

6

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

7

CIRCLIP

5DH-23183-00-00

$5.49

8

CIRCLIP

5DH-23183-00-00

$5.49

9

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

10

SPRING (K=5.0)

5NG-22212-60-00

Unavailable

11

. GUIDE, SPRING 1

5DH-22214-00-00

Unavailable

12

. GUIDE, SPRING 2

5DH-22224-00-00

Unavailable

13

. COLLAR, DISTANCE

5DH-22253-00-00

Unavailable

14

SEAL, DUST

3JE-22475-00-00

$13.49

15

. COLLAR, DISTANCE

4EW-22253-00-00

Unavailable

16

SEAL, RING

4EW-22474-00-00

Unavailable

17

B0LT,FLANGE (1KT)

90105-10323-00

Unavailable

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

19

BOLT, WASHER BASED(3XJ)

90105-10614-00

Unavailable

20

WASHER, PLATE

90201-112U6-00

Unavailable
