Description

Price

1

FENDER, FRONT

4DA-21511-20-00

Unavailable

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM, YAMAHA

99241-00080-00

$13.99

5

FENDER, REAR

5BF-21611-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

7

BOLT, WITH WASHER(3FC)

90119-06163-00

$10.49

8

GROMMET (16R)

90480-14329-00

$8.49

9

NUT, SPRING (26H)

90183-06023-00

$9.49

10

COLLAR(4EW)

90387-0701A-00

$9.49

11

GUARD, FLAP

5BE-21642-00-00

$45.99

12

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

13

COLLAR

90387-06009-00

$10.49

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM 1

5GS-2163G-00-00

Unavailable

17

EMBLEM, YAMAHA

99241-00080-00

$13.99

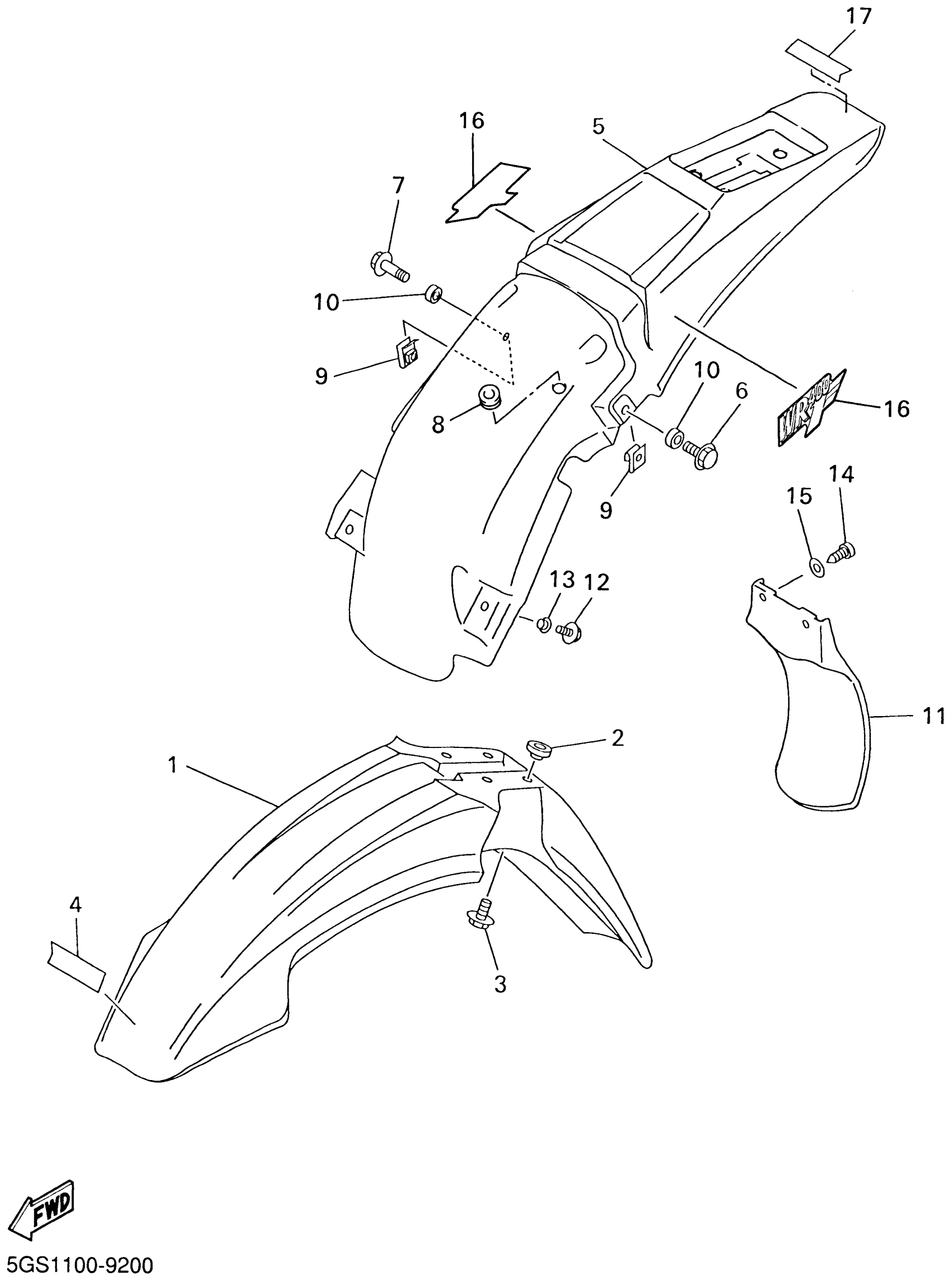

Yamaha WR400FL (WR400F) 5GS1 1999 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM, YAMAHA

FENDER, REAR

BOLT, FLANGE(4MY)

BOLT, WITH WASHER(3FC)

GROMMET (16R)

NUT, SPRING (26H)

COLLAR(4EW)

GUARD, FLAP

BOLT, FLANGE(4DU)

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM 1

EMBLEM, YAMAHA
