CARBURETOR

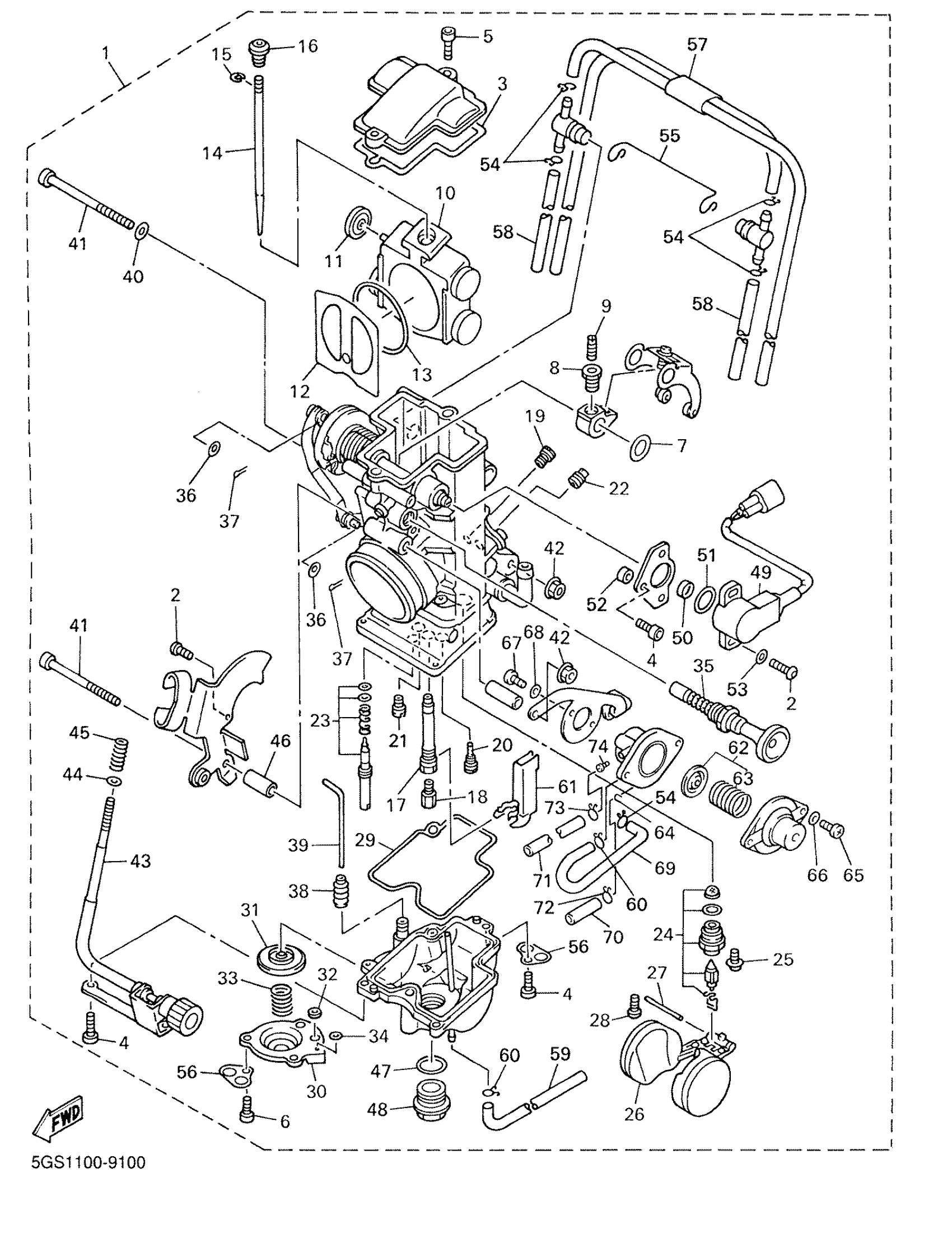

Yamaha WR400FL (WR400F) 5GS1 1999 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5GS-14101-02-00
Unavailable
2
. BOLT
3TJ-14496-40-00
Unavailable
3
. GASKET
5BE-14959-00-00
Unavailable
8
. NUT, CROWN
3TJ-14393-40-00
Unavailable
9
. SCREW, ADJUST
3TJ-14522-40-00
Unavailable
10
. VALVE ASSEMBLY
5BE-14388-00-00
Unavailable
14
. NEEDLE (#DTQ)
5BF-14916-D1-00
Unavailable
14
. NEEDLE (#DTJ)
5BF-14916-DJ-00
Unavailable
14
. NEEDLE (#DTK)
5BF-14916-DK-00
Unavailable
14
. NEEDLE (#DTL)
5BF-14916-DL-00
Unavailable
14
. NEEDLE (#DTM)
5BF-14916-DM-00
Unavailable
14
. NEEDLE (#DTN)
5BF-14916-DN-00
Unavailable
14
. NEEDLE (#DTP)
5BF-14916-DP-00
Unavailable
15
CLIP
3TJ-14159-40-00
Unavailable
16
. SCREW, ADJUST
5BE-14521-00-00
Unavailable
17
. JET, NEEDLE
5BE-14947-00-00
Unavailable
18
JET, MAIN (#160)
4MX-14943-39-00
Unavailable
18
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
18
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
18
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
18
JET, MAIN (#180)
4MX-14943-43-00
Unavailable
18
JET, MAIN (#158)
4MX-14943-89-00
Unavailable
18
JET, MAIN (#162)
4MX-14943-90-00
Unavailable
18
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
18
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
18
JET, MAIN (#178)
4MX-14943-93-00
Unavailable
19
JET (#200)
3TJ-14943-47-00
Unavailable
20
. JET (#40)
3TJ-14948-03-00
Unavailable
20
. JET (#42)
3TJ-14948-04-00
Unavailable
20
JET (#45)
3TJ-14948-05-00
Unavailable
20
. JET (#48)
3TJ-14948-06-00
Unavailable
20
. JET (#50)
3TJ-14948-07-00
Unavailable
21
. JET (#55)
3TJ-1494F-09-00
Unavailable
21
. JET (#58)
3TJ-1494F-10-00
Unavailable
21
JET 1 (#60)
3TJ-1494F-11-00
Unavailable
21
JET
3TJ-1494F-12-00
Unavailable
21
JET
3TJ-1494F-13-00
Unavailable
21
JET
3TJ-1494F-14-00
Unavailable
22
. JET (#75)
7A9-14943-17-00
Unavailable
23
PILOT SCREW SET
3TJ-14105-40-00
Unavailable
24
NEEDLE VALVE SET
5BE-14107-00-00
Unavailable
25
. SCREW
5BE-14216-00-00
Unavailable
26
. FLOAT
5BE-14985-00-00
Unavailable
27
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
28
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
29
GASKET, FLOAT CHAMBER
3TJ-14984-40-00
Unavailable
30
COVER 1
3TJ-14293-40-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-17-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-18-00
Unavailable
31
DIAPHRAGM ASSY
5JG-14940-19-00
Unavailable
32
GASKET
3TJ-14536-40-00
Unavailable
33
SPRING, DIAPHRAGM
3TJ-14933-40-00
Unavailable
34
. O-RING
6H4-14561-00-00
Unavailable
35
. PLUNGER, STARTER
5BE-14171-00-00
Unavailable
36
. WASHER, PLATE
90202-03052-00
Unavailable
37
. PIN, CLEVIS
3TJ-14365-40-00
Unavailable
38
CAP
5BE-14968-00-00
Unavailable
39
ROD, STARTER
5BE-14379-01-00
Unavailable
40
. WASHER
5BE-14557-00-00
Unavailable
41
. BOLT, HOLDING
5BE-14162-00-00
Unavailable
42
NUT, FLANGE
95704-05500-00
Unavailable
43
. SCREW, THROTTLE
5BE-14922-01-00
Unavailable
44
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
45
. SPRING, THROTTLE STOP
4FN-14934-00-00
Unavailable
46
. COLLAR
5BE-14535-00-00
Unavailable
47
O-RING (6E9)
93210-15M52-00
Unavailable
48
. PLUG, SCREW
5BE-14115-00-00
Unavailable
49
. THROTTLE SENSOR ASSEMBLY
5BE-85885-00-00
Unavailable
50
COLLAR
4TV-14534-00-00
Unavailable
51
O-RING
4TV-14562-00-00
Unavailable
52
. COLLAR
5BE-14265-00-00
Unavailable
53
. WASHER
5BE-14596-00-00
Unavailable
54
CLIP
3TJ-14137-40-00
Unavailable
55
. CLIP
5BE-14137-00-00
Unavailable
56
PLATE
5BE-14146-00-00
Unavailable
57
. PIPE
5BE-14197-00-00
Unavailable
58
. PIPE
5BE-14148-00-00
Unavailable
59
. HOSE
5BE-14987-00-00
Unavailable
60
CLIP
5BE-14937-00-00
Unavailable
61
. PLATE
5BE-14346-00-00
Unavailable
62
. DIAPHRAGM ASSEMBLY
5BF-14940-00-00
Unavailable
63
. SPRING, DIAPHRAGM
5BF-14933-00-00
Unavailable
64
. U-RING
5BF-14854-00-00
Unavailable
65
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
66
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
67
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
68
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
69
. PIPE 1
5BF-14871-00-00
Unavailable
70
. PIPE 2
5BF-14872-00-00
Unavailable
71
. PIPE 3
5BF-14873-00-00
Unavailable
72
. CLIP
5BF-14937-00-00
Unavailable
73
CLIP
5BF-14919-00-00
Unavailable
74
JET,AIR SLOW (#90)
5BF-14347-23-00
Unavailable
74
JET,AIR SLOW (#100)
5BF-14347-27-00
Unavailable
