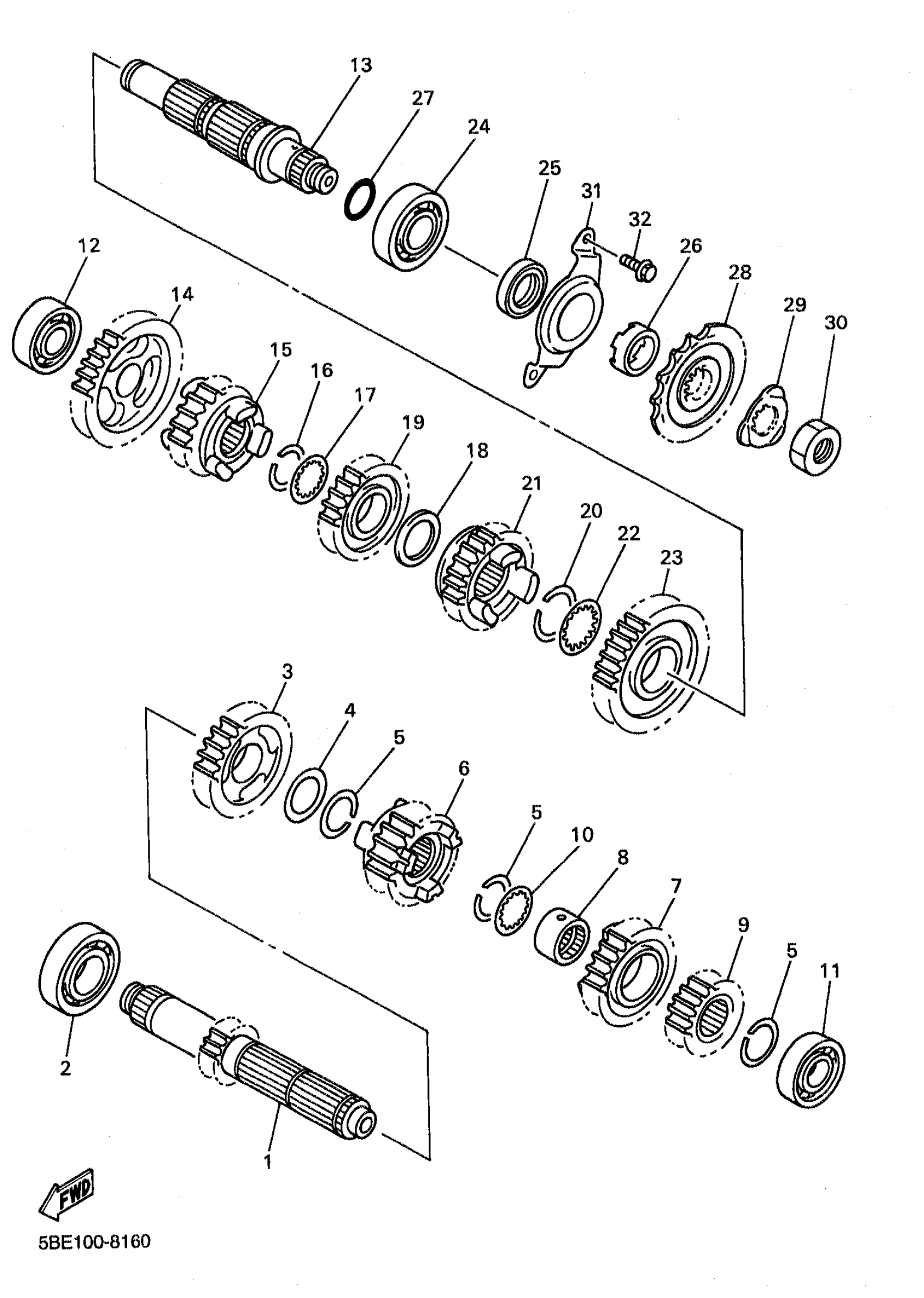

Yamaha WR400FK (WR400F) 1998 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5BF-17411-10-00

Unavailable

2

BEARING

93306-20532-00

$66.99

3

GEAR, 5TH PINION

BF1-17151-00-00

$68.99

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

5BF-17131-21-00

$170.99

7

GEAR, 4TH PINION

5BF-17141-20-00

$170.99

8

COLLAR

90387-2113G-00

$40.99

9

GEAR, 2ND PINION

5BF-17121-00-00

Unavailable

10

WASHER(3VD)

90209-21332-00

$7.49

11

BEARING (34L)

93306-00431-00

$41.99

12

BEARING (5Y1)

93306-00426-00

$42.99

13

DRIVE AXLE ASSY

5BE-17402-00-00

$162.99

14

GEAR, 1ST WHEEL

5BF-17211-00-00

Unavailable

15

GEAR, 5TH WHEEL

BF1-17251-00-00

$73.99

16

CIRCLIP (4L0)

93440-25084-00

$5.60

17

WASHER(3VD)

90209-21332-00

$7.49

18

WASHER, PLATE(59W)

90201-253K0-00

$8.49

19

GEAR, 3RD WHEEL

5BF-17231-00-00

Unavailable

20

CIRCLIP (2H7)

93440-28062-00

Unavailable

21

GEAR, 4TH WHEEL (21T)

5BF-17241-00-00

Unavailable

22

WASHER

90209-26348-00

Unavailable

23

GEAR, 2ND WHEEL (26T)

5BF-17221-00-00

Unavailable

24

BEARING

93306-20593-00

Unavailable

25

OIL SEAL

93102-32480-00

Unavailable

26

COLLAR

90387-2513F-00

Unavailable

27

O-RING

93210-22298-00

Unavailable

28

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

29

WASHER, LOCK(1KT)

90215-21256-00

Unavailable

30

NUT (2K7)

90179-20255-00

Unavailable

31

PLATE, COVER

5GR-17471-10-00

Unavailable

32

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
