Description

Price

1

HUB,REAR

4EW-25311-00-00

Unavailable

2

SPACER(1LX)

90560-20278-00

$29.99

3

BEARING(8AB)

93306-00444-00

$41.99

4

OIL SEAL(39X)

93106-28023-00

$12.49

5

RIM (2.15-18)

94421-18498-00

Unavailable

6

SPOKE SET, REAR

2VN-25304-00-00

Unavailable

7

110/100-18 64M DUN D739

94111-18008-00

Unavailable

8

TUBE (5A8)

94212-18188-00

$35.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

SPACER, BEAD

3JE-25394-00-00

$37.99

11

DAMPER

4XM-25364-00-00

$7.99

12

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25448-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25450-51-00

Unavailable

12

SPROCKET, DRIVEN (52T)

26A-25452-51-00

Unavailable

13

BOLT(3RB)

90109-081G1-00

Unavailable

14

NUT, SELF-LOCKING

90185-08169-00

Unavailable

15

WASHER (853)

90201-08326-00

Unavailable

16

COLLAR

90387-2000B-00

Unavailable

17

COLLAR

90387-2000C-00

Unavailable

18

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

19

BOLT(4SR)

90101-08777-00

Unavailable

20

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

21

AXLE, WHEEL

3JD-25381-01-00

Unavailable

22

NUT, SELF-LOCKING

90185-18009-00

Unavailable

23

WASHER(4PE)

92907-18600-00

Unavailable

24

CHAIN (D.I.D.520VM-114LL)

94581-76114-00

Unavailable

25

. JOINT, CHAIN

94681-76001-00

Unavailable

26

COVER, HUB DUST

4V4-25367-00-00

Unavailable

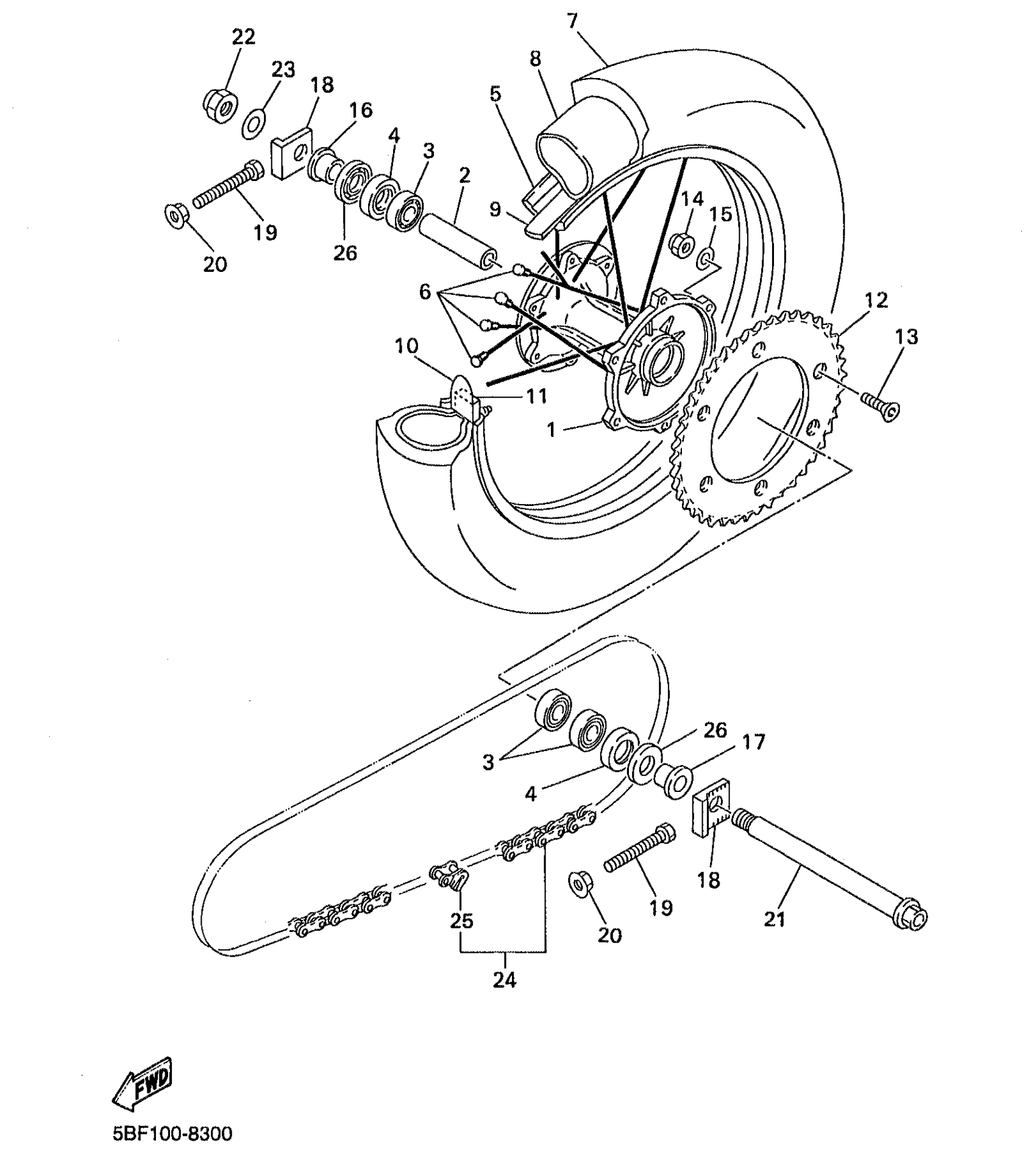

Yamaha WR400FK (WR400F) 1998 REAR WHEEL Diagram

HUB,REAR

SPACER(1LX)

BEARING(8AB)

OIL SEAL(39X)

RIM (2.15-18)

SPOKE SET, REAR

110/100-18 64M DUN D739

TUBE (5A8)

BAND, RIM (2J4)

SPACER, BEAD

DAMPER

SPROCKET, DRIVEN

SPROCKET, DRIVEN

SPROCKET, DRIVEN

SPROCKET, DRIVEN

SPROCKET, DRIVEN (52T)

BOLT(3RB)

NUT, SELF-LOCKING

WASHER (853)

COLLAR

COLLAR

PULLER, CHAIN 1

BOLT(4SR)

NUT, FLANGE(JN5)

AXLE, WHEEL

NUT, SELF-LOCKING

WASHER(4PE)

CHAIN (D.I.D.520VM-114LL)

. JOINT, CHAIN

COVER, HUB DUST
