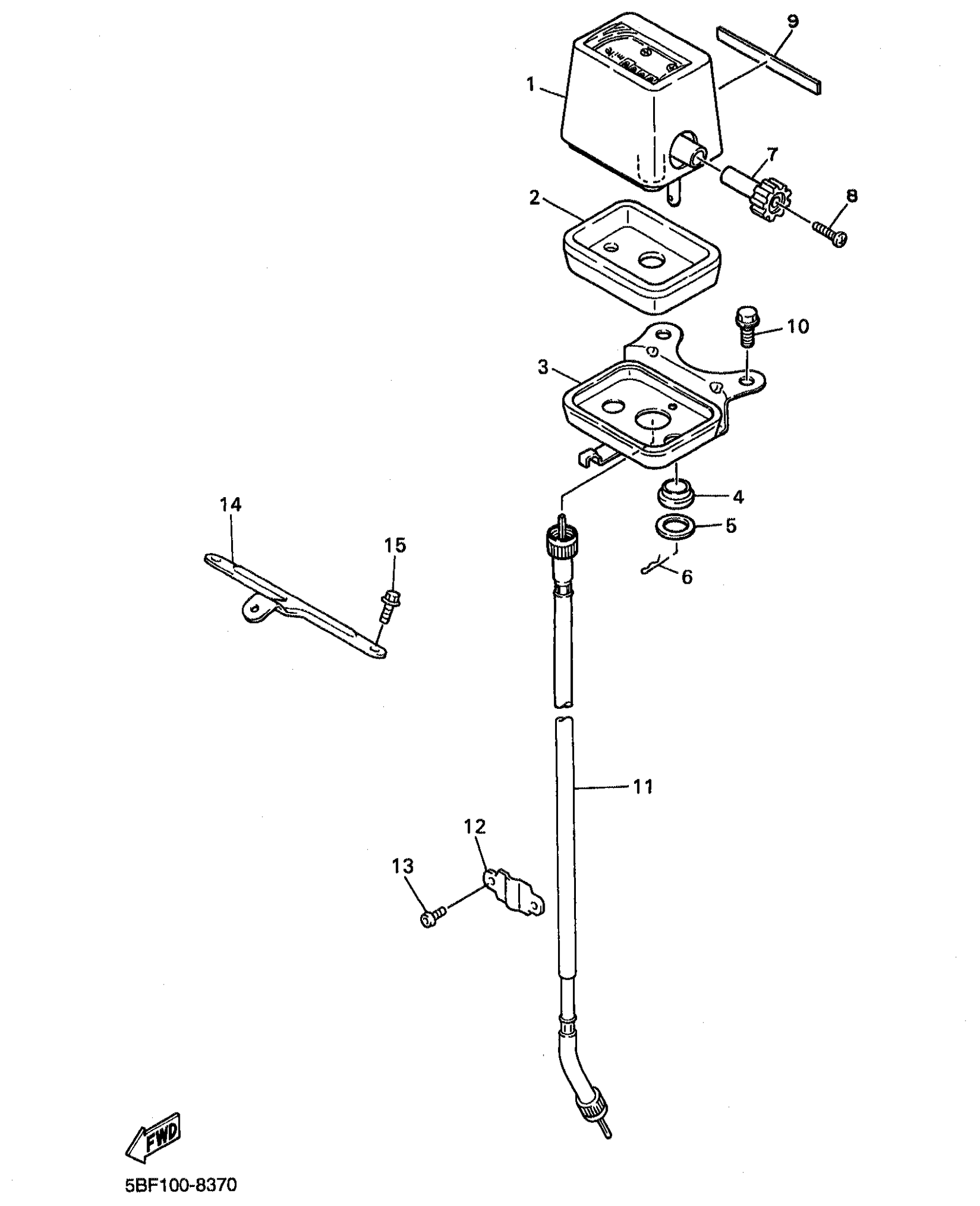

Yamaha WR400FK (WR400F) 1998 METER Diagram

#

Description
Price

1

TRIP METER COMP.

2HR-83505-G0-00

Unavailable

2

DAMPER

4V5-83513-00-00

$14.49

3

BRACKET, METER

2HR-83519-01-00

Unavailable

4

DAMPER 2

1M1-83526-01-00

$4.47

5

WASHER PLATE 829771780000

90201-05033-00

$10.49

6

CLIP (156-83525-00)

90468-10050-00

$3.05

7

KNOB, TRIP METER

11H-83578-00-00

Unavailable

8

SCREW, PAN HEAD (11H)

90157-02031-00

$10.49

9

DAMPER

2HR-83592-00-00

Unavailable

10

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

11

SPEEDOMETER CABLE ASSY

5BF-83550-00-00

Unavailable

12

STAY 3

5BF-2317M-00-00

Unavailable

13

BOLT, BUTTON HEAD

92017-05008-00

Unavailable

14

STAY, HEADLIGHT 2

5BF-84319-00-00

Unavailable

15

BOLT, FLANGE(4MY)

95027-06010-00

$3.29
