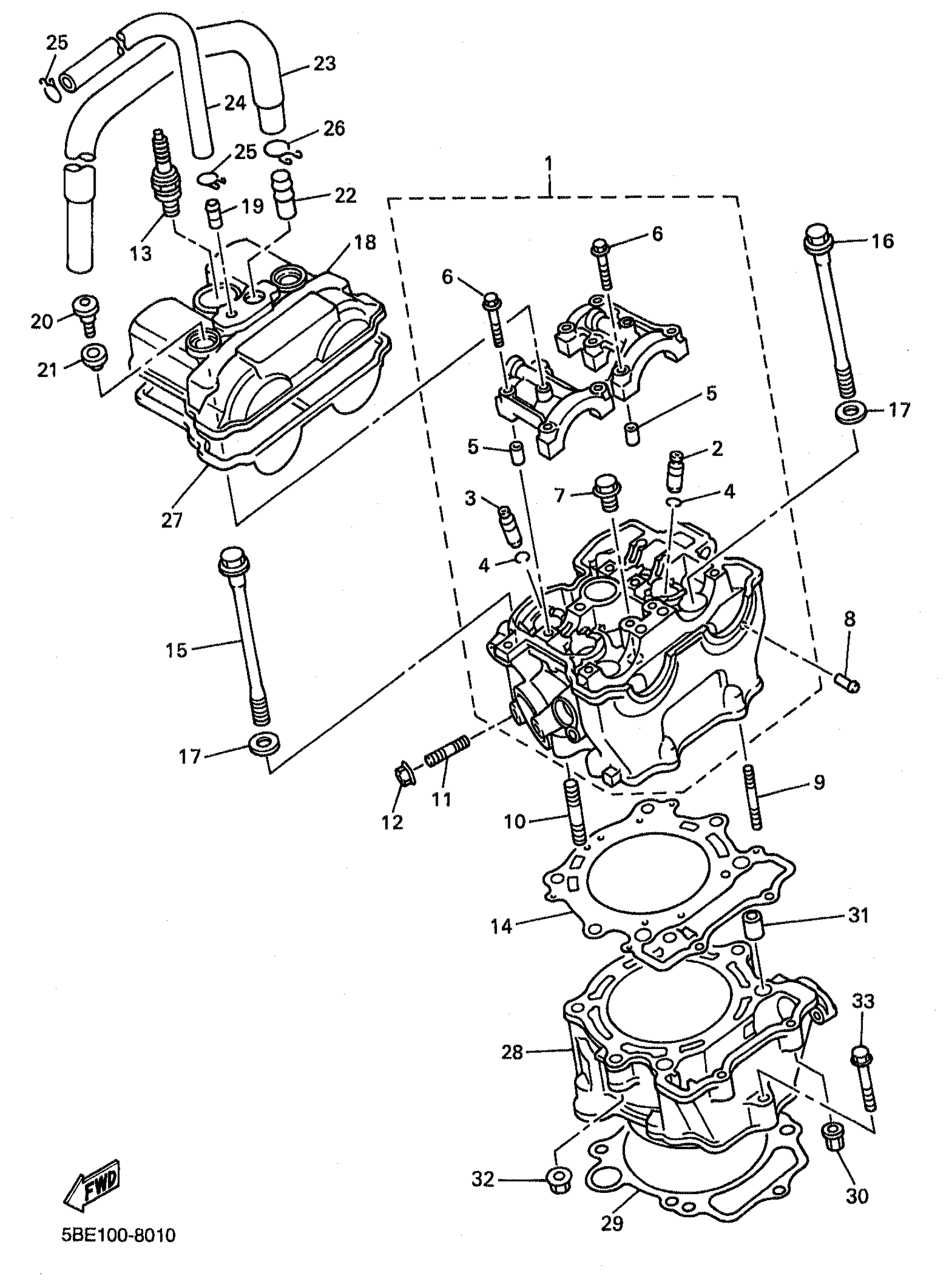

Yamaha WR400FK (WR400F) 1998 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5BE-11102-10-00

Unavailable

2

GUIDE, INTAKE VALVE

5BE-11133-10-00

Unavailable

3

GUIDE, EXHAUST VALVE

5BE-11134-10-00

Unavailable

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

7

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

8

PIPE

5BE-13582-00-00

Unavailable

9

BOLT, STUD (4KG1)

95617-06635-00

$8.49

10

BOLT, STUD 3

95617-08635-00

$5.60

11

BOLT, STUD(2GG)

95617-08620-00

$7.49

12

NUT, FLANGE(JN5)

95707-08500-00

$3.13

13

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

14

GASKET, CYLINDER HEAD 1

5GR-11181-00-00

$86.99

15

BOLT, WASHER BASED

90105-104A7-00

$11.49

16

BOLT, WASHER BASED

90105-106A3-00

Unavailable

17

WASHER, PLATE (26H)

90201-102G9-00

Unavailable

18

COVER, CYLINDER HEAD 1

5BE-11191-00-00

Unavailable

19

PIPE, BREATHER 2

5BE-11167-00-00

Unavailable

20

BOLT(4BP)

90109-066F0-00

Unavailable

21

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

22

PIPE, BREATHER 2

371-11167-01-00

Unavailable

23

PIPE, BREATHER 1

5BE-11166-00-00

Unavailable

24

HOSE (L700)

90445-117F2-00

Unavailable

25

CLIP(1JH)

90467-11106-00

Unavailable

26

CLIP (371)

90467-14015-00

Unavailable

27

GASKET, HEAD COVER 1

5BE-11193-10-00

Unavailable

28

CYLINDER 1

5BE-11311-21-00

Unavailable

29

GASKET, CYLINDER

5BF-11351-00-00

Unavailable

30

NUT (1AE)

90179-06500-00

Unavailable

31

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

32

NUT, FLANGE (J10)

90179-08270-00

Unavailable

33

BOLT, SMALL FLANGE

95027-06040-00

Unavailable
